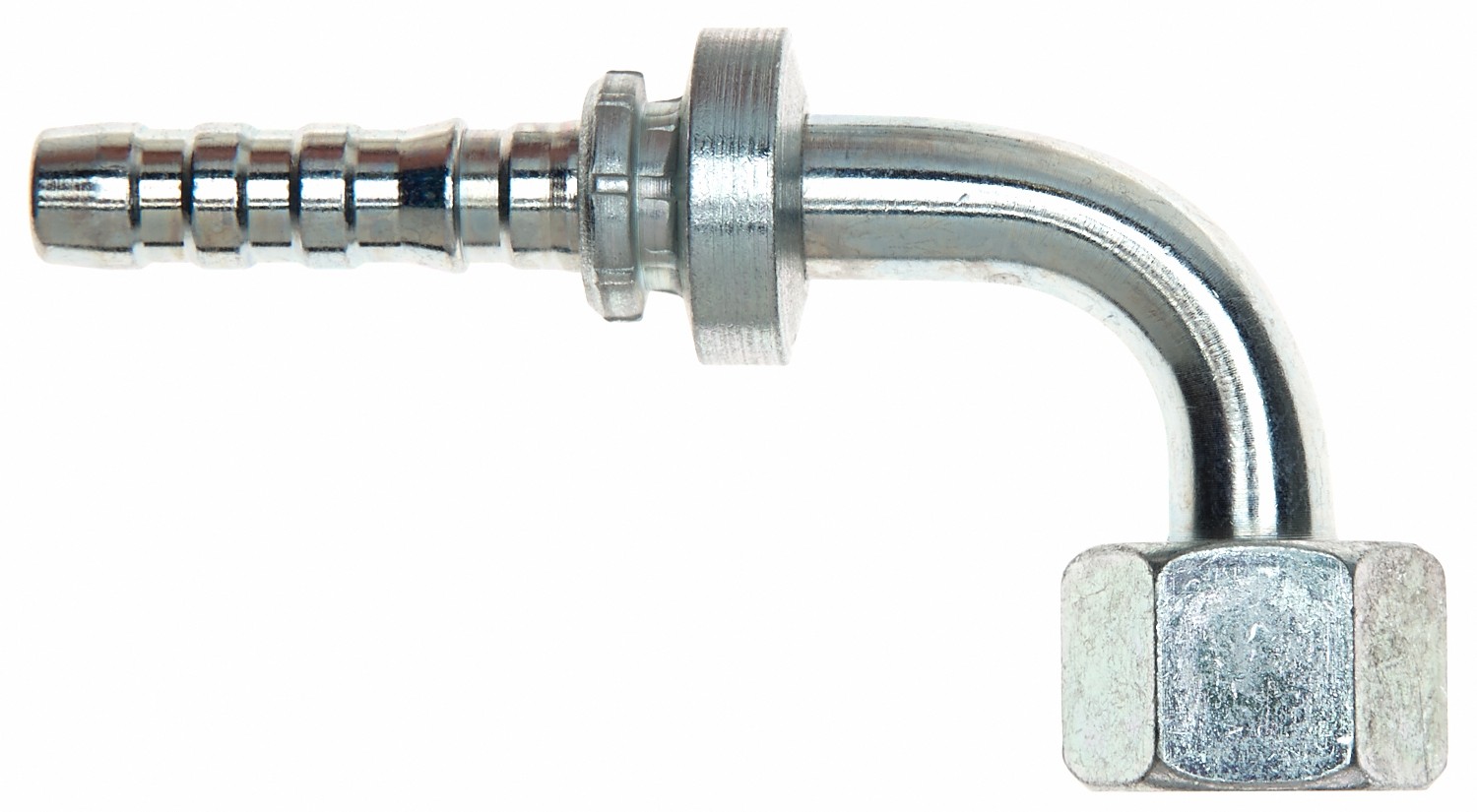

Gates G20655-1628 Female DIN 24 Cone Swvl-Light Series with O-Ring-90 Bent Tube (GlobalSpiral)

Gates G20655-1628 Female DIN 24 Cone Swvl-Light Series with O-Ring-90 Bent Tube (GlobalSpiral)

Features:

Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
“Bite-the-wire” crimp for improved coupling retention
Tested to an industry-leading 1,000,000 impulse cycles
+250?F temperature capability for longer assembly life

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2. MGS Couplings for use with MC4-20 Crimper Only.

Atributes:

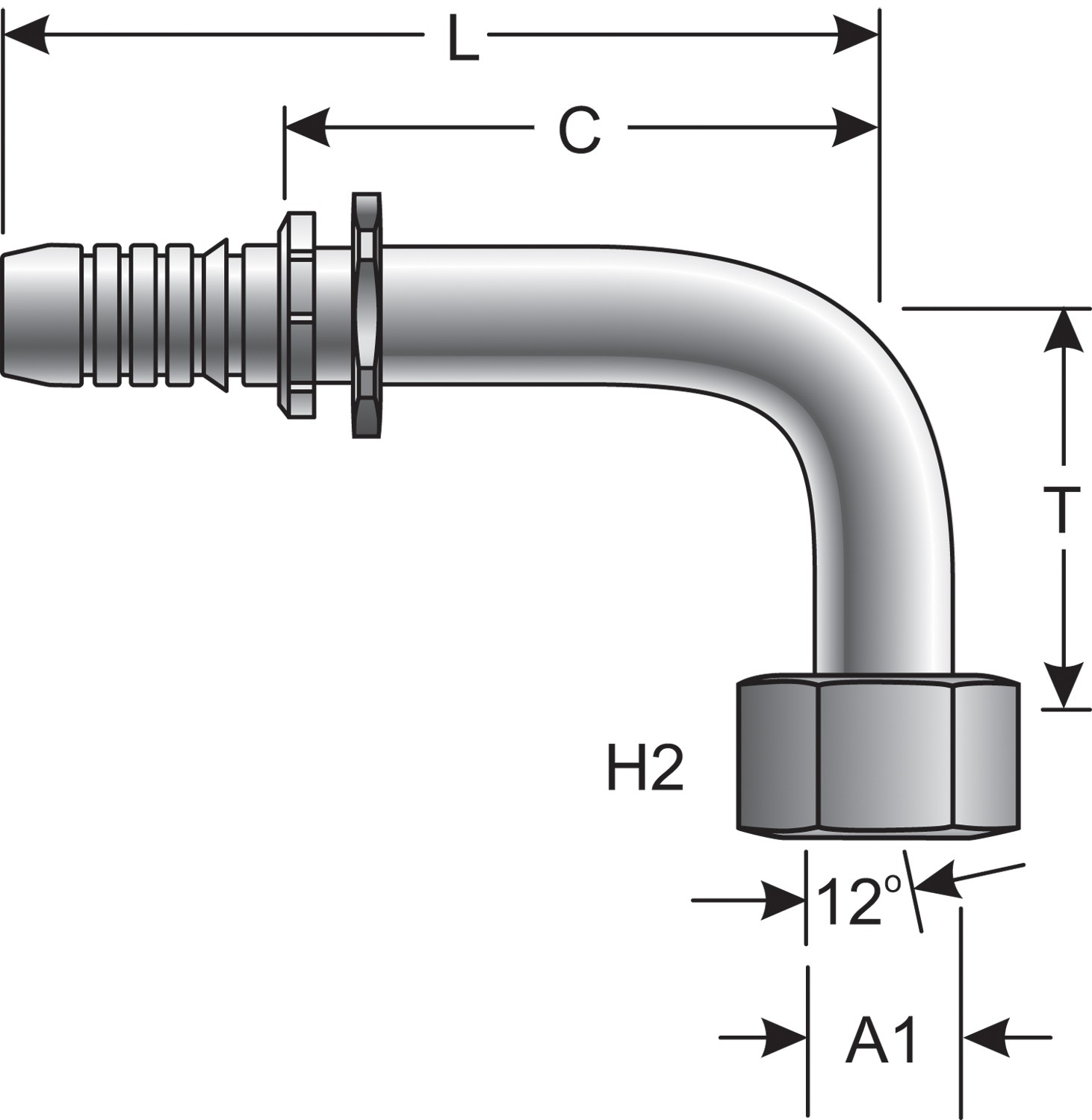

Length	5.82
Coupling Description	GlobalSpiral Female DIN 24 Cone Swivel – Light Series w/ O-Ring – 90 Bent Tube
Industrial Description	16GS-28FDLORX90
9952	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
9923	41
Thread Size	M36X2.0
Outside Diameter	28
Length	147.8
9929	94.6
9929	3.72
1874	70.1
1874	2.76
Inside Diameter	25.4
Inside Diameter	1
