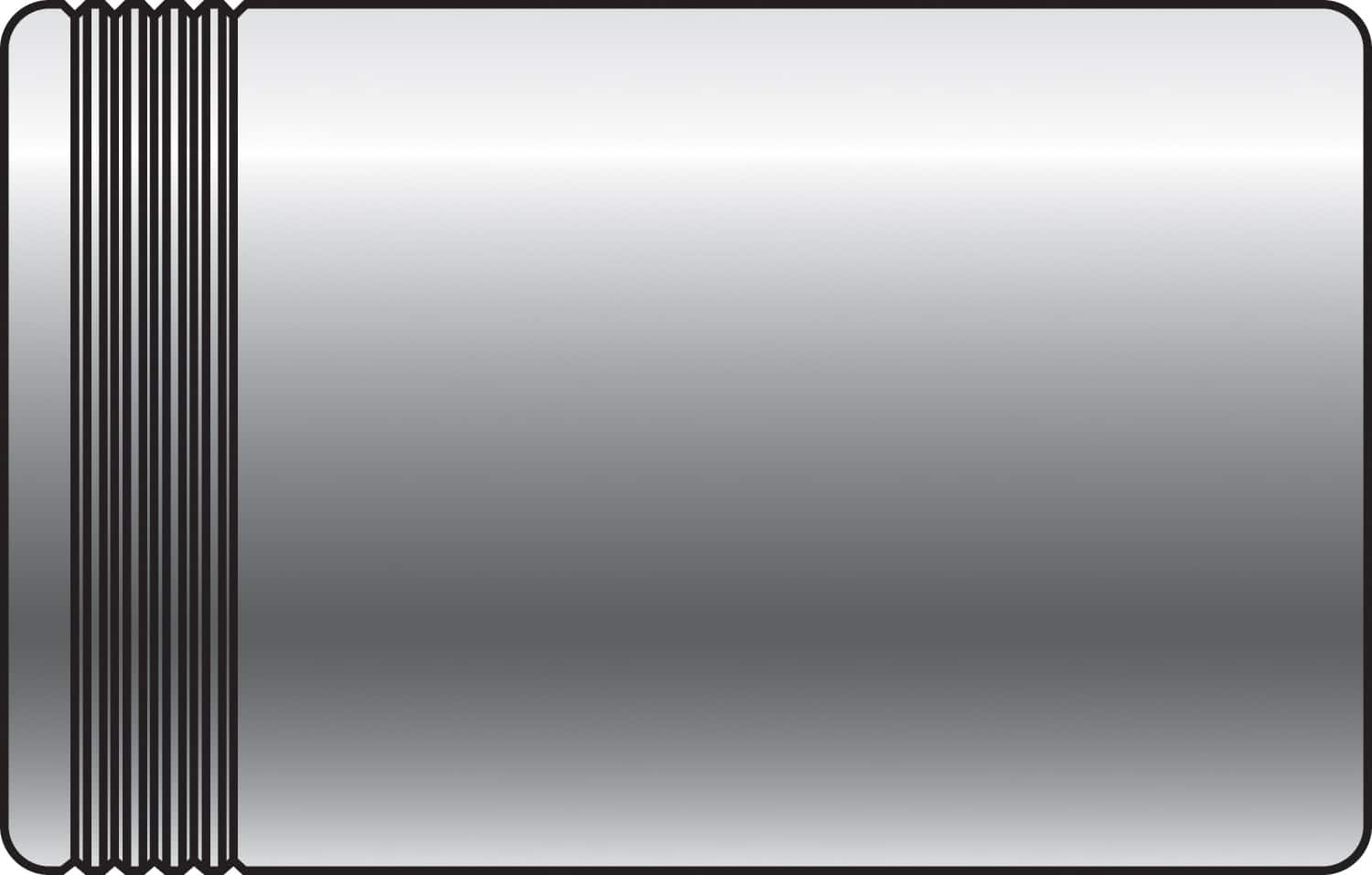

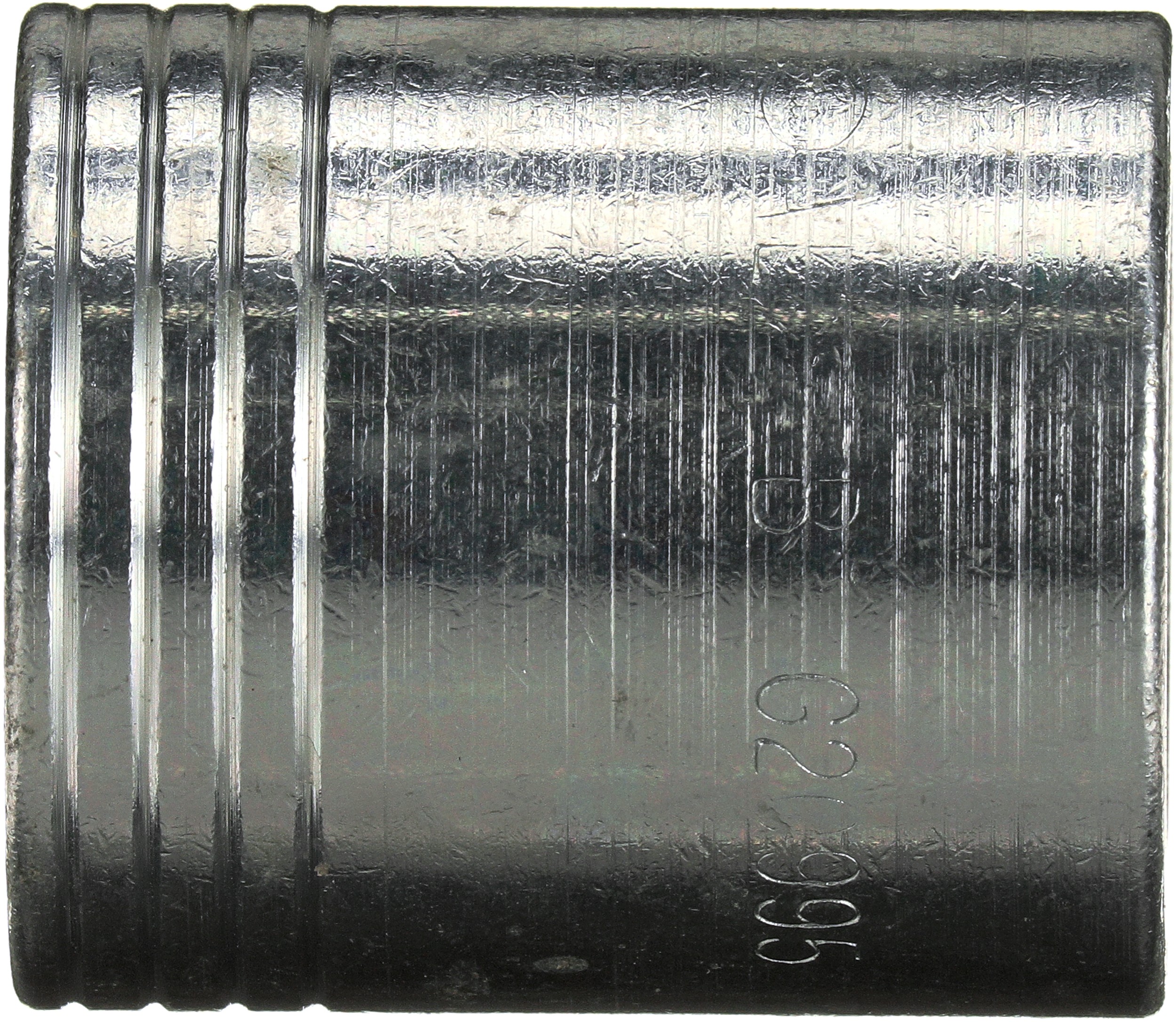

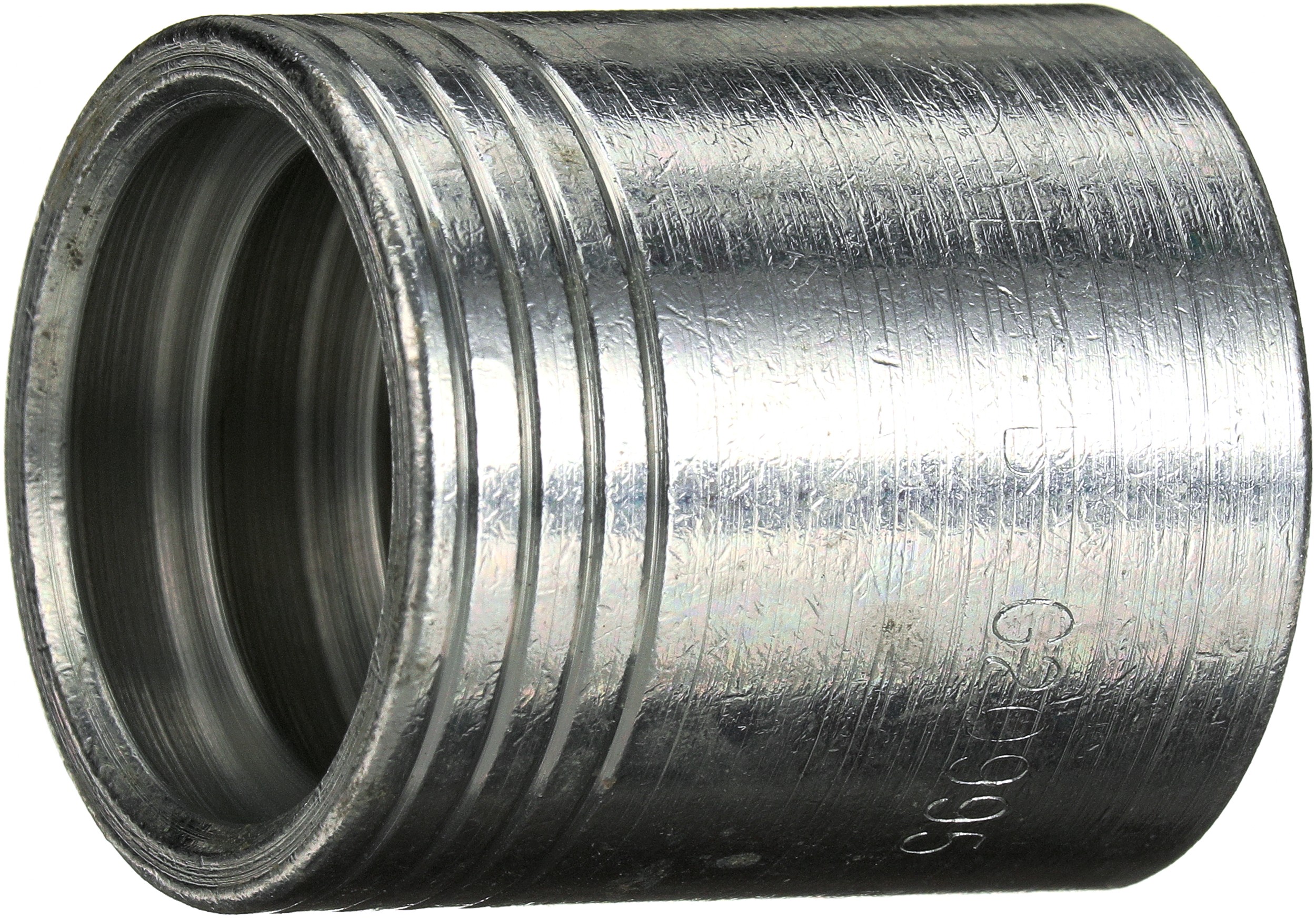

Gates G209950408 GS Ferrule for 4-Spiral Hose (GlobalSpiral)

Gates G209950408 GS Ferrule for 4-Spiral Hose (GlobalSpiral)

Features:

Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
â€œBite-the-wireâ€ crimp for improved coupling retention
Tested to an industry-leading 1,000,000 impulse cycles
+250 Deg. F temperature capability for longer assembly life

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ï¬‚uid power system.

Attributes:

Length	36.9
Outside Diameter	34.3
Outside Diameter	1.35
Inside Diameter	12.7
9952	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Inside Diameter	0.5
Coupling Description	GlobalSpiral GS Ferrule for 4-Spiral Hose
Industrial Description	8GS1F-4
Length	1.44
