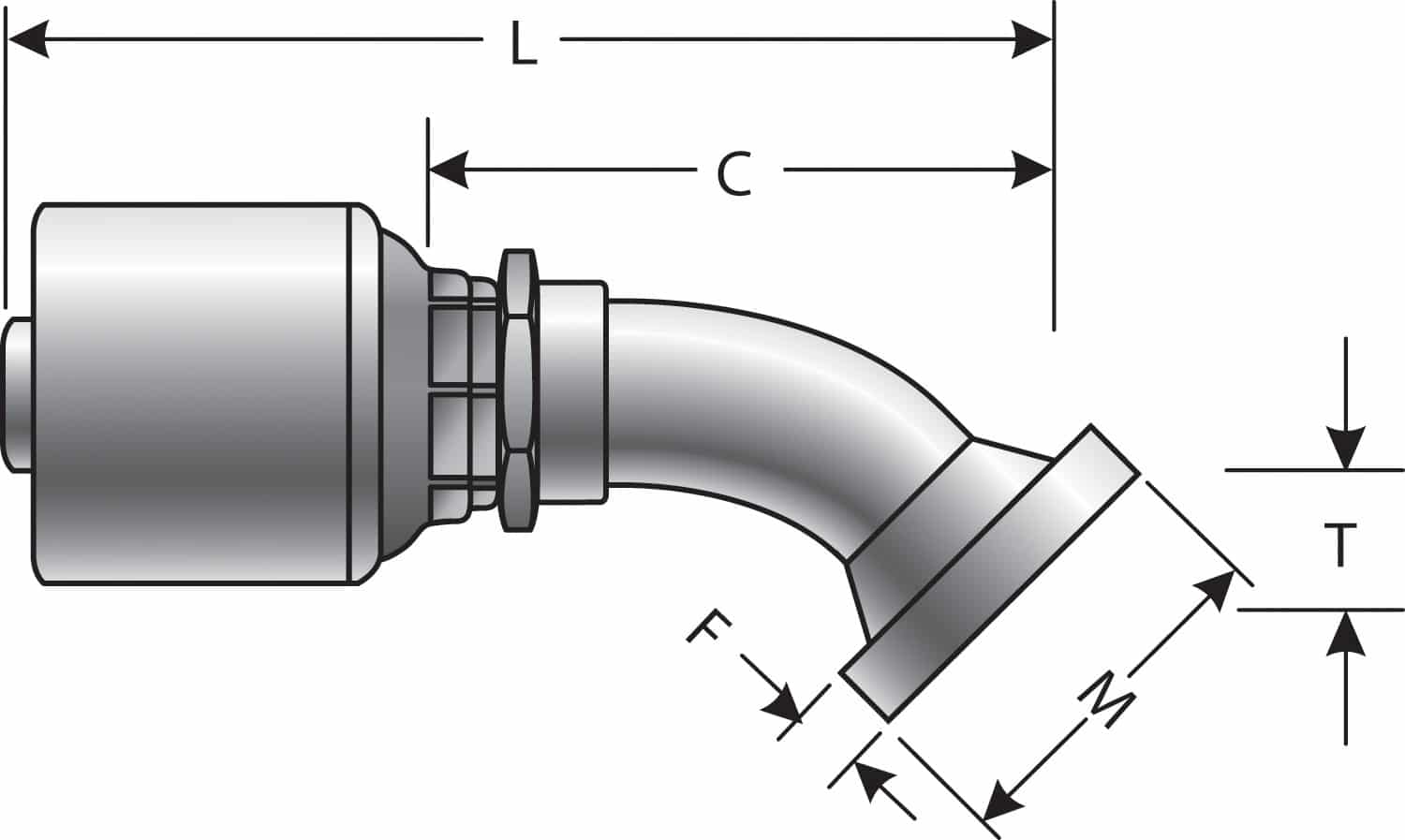

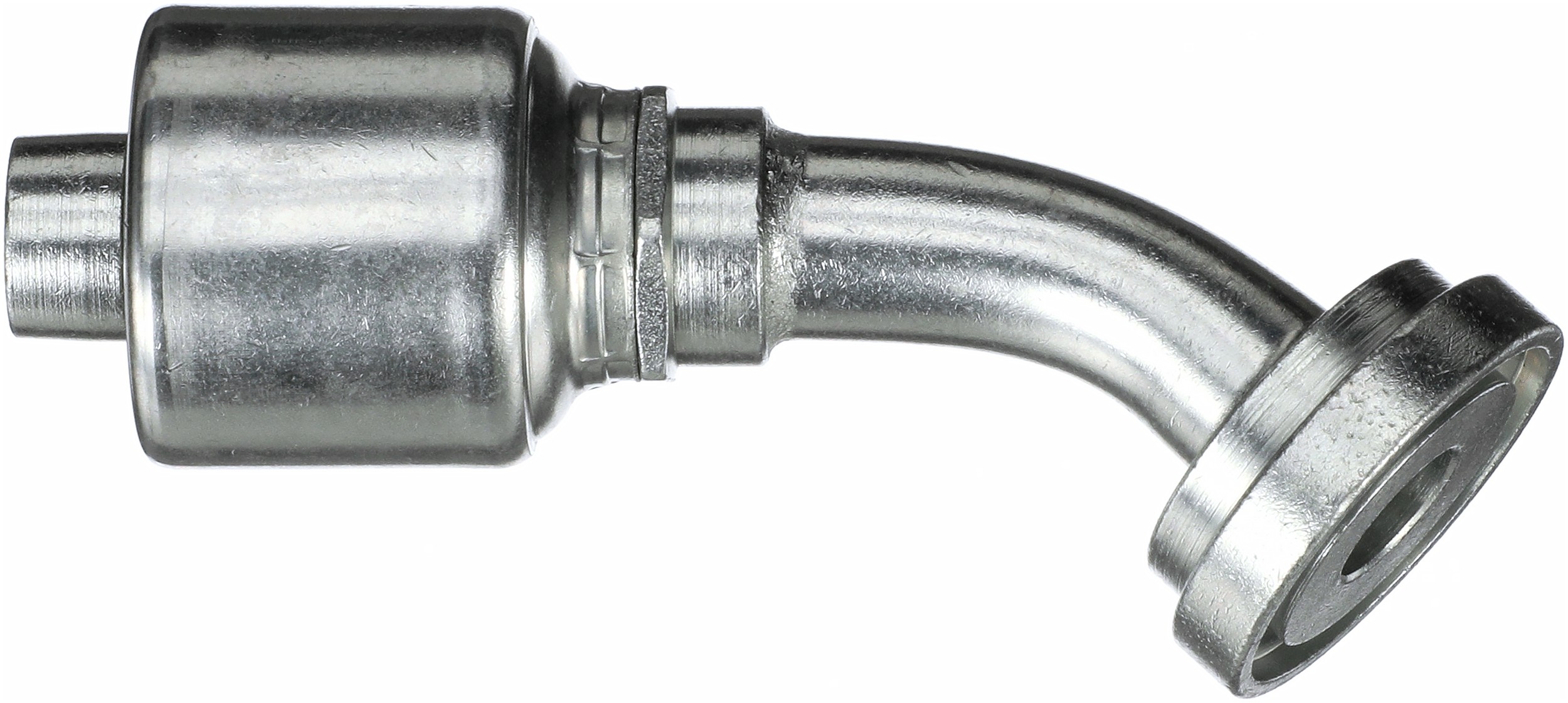

Gates G253061216 Code 61 O-Ring Flange – 45 Bent Tube (MegaCrimp)

Gates G253061216 Code 61 O-Ring Flange – 45 Bent Tube (MegaCrimp)

Features:

• Tested to an industry-leading 1 million impulse cycles
• Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
• Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
• Simplifies inventory management
• Robust “bite-the-wire” crimp

The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Attributes:
