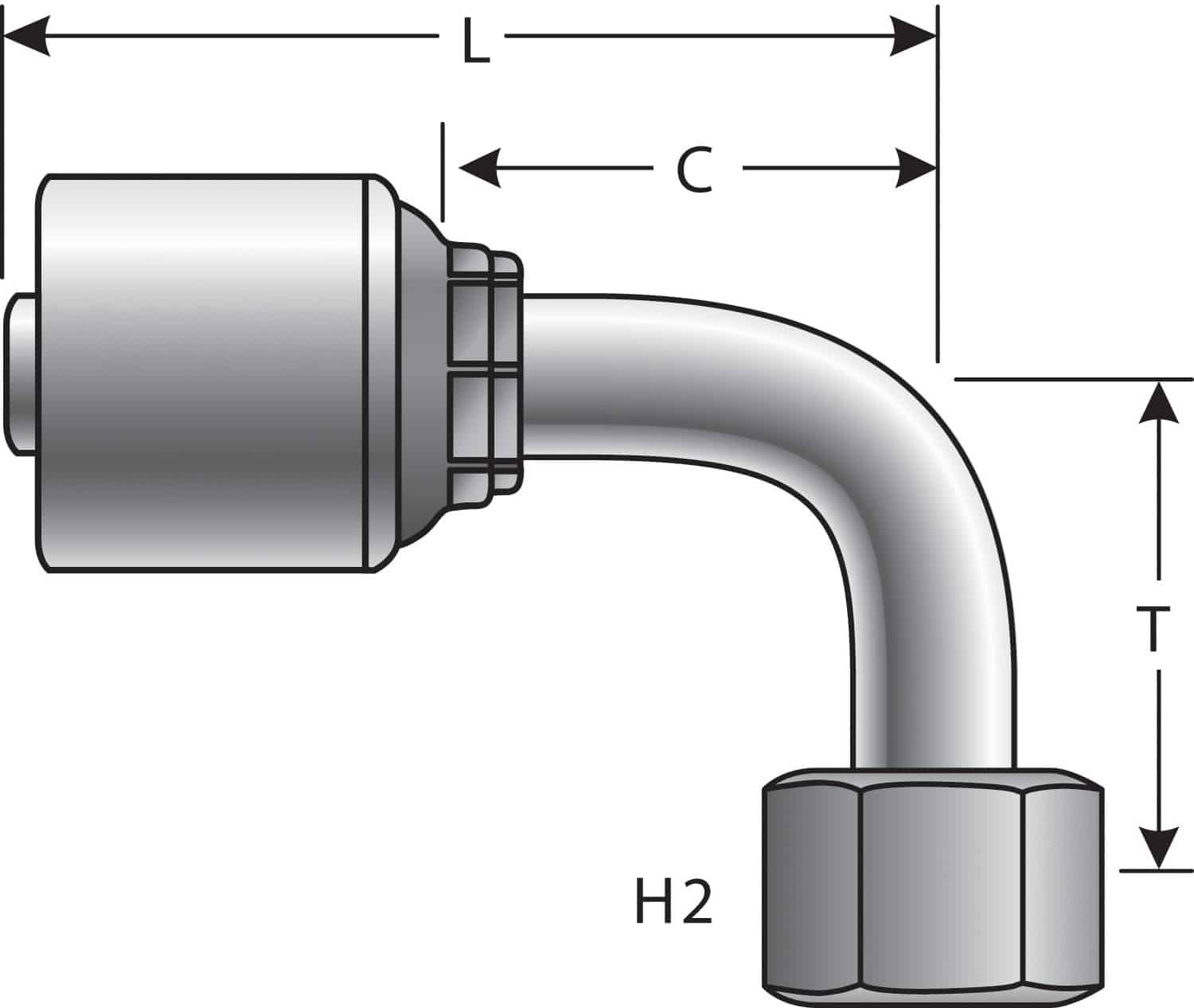

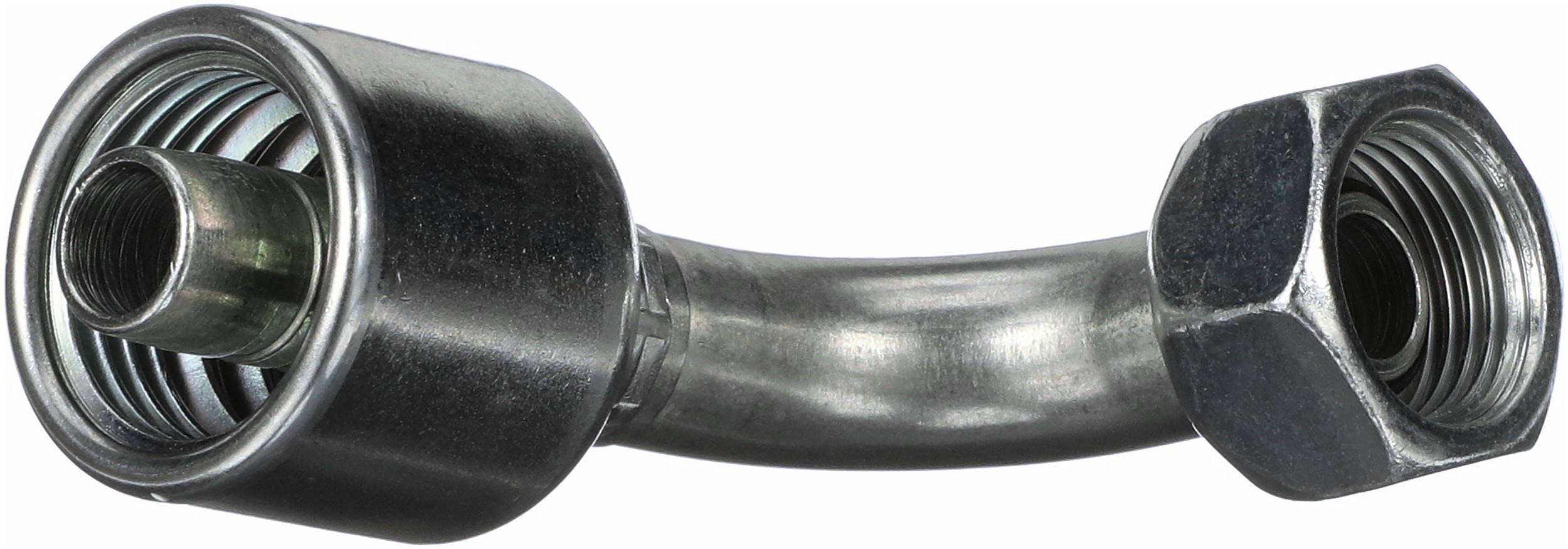

Gates G258320404 Female British Standard Parallel Pipe O-Ring Swivel – 90 Bent Tube (MegaCrimp)

£55.95

Availability: 11 in stock

- +

Gates G258320404 Female British Standard Parallel Pipe O-Ring Swivel – 90 Bent Tube (MegaCrimp)

Features:

  • Tested to an industry-leading 1,000,000 impulse cycles
  • Robust “bite-the-wire” crimp
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
  • Simplifies inventory management



The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Includes O-ring sealing in flare.



Attributes:

Length 49.4
Inside Diameter 6.4
Inside Diameter 0.25
Gender Female
Seal Type Mated Angle w/O-Ring
Coupling Description MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel – 90 Bent Tube
Industrial Description 4G-4FBSPORX90
9952 Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
9923 19
1874 0.93
1874 23.5
9929 1.06
9929 27
Termination British
9927 On Female w/Inverted Nose Seat
6665 30
9934 90
Swivel Yes
Thread Size 01/04/2019
Length 1.94
Weight 0.072 kg
