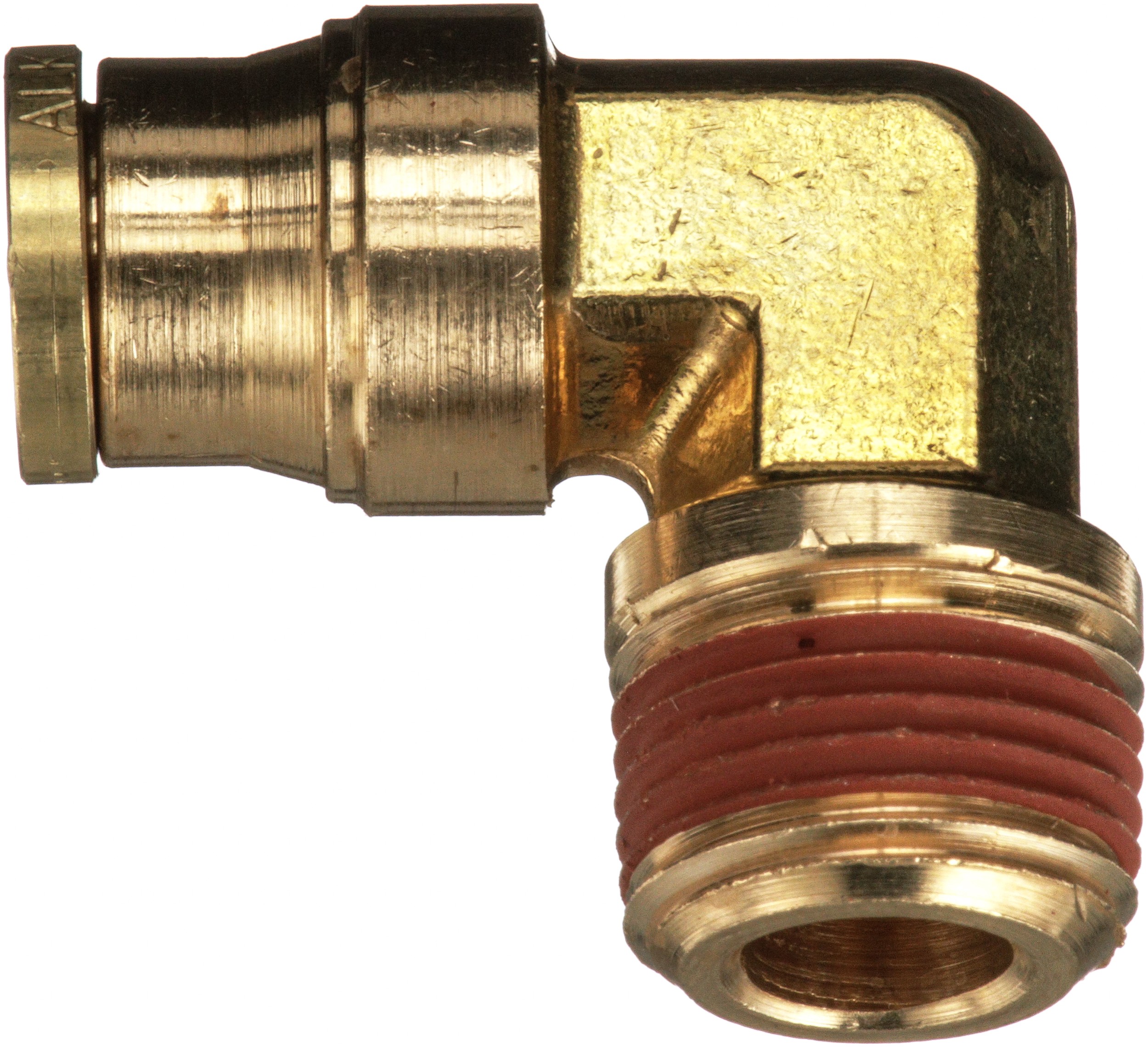

Gates G31104-0806 Air Brake to Male Pipe – 90 (SureLok)

Gates G31104-0806 Air Brake to Male Pipe – 90 (SureLok)

Features:

Internal O-Ring provides a seal and necessary interference between tube and fitting body
Collet teeth grip the tube, holding it firmly in the fitting
Tube support prevents tube collapse during severe loading conditions
Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring

Recommended for air brake systems â€“ compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).

Attributes:

Outside Diameter	0.5
Length	32
Maximum Working Pressure	150
Length	1.26
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
1874	1.14
Coupling Description	SureLok Air Brake to Male Pipe – 90
Seal Material	Ethylene Propylene
Thread Size	03/08/2018
1874	29
Industrial Description	8AB-6MP90
9924	22
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Material	360 Brass
