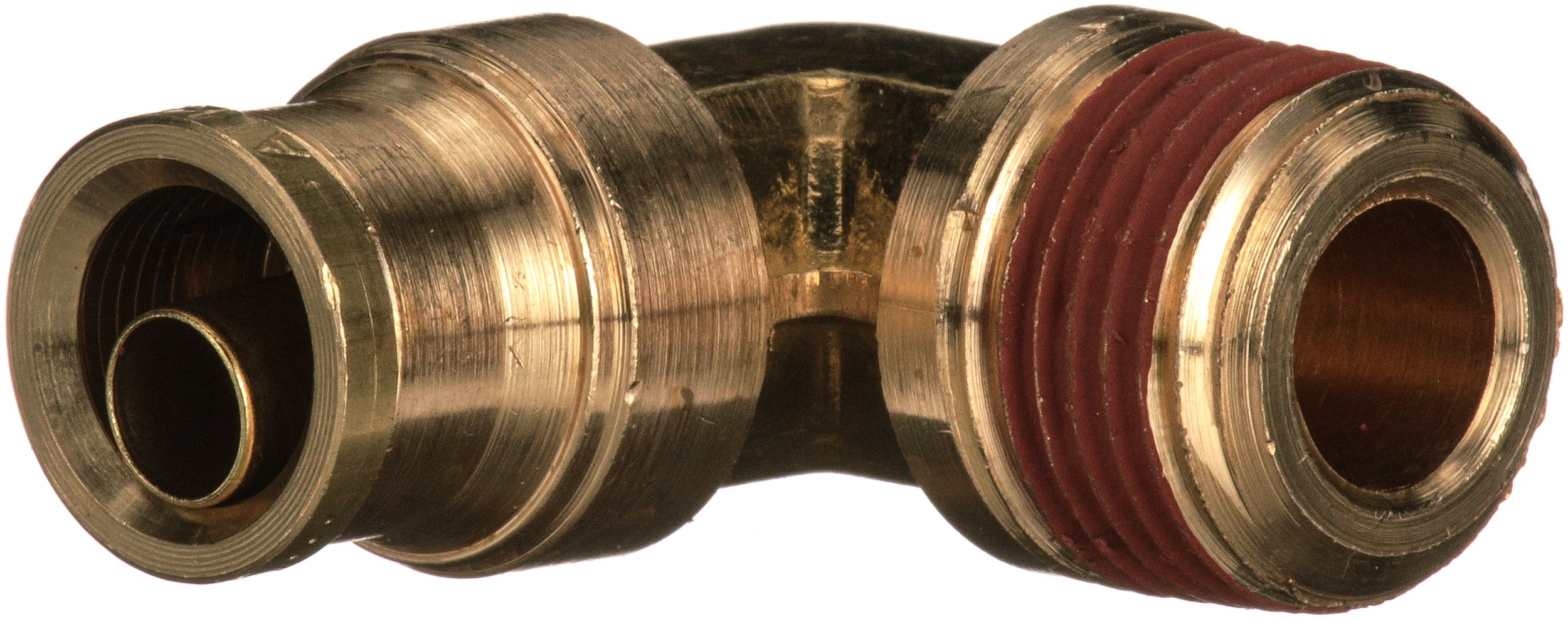

Gates G311040808 Air Brake to Male Pipe – 90 (SureLok)

Gates G311040808 Air Brake to Male Pipe – 90 (SureLok)

Features:

Internal O-Ring provides a seal and necessary interference between tube and fitting body
Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
Tube support prevents tube collapse during severe loading conditions
Collet teeth grip the tube, holding it firmly in the fitting

Recommended for air brake systems â€“ compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).

Attributes:

Maximum Working Pressure	150
1874	1.38
Seal Material	Ethylene Propylene
9924	24
Industrial Description	8AB-8MP90
Coupling Description	SureLok Air Brake to Male Pipe – 90
Outside Diameter	0.5
1874	35.1
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Thread Size	01/02/2014
Material	360 Brass
Length	1.28
Length	32.5
