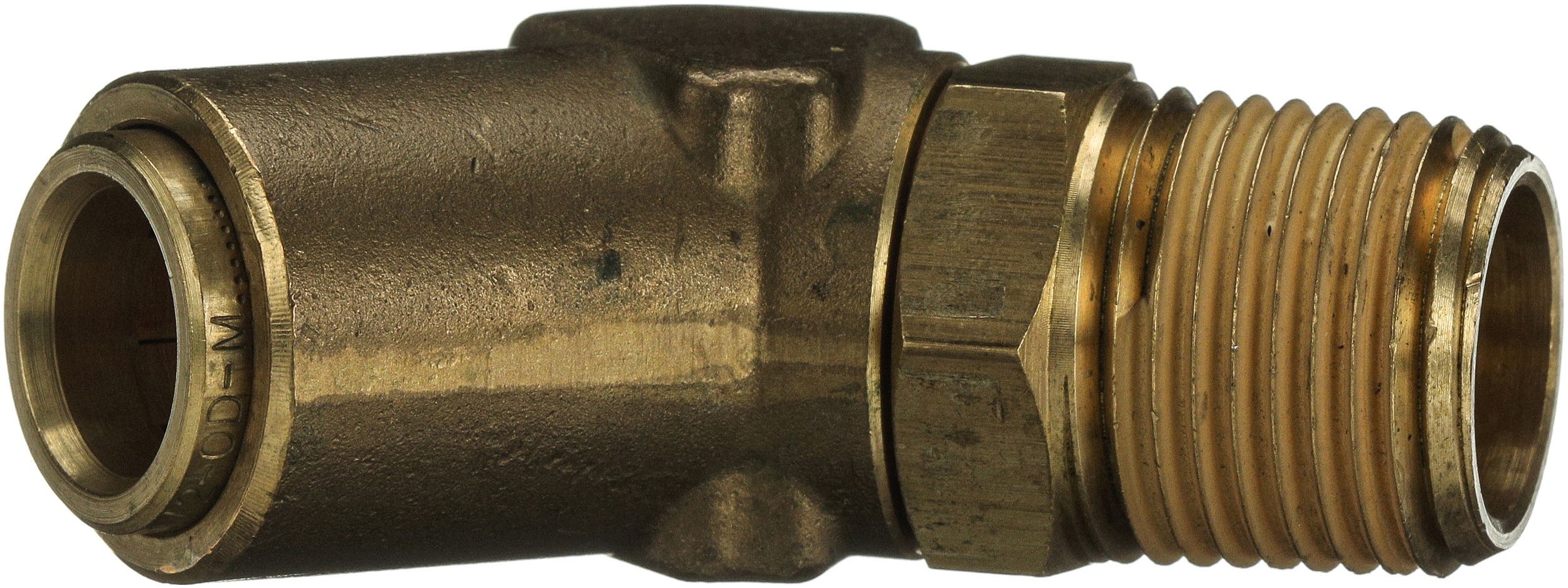

Gates G31122-0808 Air Brake to Male Pipe Swivel – 45 (SureLok)

Gates G31122-0808 Air Brake to Male Pipe Swivel – 45 (SureLok)

Features:

Collet teeth grip the tube, holding it firmly in the fitting
Tube support prevents tube collapse during severe loading conditions
Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
Internal O-Ring provides a seal and necessary interference between tube and fitting body

Recommended for air brake systems – compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).

Atributes:

Thread Size	1/2-14
9923	.875
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Material	360 Brass
Length	1.25
Length	31.8
1874	41.2
Industrial Description	8AB-8MPX45
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Maximum Working Pressure	150
1874	1.62
Coupling Description	SureLok Air Brake to Male Pipe Swivel – 45
Seal Material	Ethylene Propylene
Outside Diameter	.5
