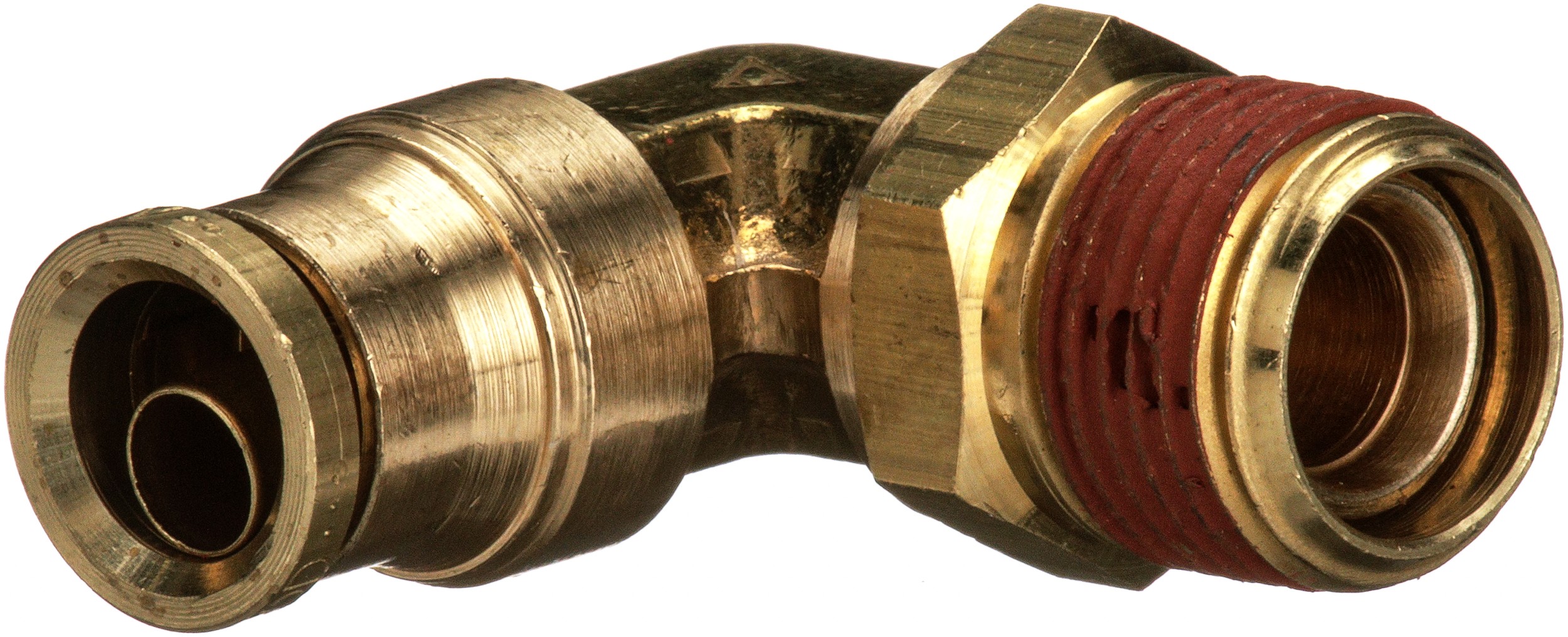

Gates G311240808 Air Brake to Male Pipe Swivel – 90 (SureLok)

Gates G311240808 Air Brake to Male Pipe Swivel – 90 (SureLok)

Features:

Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
Tube support prevents tube collapse during severe loading conditions
Collet teeth grip the tube, holding it firmly in the fitting
Internal O-Ring provides a seal and necessary interference between tube and fitting body

Recommended for air brake systems â€“ compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).

Attributes:

Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Length	32.3
Thread Size	01/02/2014
1874	1.62
Outside Diameter	0.5
9923	22
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Material	360 Brass
1874	41.2
Seal Material	Ethylene Propylene
9924	24
Length	1.27
Industrial Description	8AB-8MPX90
Coupling Description	SureLok Air Brake to Male Pipe Swivel – 90
Maximum Working Pressure	150
