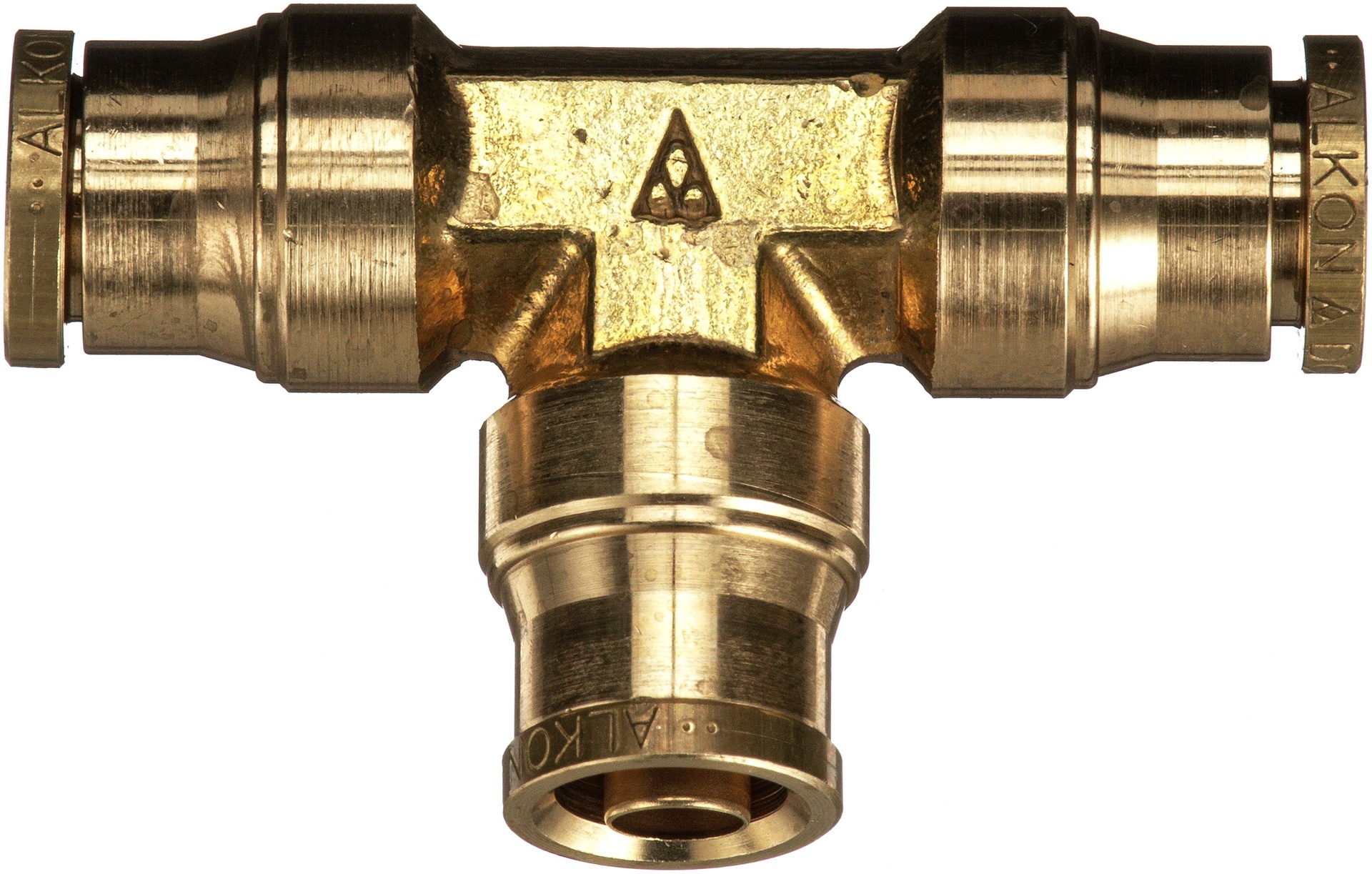

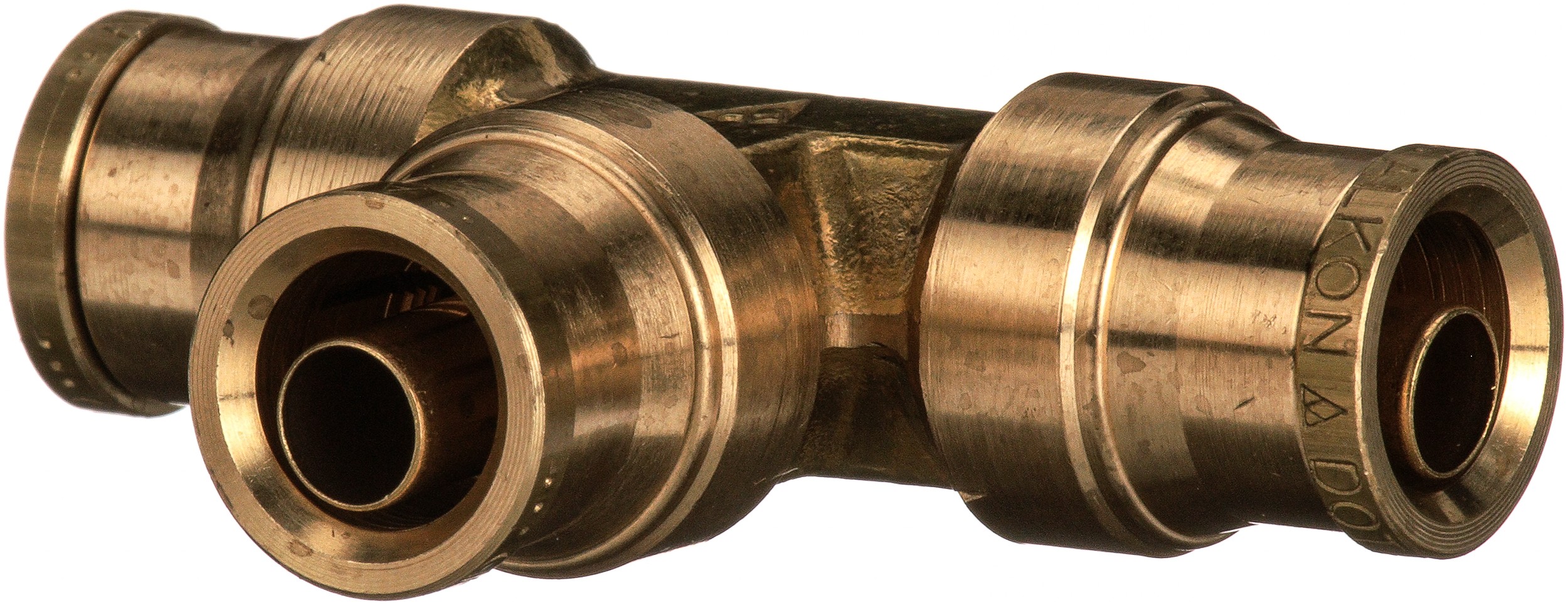

Gates G314500202 Air Brake Union – Tee (SureLok)

Gates G314500202 Air Brake Union – Tee (SureLok)

Features:

Collet teeth grip the tube, holding it firmly in the fitting
Tube support prevents tube collapse during severe loading conditions
Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
Internal O-Ring provides a seal and necessary interference between tube and fitting body

Recommended for air brake systems â€“ compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).

Attributes:

Outside Diameter	0.125
Outside Diameter	0.125
Seal Material	Ethylene Propylene
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Product Note	Not D.O.T. Certified Nor Recognized for Air Brake Systems
1874	16
1874	0.63
Industrial Description	2AB-2AB-2AB
Length	32
Length	1.26
Coupling Description	SureLok Air Brake Union – Tee
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Material	360 Brass
Maximum Working Pressure	150
Outside Diameter	0.125
