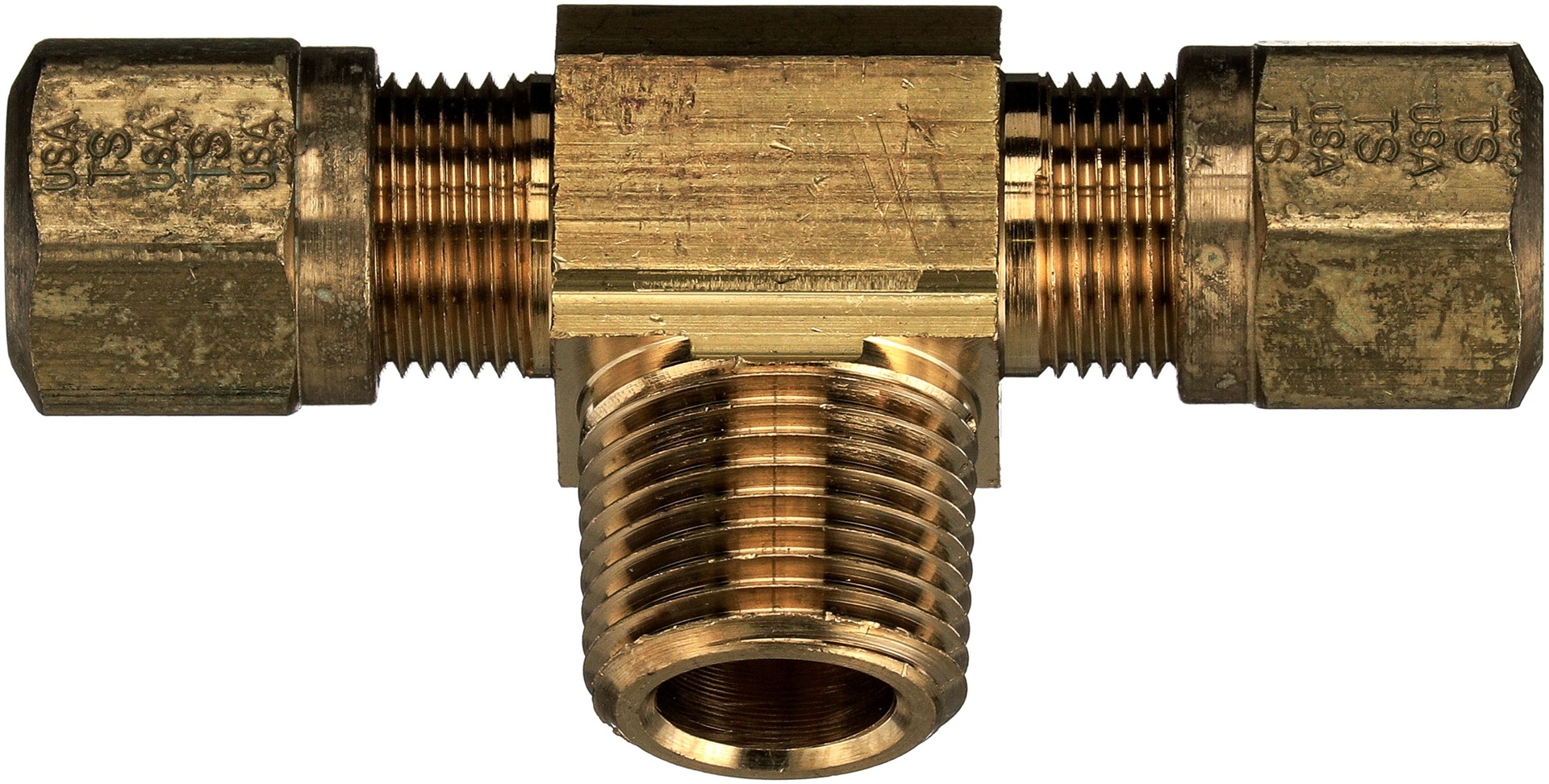

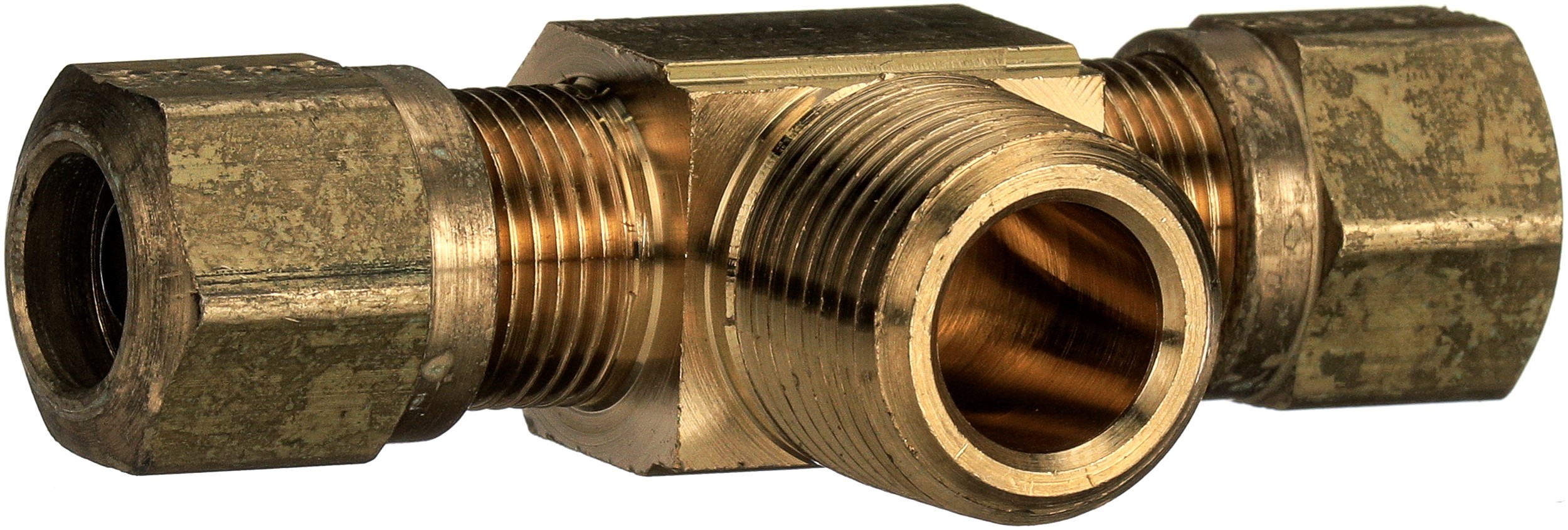

Gates G321340402 Air Brake Branch Tee to Male Pipe (Nylon Tubing Compression)

Gates G321340402 Air Brake Branch Tee to Male Pipe (Nylon Tubing Compression)

Features:

Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Meets DOT FMVSS 571.106, SAE J246, SAE J1131, DIN 74324 and German TUV requirements
For use with SAE J844 and DIN 74324 nylon tubing

Recommended for use in air brake systems – compressed air for suspension, steering, engine transmission or other onboard vehicle applications. For use as a connector on all air brake systems at locations other than between chassis frame and axle or between towed and towing vehicle. Easy to assemble – field serviceable fitting consists of four component parts.

Attributes:

Industrial Description	4ABC-4ABC-2MP
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Maximum Working Pressure	150
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Material	360 Brass
Outside Diameter	0.25
Thread Size	01/08/2027
Thread Size	7/16-24
Thread Size	7/16-24
Outside Diameter	0.25
Coupling Description	Nylon Tubing Compression Air Brake Branch Tee to Male Pipe
