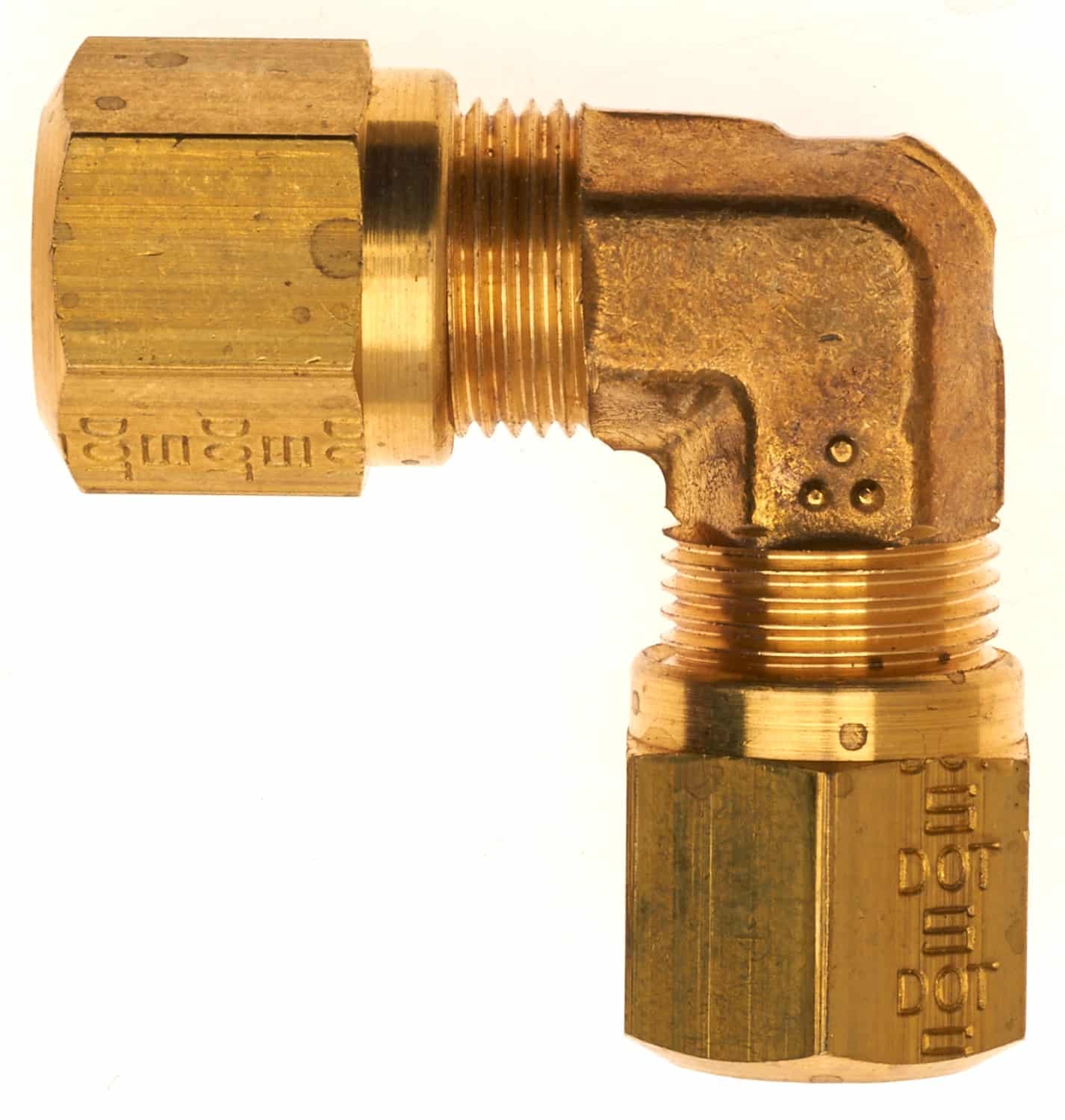

Gates G324040808 Air Brake Union – 90 (Nylon Tubing Compression)

Gates G324040808 Air Brake Union – 90 (Nylon Tubing Compression)

Features:

Meets DOT FMVSS 571.106, SAE J246, SAE J1131, DIN 74324 and German TUV requirements
For use with SAE J844 and DIN 74324 nylon tubing
Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)

Recommended for use in air brake systems – compressed air for suspension, steering, engine transmission or other onboard vehicle applications. For use as a connector on all air brake systems at locations other than between chassis frame and axle or between towed and towing vehicle. Easy to assemble – field serviceable fitting consists of four component parts.

Attributes:

Outside Diameter	0.5
Outside Diameter	0.5
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Coupling Description	Nylon Tubing Compression Air Brake Union – 90
Industrial Description	8ABC-8ABC90
Thread Size	11/16-20
Thread Size	11/16-20
Material	360 Brass
Maximum Working Pressure	150
