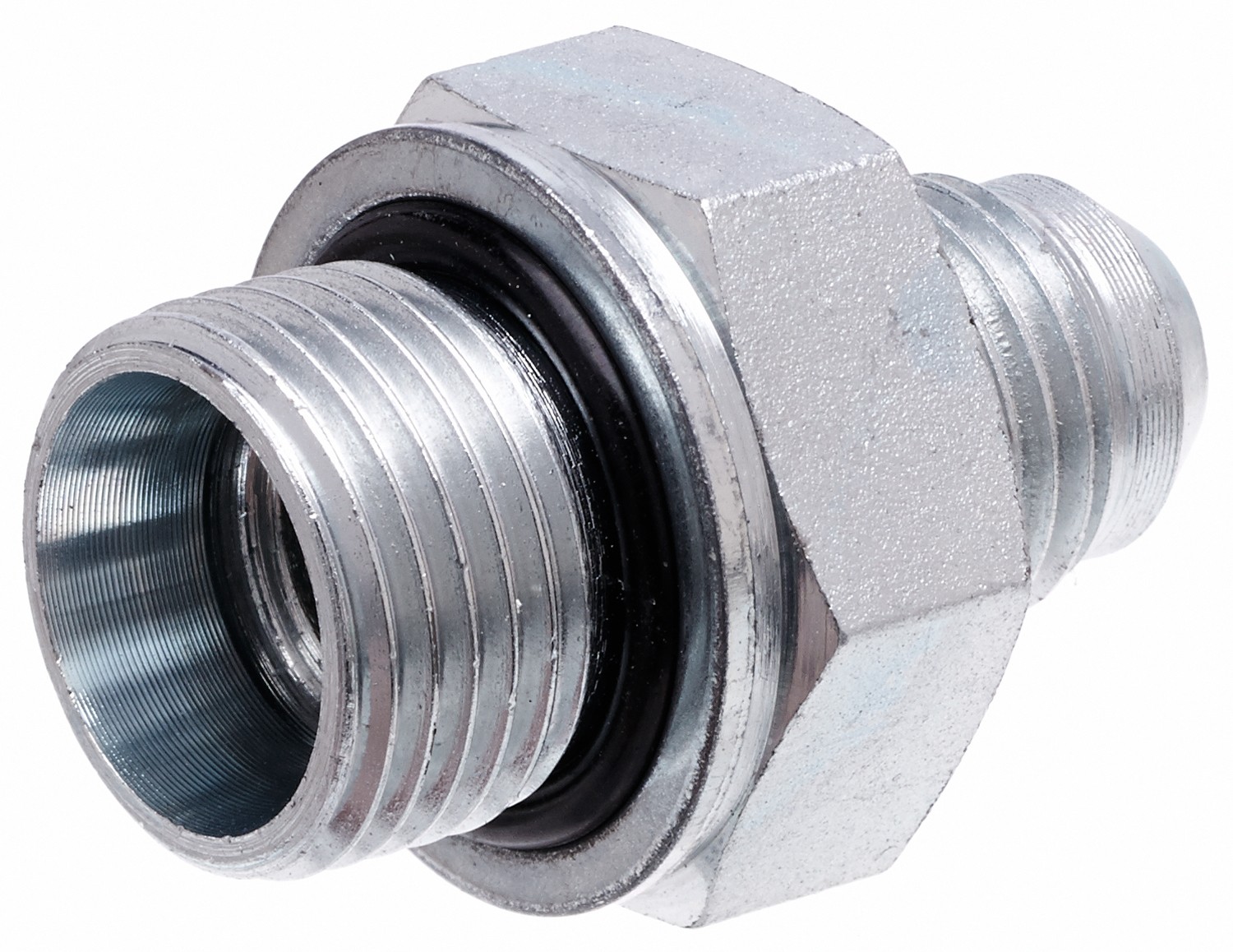

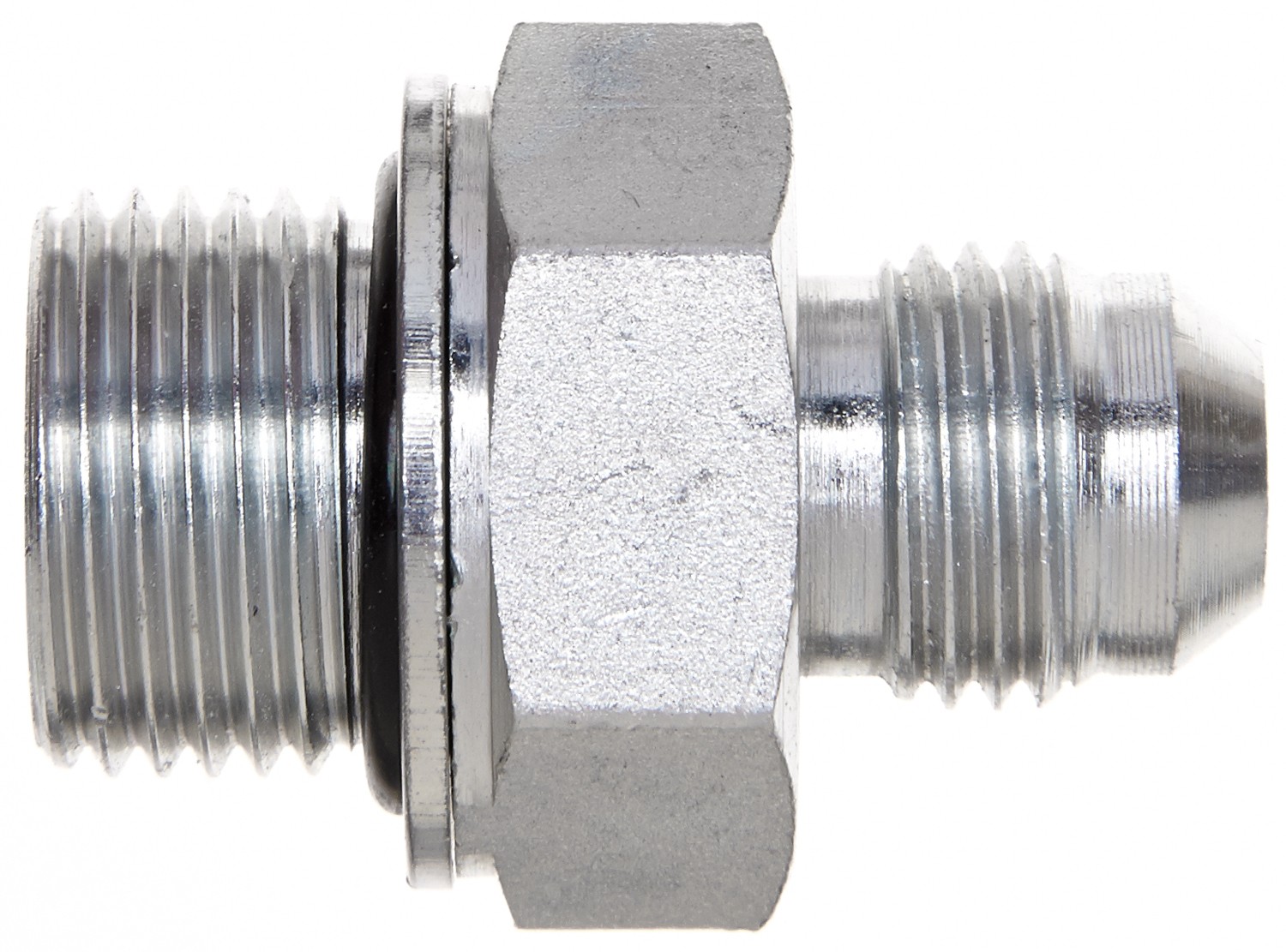

Gates G63350-1508 Male DIN 24 Cone - Light Series to Male JIC 37 Flare (Metric Conversion)

Gates G63350-1508 Male DIN 24 Cone – Light Series to Male JIC 37 Flare (Metric Conversion)

Features:

Flange adapters rated to 6000 psi for replacing bent tube assemblies with standard stock couplings
Available in the following configuration: SAE to SAE, British to SAE, Metric to SAE, International to International, Metric Conversion and Japanese Conversion
Conforms to SAE and ASME specifications (rated to SAE 100R2 pressure maximum)

Gates hydraulic adapters allow for easy assembly on medium, high, very high and extremely high pressure hose.

Attributes:

Thread Size	M22X1.5
Adapter Description	Male DIN 24 Cone – Light Series to Male JIC 37 Flare
Industrial Description	15MDL-8MJ
Adapter Type	Metric Conversion
Thread Size	3/4-16
