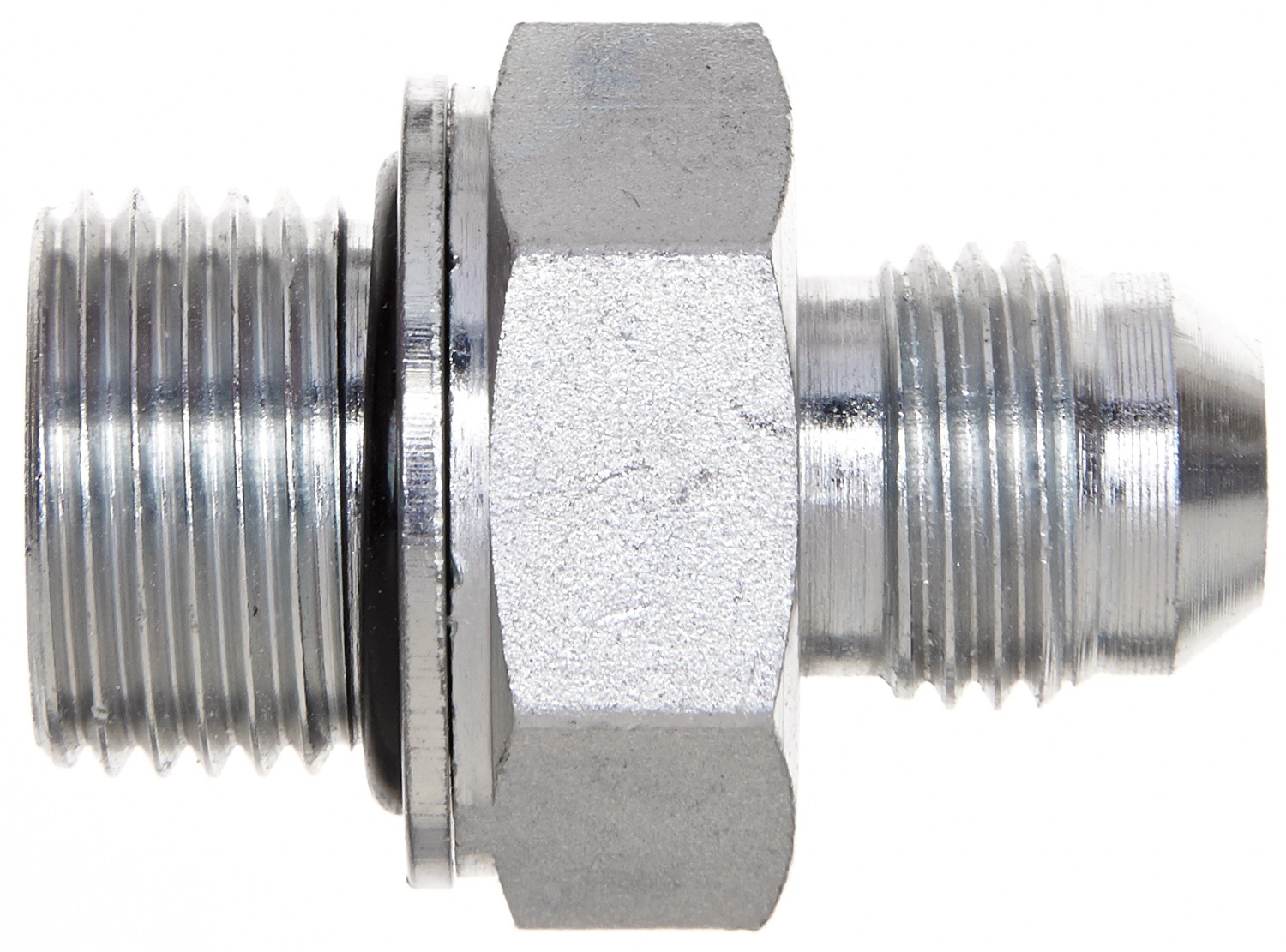

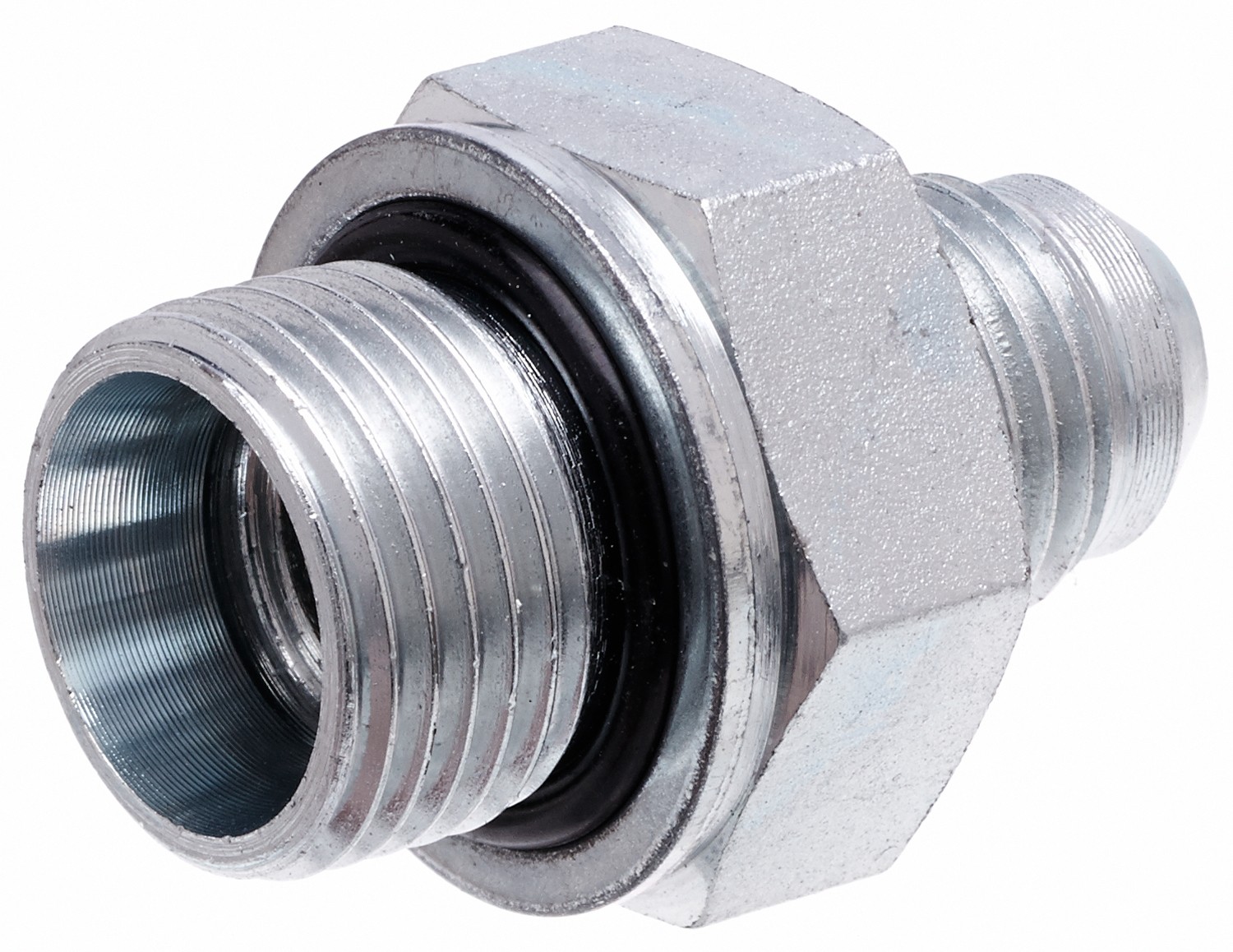

Gates G63350-2816 Male DIN 24 Cone - Light Series to Male JIC 37 Flare (Metric Conversion)

Gates G63350-2816 Male DIN 24 Cone – Light Series to Male JIC 37 Flare (Metric Conversion)

Features:

Available in the following configuration: SAE to SAE, British to SAE, Metric to SAE, International to International, Metric Conversion and Japanese Conversion
Conforms to SAE and ASME specifications (rated to SAE 100R2 pressure maximum)
Flange adapters rated to 6000 psi for replacing bent tube assemblies with standard stock couplings

Gates hydraulic adapters allow for easy assembly on medium, high, very high and extremely high pressure hose.

Attributes:

Adapter Type	Metric Conversion
Industrial Description	28MDL-16MJ
Thread Size	1 5/16-12
Adapter Description	Male DIN 24 Cone – Light Series to Male JIC 37 Flare
Thread Size	M36X2.0
