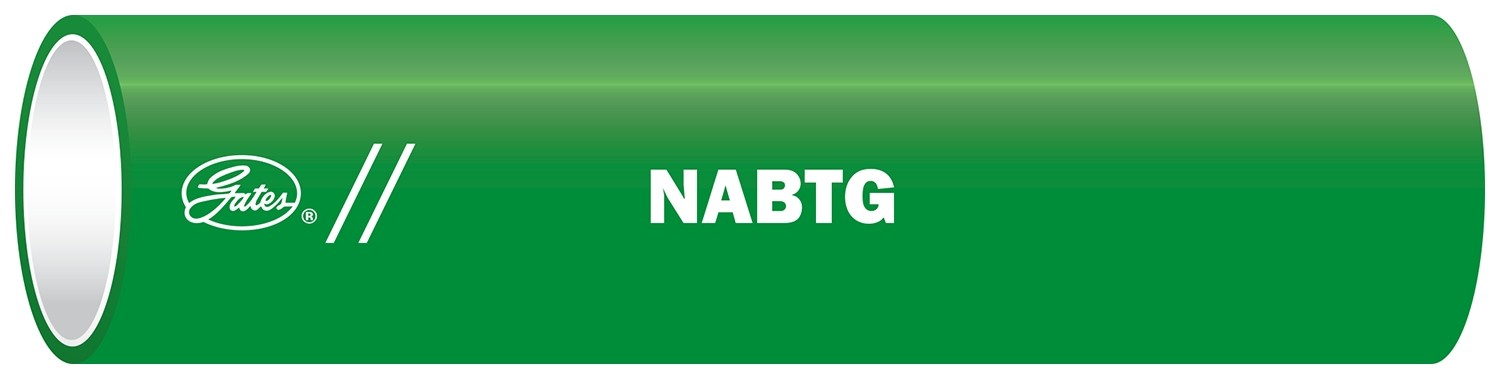

Gates H30042-04 Nylon Air Brake Tubing (Nylon Tubing Compression)

Gates H30042-04 Nylon Air Brake Tubing (Nylon Tubing Compression)

Features:

• Type A: Non-reinforced in sizes 1/8 in., 5/32 in., 3/16 in., and 1/4 in. (use for service lines only)
• Nylon cover available in black (NABTA), blue (NABTB), green (NABTG), red (NABTR), yellow (NABTY) and orange (NABTO) colors. Other colors available upon request
• For use with Gates DOT SureLok (G31 Series) or Gates DOT compression (G32 Series) couplings
• Heat- and light-stabilized seamless extruded nylon tube
• NOTE: Sizes 1/8 in. and 5/32 in. are NOT recognized by D.O.T. for air brake systems. These are for service lines only
• Type B: Reinforced with one open ply of fibrous nylon in sizes 5/16 in., 3/8 in., 1/2 in., 5/8 in. and 3/4 in.
• Conforms to SAE J844 specifications. Meets D.O.T. FMVSS 106
• For straight cuts use Small Nylon Tube Cutter (Part Number 78015) reference in the Professional-Grade Tools Section
• Temperature rating: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)

Gates Nylon Air Brake Tubing is recommended for truck, bus and mobile air brake, and service lines where heat and battery acids are not present.

Attributes:
