HOL-12-173 Holley Dual 450 LPH In-tank Retrofit Fuel Module w/Rreturn

HOL-12-173 HOLLEY DUAL 450 LPH IN-TANK RETROFIT FUEL MODULE W/RETURN

Dual 450 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports up to 1700 EFI or 2200 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 34 AMP Draw)

Features

• Billet, anodized, laser etched flanges with 8AN ORB Return/Outlet and 6AN ORB vent
• The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit
• The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
• Easy install – just drill a 4” hole in the top of the tank then use hand tools
• E85 compatible
• The dual pump design allows the pumps to be ran together or the second pump can be triggered additionally when you need it (Hobbs switch, Holley EFI auxiliary pump circuit, etc…)
• Units install in tanks from 7” – 12” deep

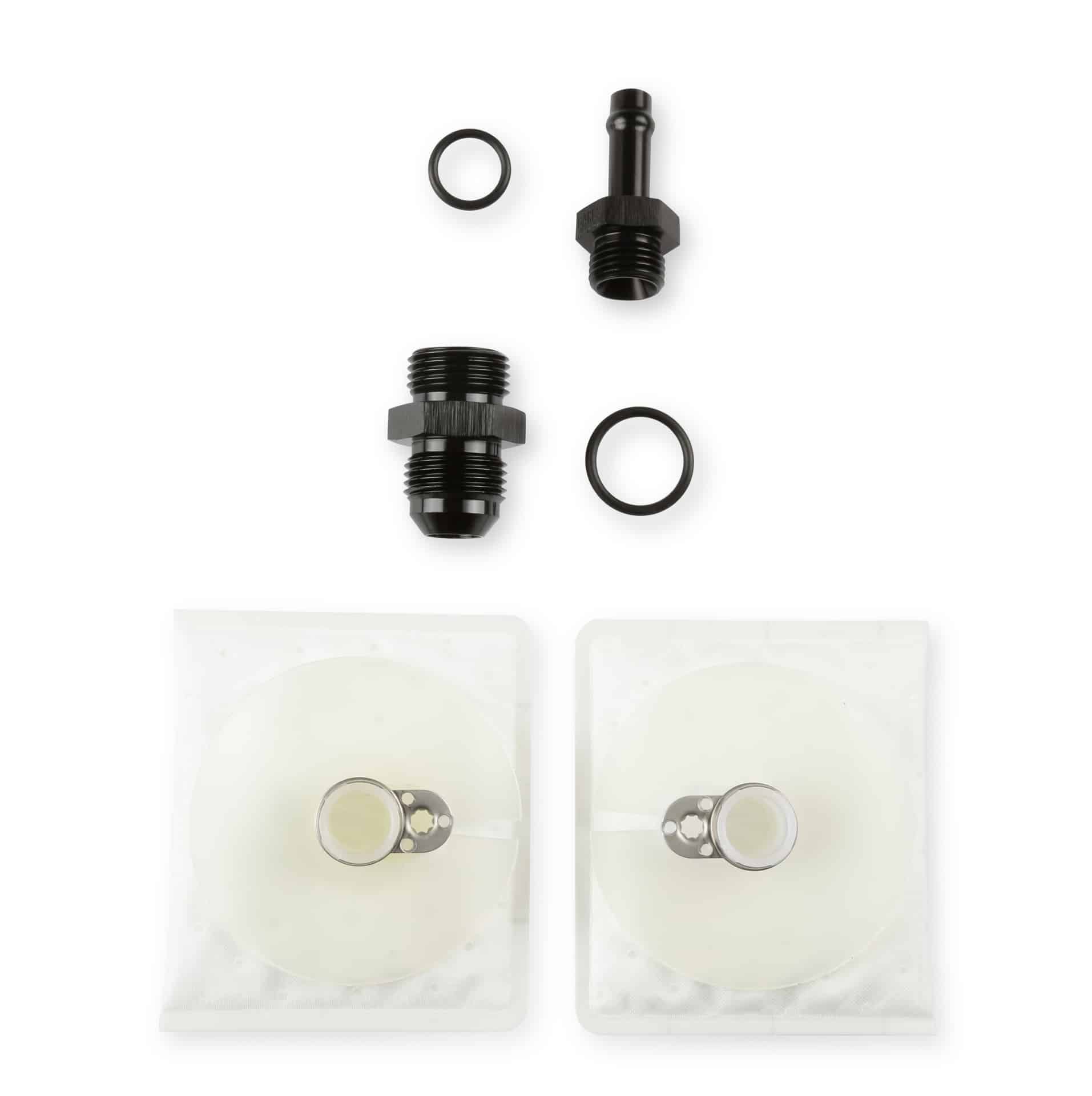

• Filter socks included, Hydramats can be purchased separately
• Easily wire with an MSD High Current Solid State Relay (75643, 75643-HC, 7564, 7564-HC) or dual relay kit (12-759)

Carburetor

 (Gas, 13.5V, 60 PSI) – 1750 HP

Looking to make a serious step up in the horsepower department? The Holley Dual 450 LPH EFI Pump Module would be an excellent choice. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator.

The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit. The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride.

12-173 – Twin 450 LPH – 34A @ 60 PSI, 30A @ 10 PSI

EFI

 (E85, 13.5V, 60 PSI) – 1250 HP

 (Gas, 13.5V, 10 PSI) – 2200HP

 (E85, 13.5V, 10 PSI) – 1550 HP
