HOL-241-175 Holley 2-Piece “Chevrolet” Script Valve Cover – Gen III/IV LS – Natural
Chevrolet Gen III/IV LS – Cast Aluminum – Coil-Mounting Base & Integrated Coil Cover
Features
- Includes all necessary coil mounting and dress-up hardware
- Includes low-profile billet oil fill cap
- No coil relocation, wire harness extensions, or custom spark plug wires required
- Base features internally baffled ventilation system
- Base fits LS1, LS2, LS3, LS6 and LS7 engines with clearance for .750” lift cam with stock style rocker arms
- Coil cover features vintage valve cover styling with a prominent GM Licensed “Chevrolet” script logo and cast-in wiring provisions
- Retain the performance of factory coil-on-cover ignition without the unsightly styling

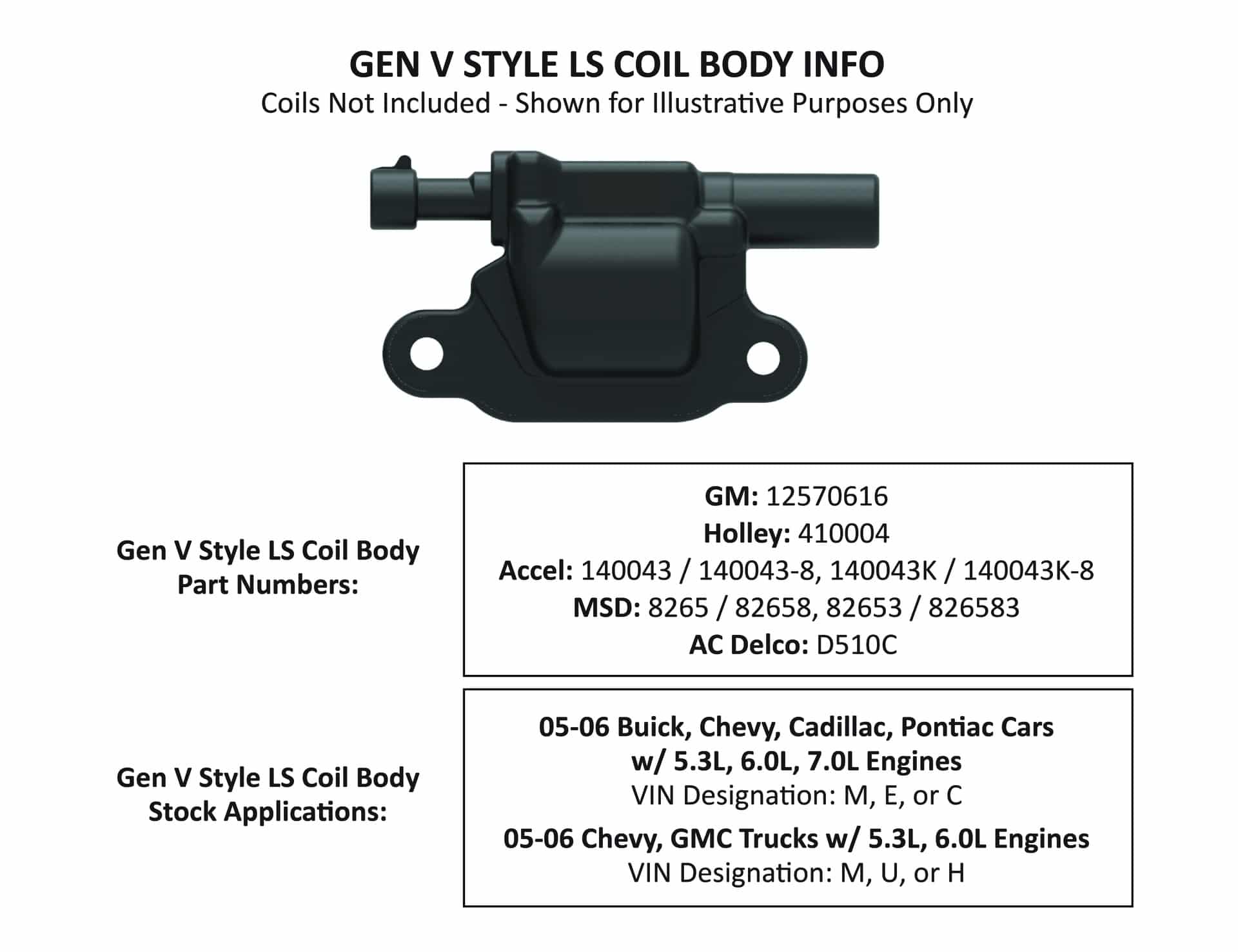

- Cast aluminum 2-Piece LS valve covers designed to mount and hide both Gen I and Gen V style LS coil bodies
Product Video – YouTube
Holley’s new 2-Piece LS valve covers are a great way to update the look of your LS engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular LS valve covers feature an OE height, internally baffled LS valve cover base with integrated coil mounts for popular Gen I and Gen V style LS coil bodies (coils not included), and a “Chevrolet” branded overcover that hides the unsightly LS coils and messy wiring harness – allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling. Each modular coil cover features a prominent vintage “Chevrolet” logo that matches various other GM licensed Holley products. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required.
Each 2-Piece LS valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of LS coil bodies, and 12-point dress up hardware and rubber grommets for the coil covers. These modular LS valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins).
Attributes:
| Application | GM LS Engines |
| Valve Cover Gasket Included | No |
| Type of Component | Valve Cover |
| Sub Category | Cylinder Block Components |
| Style | Chevrolet Script |
| Quantity | Pair |
| Product Type | Valve Cover |
| part type | Engine Valve Cover Set |
| Overall Height | 3.61 |
| Oil Filler Cap Included | Yes |
| Oil Fill Cap Included | Yes |
| Oil Fill | Yes |
| Mounting Hardware Included | Yes |
| Material | Cast Aluminum |
| Logo | Chevrolet Script |
| Hold Down Tabs Included | No |
| Height | 3.75″ |
| Grommets Included | No |
| Gromment(s) Included | No |
| Grade Type | Performance |
| Gaskets Included | No |
| Gasket Included | No |
| Finish | Natural |
| Emission Code | 7 |
| Design Type | 2-Piece LS |
| Construction | Die Cast Aluminum |
| Color | Natural |
| Coil Options | with Coil Stands |
| Coil Mounting Studs | Yes, on Baseplate |
| Category | Engine |
| Breather(s) Included | No |
| Breather Cap Included | No |
| Brand | Holley |
| Bolt Pattern | Center Bolt |
| Baffle Included | Yes |
| Valvetrain Clearance | .750″ lift cam with stock style rocker arms |
| Warranty | Manufacturer’s Limited 90 Day Warranty |
Vehicle Applications:
| Make | Model | Years |
| Buick | LaCrosse | 2008 to 2009 |
| Buick | Rainier | 2004 to 2007 |
| Cadillac | CTS | 2004 to 2015 |
| Cadillac | Escalade ESV | 2003 to 2006 |
| Cadillac | Escalade EXT | 2002 to 2006 |
| Cadillac | Escalade | 2002 to 2013 |
| Chevrolet | Avalanche 1500 | 2002 to 2006 |
| Chevrolet | Avalanche | 2007 to 2013 |
| Chevrolet | Camaro | 1998 to 2015 |
| Chevrolet | Caprice | 2011 to 2017 |
| Chevrolet | Colorado | 2009 to 2012 |
| Chevrolet | Corvette | 1997 to 2013 |
| Chevrolet | Express 1500 | 2003 to 2014 |
| Chevrolet | Express 2500 | 2003 to 2017 |
| Chevrolet | Express 3500 | 2003 to 2017 |
| Chevrolet | Impala | 2006 to 2009 |
| Chevrolet | Monte Carlo | 2006 to 2007 |
| Chevrolet | SS | 2014 to 2017 |
| Chevrolet | SSR | 2003 to 2006 |
| Chevrolet | Silverado 1500 Classic | 2007 to 2007 |
| Chevrolet | Silverado 1500 HD Classic | 2007 to 2007 |
| Chevrolet | Silverado 1500 | 1999 to 2007 |
| Chevrolet | Silverado 2500 HD Classic | 2007 to 2007 |
| Chevrolet | Silverado 2500 HD | 2001 to 2017 |
| Chevrolet | Silverado 2500 | 1999 to 2017 |
| Chevrolet | Silverado 3500 Classic | 2007 to 2007 |
| Chevrolet | Silverado 3500 HD | 2007 to 2017 |
| Chevrolet | Silverado 3500 | 2001 to 2017 |
| Chevrolet | Suburban 1500 | 2000 to 2014 |
| Chevrolet | Suburban 2500 | 2000 to 2013 |
| Chevrolet | Suburban 3500 HD | 2016 to 2017 |
| Chevrolet | Suburban | 2014 to 2017 |
| Chevrolet | Tahoe | 2000 to 2014 |
| Chevrolet | Trailblazer EXT | 2003 to 2006 |
| Chevrolet | Trailblazer | 2006 to 2009 |
| GMC | Canyon | 2009 to 2012 |
| GMC | Envoy XL | 2003 to 2006 |
| GMC | Envoy XUV | 2004 to 2005 |
| GMC | Envoy | 2005 to 2009 |
| GMC | Savana 1500 | 2003 to 2014 |
| GMC | Savana 2500 | 2003 to 2017 |
| GMC | Savana 3500 | 2003 to 2017 |
| GMC | Sierra 1500 Classic | 2007 to 2007 |
| GMC | Sierra 1500 HD Classic | 2007 to 2007 |
| GMC | Sierra 1500 HD | 2001 to 2006 |
| GMC | Sierra 1500 | 1999 to 2014 |
| GMC | Sierra 2500 HD Classic | 2007 to 2007 |
| GMC | Sierra 2500 HD | 2001 to 2017 |
| GMC | Sierra 2500 | 1999 to 2004 |
| GMC | Sierra 3500 Classic | 2007 to 2007 |
| GMC | Sierra 3500 HD | 2007 to 2017 |
| GMC | Sierra 3500 | 2001 to 2006 |
| GMC | Sierra | 2007 to 2007 |
| GMC | Yukon XL 1500 | 2000 to 2014 |
| GMC | Yukon XL 2500 | 2000 to 2013 |
| GMC | Yukon | 2000 to 2014 |
| Hummer | H2 | 2003 to 2009 |
| Hummer | H3 | 2008 to 2010 |
| Isuzu | Ascender | 2003 to 2006 |
| Pontiac | Firebird | 1998 to 2002 |
| Pontiac | G8 | 2008 to 2009 |
| Pontiac | GTO | 2004 to 2006 |
| Pontiac | Grand Prix | 2005 to 2008 |
| Saab | 9-7x | 2005 to 2009 |
