HOL-300-131 Holley Single Plane Carbureted Intake – GM LS3/L92
£626.95 Inc VAT
Availability: 9 in stock
HOL-300-131 Holley Single Plane Carbureted Intake – GM LS3/L92
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
Features
- Port size – 2.50″ height x 1.15″ wide
- Minimum carb flange height – fit in vehicles with minimum hood modifications
- Optimized runner layout and constant cross sectional area – broad torque curve, best vehicle performance from 2500-7000 RPM
- 4150 Square bore flange (accepts up to 1.75″ diameter throttle bores)
- 2500-7000 RPM power band
- Cast aluminum construction – great manifold for centrifugal blower, turbocharged or NOS power adder applications
- Efficient casting design – lightweight, consistent wall thicknesses, improved casting quality
- Weight – 11.5 lbs.

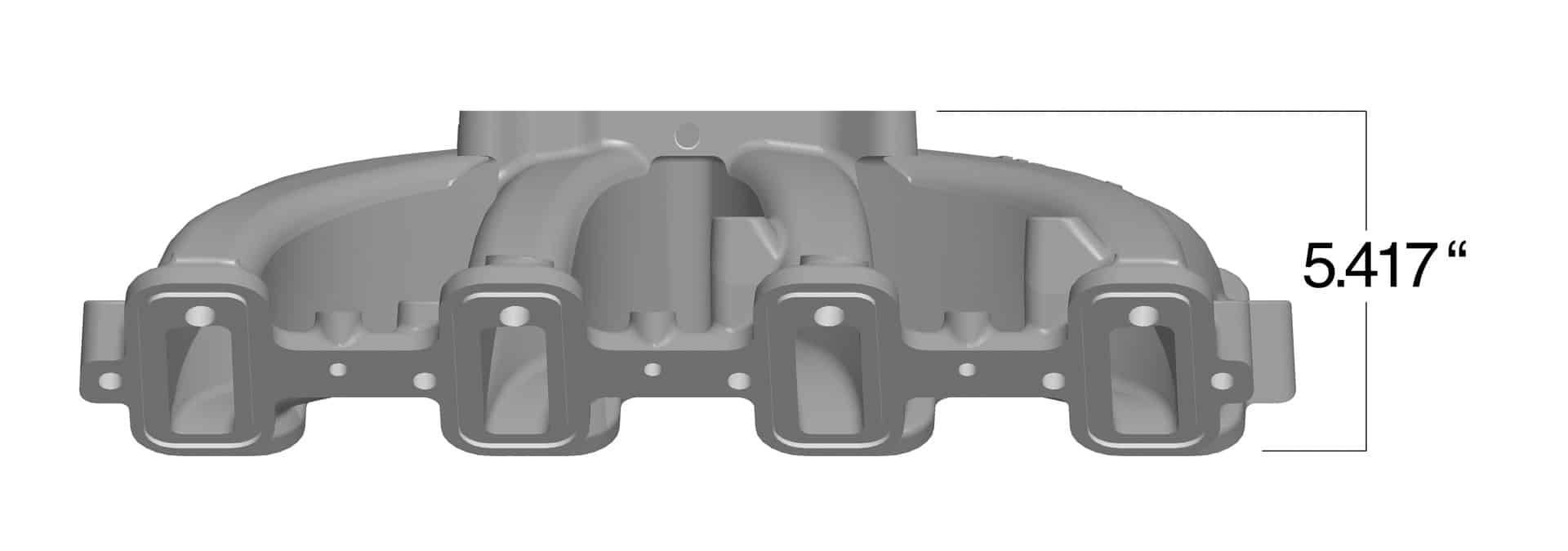

- Height (front) – 5.417″ to the lifter valley cover flange at the engine block front flange
- Includes Viton® O-ring intake to cylinder head gaskets – Viton® is a registered trademark of DuPont Performance Elastomers
Product Video – YouTube
Product Video – YouTube
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
Attributes:
| EGR Port | No |
| Basic Operating RPM Range | 2500-7000 |
| Brand | Holley |
| Carburetor Flange | Square/4150 |
| Carburetor Studs Included | No |
| Category | Engine |
| Color | Natural |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Finish | Silver |
| Flange Style | 4150 Square Bore |
| Front Height | 5.417 inch |
| Front Maximum Height | 5.417 |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Single Plane |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| part type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Product Type | Intake Manifold |
| Rear Height | 5.417 inch |
| Rear Maximum Height | 5.417 |
| Removable Runners | No |
| RPM Power Band | 2500-7000 RPM |
| Single Or Dual Plane Type | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Included | No |
| Warranty | Manufacturer’s Limited 90 Day Warranty |
| Weight | 6.646 kg |
|---|
