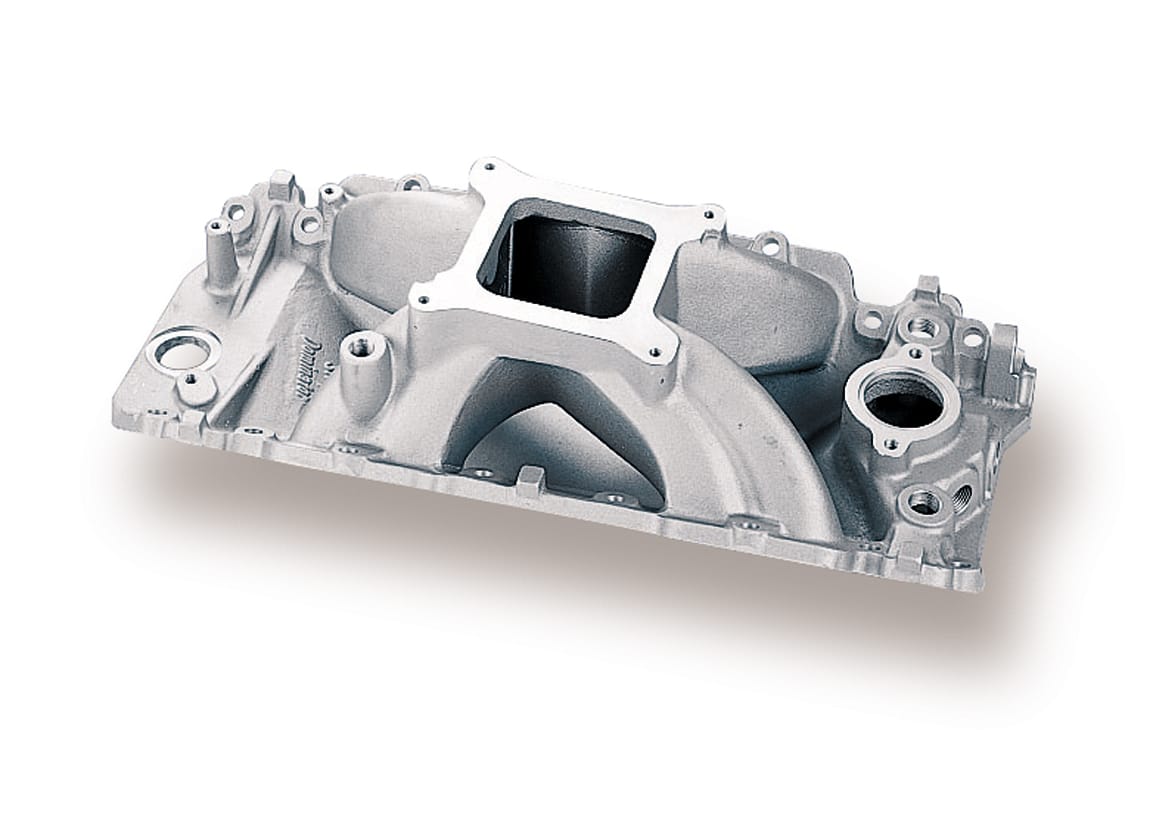

HOL-300-5 Holley Strip Dominator Intake – Big Block Chevy V8
Carburetor Intake Manifold 396ci-502ci – Rectangular Port Heads
Features
- Deep Plenum Design with Isolated Runners
- Height: Front 4.77″, Rear 6.16″
- Port Size: 2.30” height 1.60″ width
- Power band: 4500-8500 RPM
- 4150 Square Bore Carburetor Mounting Flange
- Single Plane/Open Plenum Design
Product Video – YouTube
Carburetor Intake Manifold 396ci-502ci with Rectangular Port Heads
Attributes:
| Fuel Injectors Included | No |
| Front Maximum Height | 4.77 |
| Front Height | 4.77 inch |
| Flange Style | 4150 Square Bore |
| Finish | Satin |
| Engine | Chevy Big Block V8 |
| Warranty | Manufacturer’s Limited 90 Day Warranty |
| Throttle Body Included | No |
| Single Or Dual Plane Type | Single Plane |
| RPM Power Band | 4500-8500 |
| Removable Runners | No |
| Rear Maximum Height | 6.16 |
| Rear Height | 6.16 inch |
| Emission Code | 3 |
| EGR Port | No |
| Construction | Cast |
| Color | Natural |
| Category | Intake Manifolds |
| Carburetor Studs Included | No |
| Carburetor Flange | Square/4150 |
| Plenum Finish | Natural |
| Brand | Holley |
| Basic Operating RPM Range | 4500-8500 |
| Nitrous Bung(s) Included | No |
| Material | Aluminum |
| Manifold Type | High Rise |
| Intake Port Gasket(s) Included | No |
| Product Type | Intake Manifold |
| Grade Type | Performance |
| Gasket Or Seal Included | No |
| Fuel System Type | Carb |
| Fuel Rail(s) Included | No |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | Bel Air | 1963 to 1975 |
| Chevrolet | Biscayne | 1963 to 1972 |
| Chevrolet | Blazer | 1973 to 1973 |
| Chevrolet | C10 Pickup | 1968 to 1974 |
| Chevrolet | C10 Suburban | 1968 to 1980 |
| Chevrolet | C10 | 1975 to 1980 |
| Chevrolet | C20 Pickup | 1968 to 1974 |
| Chevrolet | C20 Suburban | 1968 to 1986 |
| Chevrolet | C20 | 1975 to 1986 |
| Chevrolet | C30 Pickup | 1968 to 1974 |
| Chevrolet | C30 | 1975 to 1986 |
| Chevrolet | Camaro | 1967 to 1969 |
| Chevrolet | Caprice | 1966 to 1976 |
| Chevrolet | Chevelle | 1967 to 1973 |
| Chevrolet | Corvette | 1966 to 1974 |
| Chevrolet | El Camino | 1966 to 1975 |
| Chevrolet | G10 Van | 1973 to 1974 |
| Chevrolet | G20 Van | 1973 to 1974 |
| Chevrolet | G20 | 1976 to 1976 |
| Chevrolet | G30 Van | 1973 to 1974 |
| Chevrolet | G30 | 1975 to 1976 |
| Chevrolet | Impala | 1963 to 1976 |
| Chevrolet | K10 Pickup | 1968 to 1974 |
| Chevrolet | K10 Suburban | 1968 to 1969 |
| Chevrolet | K10 | 1976 to 1980 |
| Chevrolet | K20 Pickup | 1968 to 1974 |
| Chevrolet | K20 Suburban | 1973 to 1985 |
| Chevrolet | K20 | 1976 to 1980 |
| Chevrolet | K30 Pickup | 1968 to 1974 |
| Chevrolet | K30 | 1977 to 1986 |
| Chevrolet | K5 Blazer | 1976 to 1978 |
| Chevrolet | Kingswood | 1970 to 1972 |
| Chevrolet | Laguna | 1973 to 1975 |
| Chevrolet | Malibu | 1966 to 1975 |
| Chevrolet | Monte Carlo | 1970 to 1974 |
| Chevrolet | Nova | 1969 to 1970 |
| Chevrolet | P10 Van | 1973 to 1973 |
| Chevrolet | P20 Van | 1970 to 1973 |
| Chevrolet | P30 Van | 1970 to 1974 |
| Chevrolet | P30 | 1981 to 1982 |
| Chevrolet | R30 | 1987 to 1988 |
| Chevrolet | R3500 | 1989 to 1989 |
| Chevrolet | Townsman | 1970 to 1972 |
| Chevrolet | V30 | 1987 to 1988 |
| Chevrolet | V3500 | 1989 to 1989 |
| GMC | C15 Suburban | 1975 to 1978 |
| GMC | C15/C1500 Pickup | 1968 to 1974 |
| GMC | C15/C1500 Suburban | 1969 to 1974 |
| GMC | C1500 Suburban | 1979 to 1980 |
| GMC | C1500 | 1979 to 1980 |
| GMC | C15 | 1975 to 1978 |
| GMC | C25 Suburban | 1975 to 1978 |
| GMC | C25/C2500 Pickup | 1968 to 1974 |
| GMC | C25/C2500 Suburban | 1968 to 1974 |
| GMC | C2500 Suburban | 1979 to 1986 |
| GMC | C2500 | 1979 to 1986 |
| GMC | C25 | 1975 to 1978 |
| GMC | C35/C3500 Pickup | 1968 to 1974 |
| GMC | C3500 | 1979 to 1989 |
| GMC | C35 | 1975 to 1978 |
| GMC | G25 | 1975 to 1976 |
| GMC | G35 | 1976 to 1976 |
| GMC | Jimmy | 1973 to 1976 |
| GMC | K15/K1500 Pickup | 1968 to 1969 |
| GMC | K15/K1500 Suburban | 1968 to 1974 |
| GMC | K1500 | 1979 to 1980 |
| GMC | K15 | 1976 to 1976 |
| GMC | K25 Suburban | 1976 to 1977 |
| GMC | K25/K2500 Pickup | 1968 to 1974 |
| GMC | K25/K2500 Suburban | 1968 to 1974 |
| GMC | K25 | 1976 to 1978 |
| GMC | K35/K3500 Pickup | 1968 to 1974 |
| GMC | K3500 | 1979 to 1986 |
| GMC | P1500 | 1979 to 1979 |
| GMC | P25/P2500 Van | 1970 to 1971 |
| GMC | P35/P3500 Van | 1970 to 1974 |
| GMC | R3500 | 1987 to 1987 |
| GMC | Sprint | 1971 to 1975 |
| Weight | 6.523 kg |
|---|
