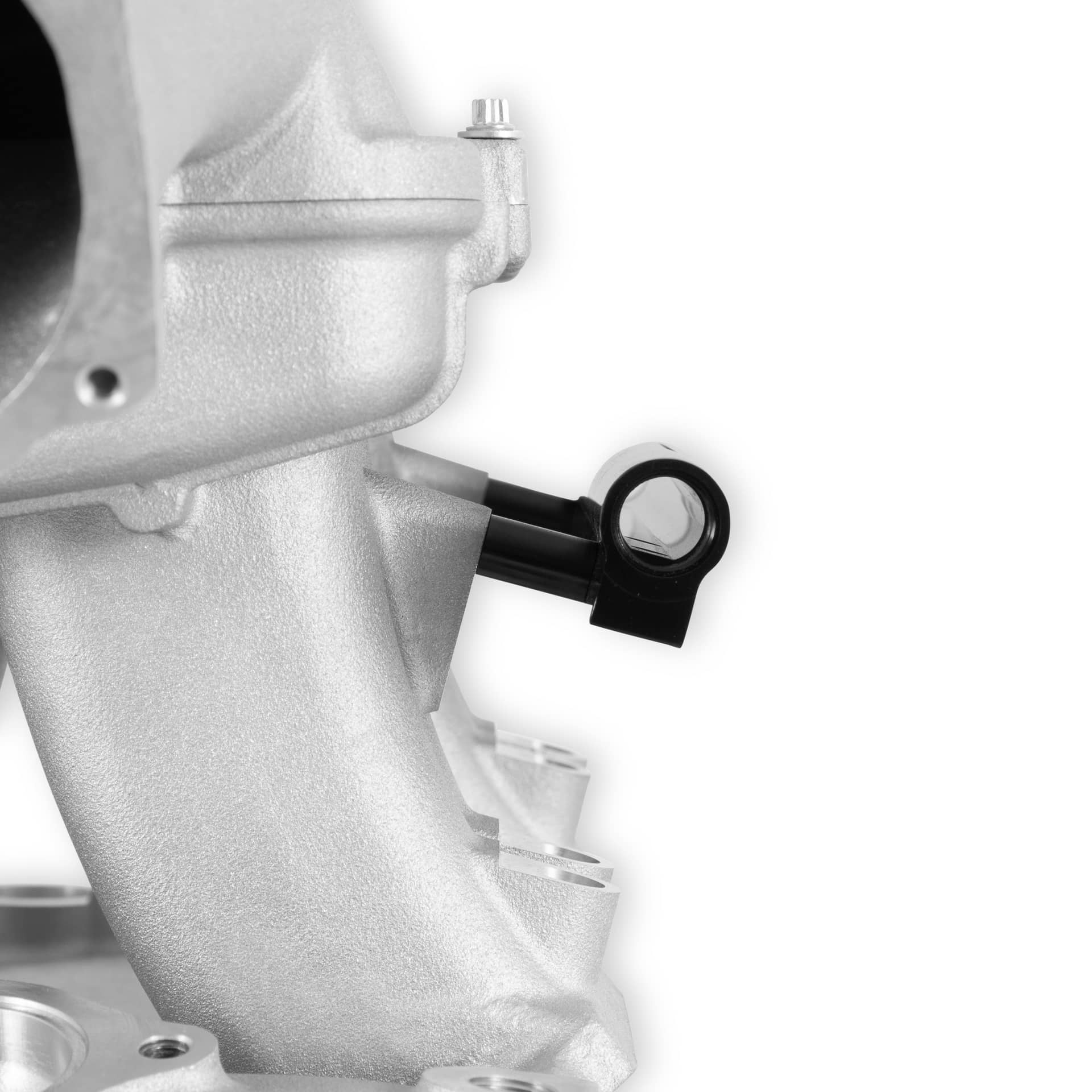

HOL-300-950 Holley Hi-Ram EFI Intake Manifold Kit – Small Block Chevy

HOL-300-950 Holley Hi-Ram EFI Intake Manifold Kit – Small Block Chevy

Small block Chevy Hi-Ram intake manifold with 105mm LS throttle body flange plenum top

Features

• MAP sensor port is for a GM Gen IV LS MAP sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum
• Cost-effective alternative to fabricated sheet-metal or billet manifolds for high-performance applications where induction system height is not limited
• Designed for 1955-86 265-400 Gen 1 Chevy engines fitted with cylinder heads having a standard intake manifold flange configuration. Not designed for raised intake port, 18 degree, or L31 Vortec type cylinder heads.
• Throttle Cable Bracket is supplied in the kit
• 1.95” tall x 1.25” wide port flange openings, uses Mr. Gasket intake manifold gasket #5281
• Power Band: 1500-8000 RPM
• Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors
• Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Black anodized EFI fuel rails are machined for -8AN O-ring fittings and come included with the EFI Hi-Ram kits.
• The coolant outlet is a standard Small Block Chevy thermostat housing flange and (1) 1/2 NPT and (2) 3/8 NPT coolant ports are provided.
• Uses drive by wire or cable actuated GM Gen IV LS 4-bolt throttle bodies
• The Small Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum layout or with a hood-height friendly 95mm front-feed plenum layout

Introducing the latest addition to the acclaimed Hi-Ram EFI intake manifold series, originally designed for the GM Gen IV LS3 engine. The Holley SBC Hi-Ram is engineered to elevate your vehicle’s performance to new heights.

Upgrade your engine today with the Small Block Chevy Hi-Ram manifold and experience unparalleled performance and style!

The 300-950 model boasts a standard Hi-Ram configuration with a top-feed plenum, designed to accommodate up to a 105mm Gen IV LS 4-bolt throttle body, including drive-by-wire options.

The versatile fuel rail kits are compatible with both long and short type fuel injectors, ensuring flexibility and convenience. Experience the power and aesthetics of high-end billet and fabricated racing intake manifolds, all at the cost-effective price of cast aluminum.

Unleash the Power of Your Engine with the Holley SBC Hi-Ram!
