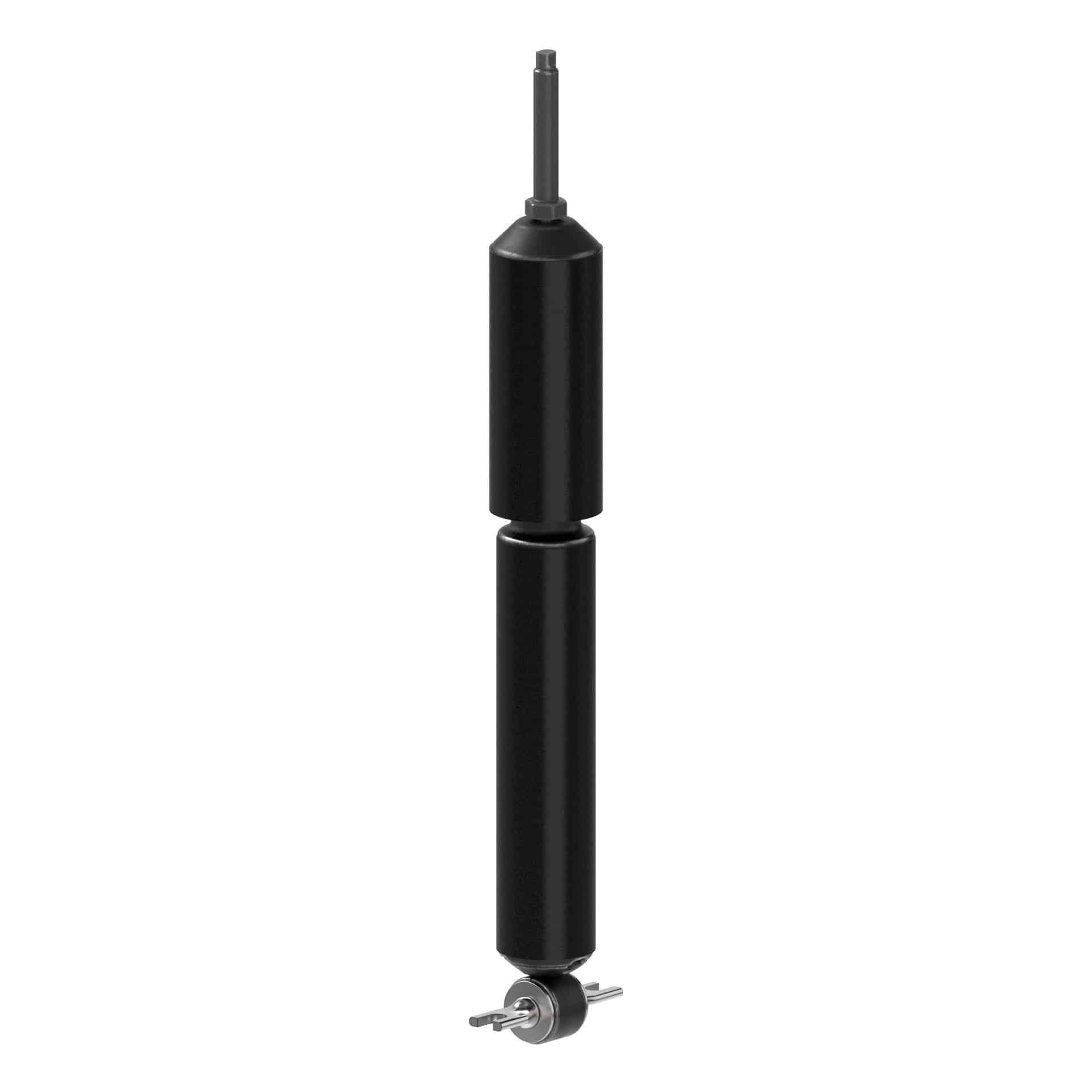

MON-34520 Gas-Magnum Front Suspension Shock Absorber
Monroe Gas-Magnum 34520 Front Suspension Shock Absorber for Dodge Ram 2500
Features:
- DESIGNED FOR TRUCKS AND VANS — Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUY WITH CONFIDENCE — Comes with Monroe?™s Limited Lifetime Warranty and exclusive Feel the Difference„? Guarantee
- LONGER SERVICE LIFE — Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- BUILT TO LAST — Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, they work more efficiently with less effort.
Attributes:
| Part Description | Shock Absorber |
| Lower Mount Type | Cross Pin Mount – Open Ended, 3/8″ Hole ID (Both Ends) X 3.3/16″ Pin Length (Hole Center to Center) |
| Lower Mount Code | XP12 |
| Upper Mount Code | S5 |
| Parts Pack(s) | P01167 |
| 9792 | No |
| Includes Bump Stop | No |
| Dust Shield Material | Metal |
| Dust Shield Included | Yes |
| Extended Length | 415.9 |
| Travel Length | 5.375 |
| Travel Length | 136.5 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Gas Charged | Yes |
| Internal Rebound Bumper | Yes |
| Extended Length | 16.375 |
| Compressed Length | 279.4 |
| Compressed Length | 11 |
| Upper Mount Type | Stem Mount – 2.5/8″ Stem Length X 1/2″-13 Thread Pitch |
Vehicle Applications:
| Make | Model | Years |
| Dodge | Ram 1500 | 2006 to 2008 |
| Dodge | Ram 2500 | 2003 to 2010 |
| Dodge | Ram 3500 | 2003 to 2010 |
| Ram | 1500 | 2012 to 2012 |
| Ram | 2500 | 2011 to 2013 |
| Ram | 3500 | 2011 to 2012 |
