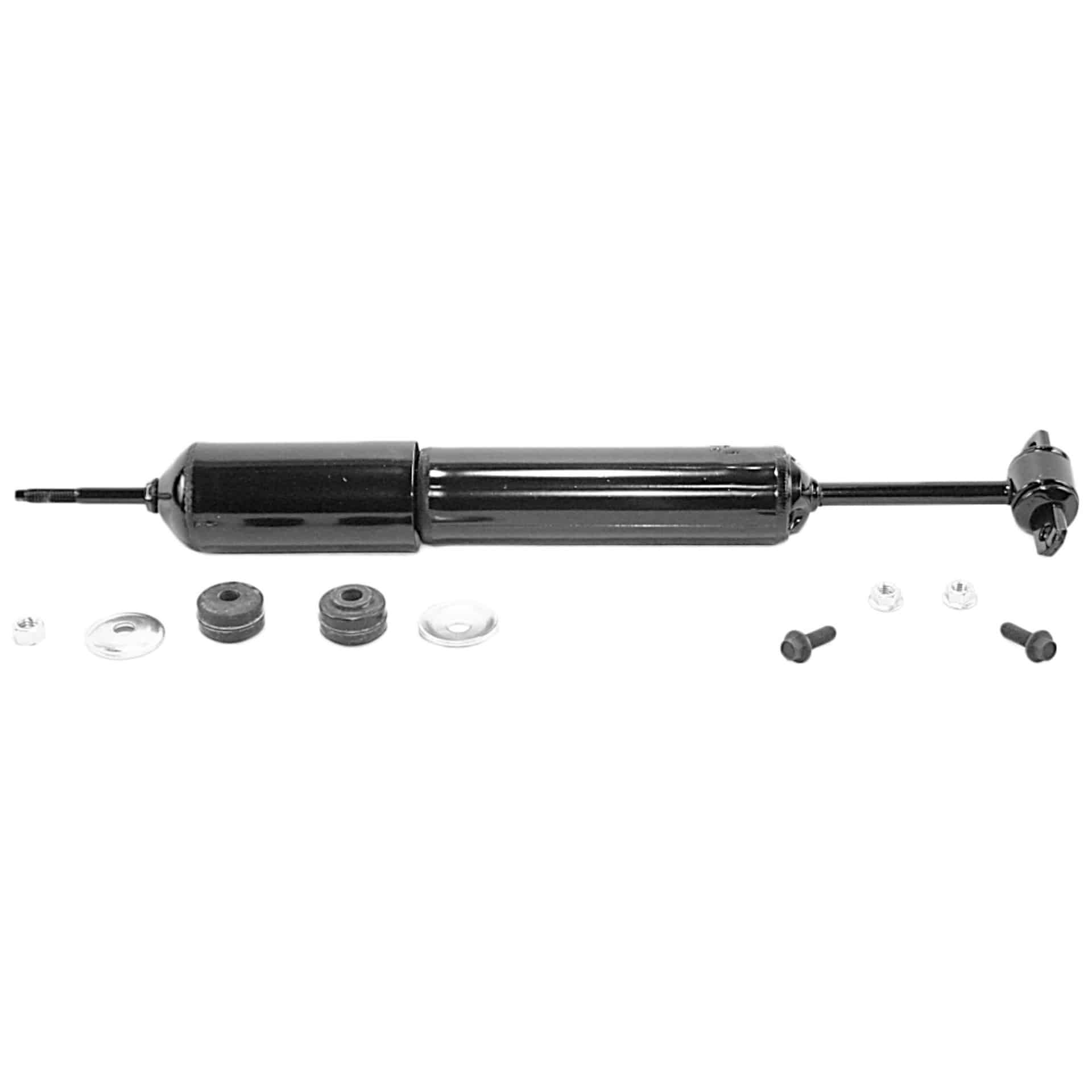

MON-34804 Gas-Magnum Front Suspension Shock Absorber
Monroe Gas-Magnum 34804 Front Suspension Shock Absorber for Ford Ranger
Features:
- DESIGNED FOR TRUCKS AND VANS — Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST — Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- BUY WITH CONFIDENCE — Comes with Monroe?™s Limited Lifetime Warranty and exclusive Feel the Difference„? Guarantee
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE — Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, they work more efficiently with less effort.
Attributes:
| Upper Mount Type | Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch |
| 9792 | No |
| Lower Mount Code | XP5 |
| Extended Length | 460 |
| Lower Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.1/2″ Pin Length (Hole Center to Center) |
| Upper Mount Code | S4 |
| Parts Pack(s) | P01135,P00941 |
| Part Description | Shock Absorber |
| Travel Length | 4.52 |
| Travel Length | 114.8 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Gas Charged | Yes |
| Internal Rebound Bumper | Yes |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Compressed Length | 13.59 |
| Compressed Length | 345.2 |
| Extended Length | 18.11 |
Vehicle Applications:
| Make | Model | Years |
| Ford | Explorer Sport Trac | 2001 to 2005 |
| Ford | Explorer Sport | 2001 to 2003 |
| Ford | Explorer | 1995 to 2001 |
| Ford | Ranger | 1998 to 2011 |
| Mazda | B3000 | 1998 to 2008 |
| Mazda | B4000 | 1998 to 2009 |
| Mercury | Mountaineer | 1997 to 2000 |
