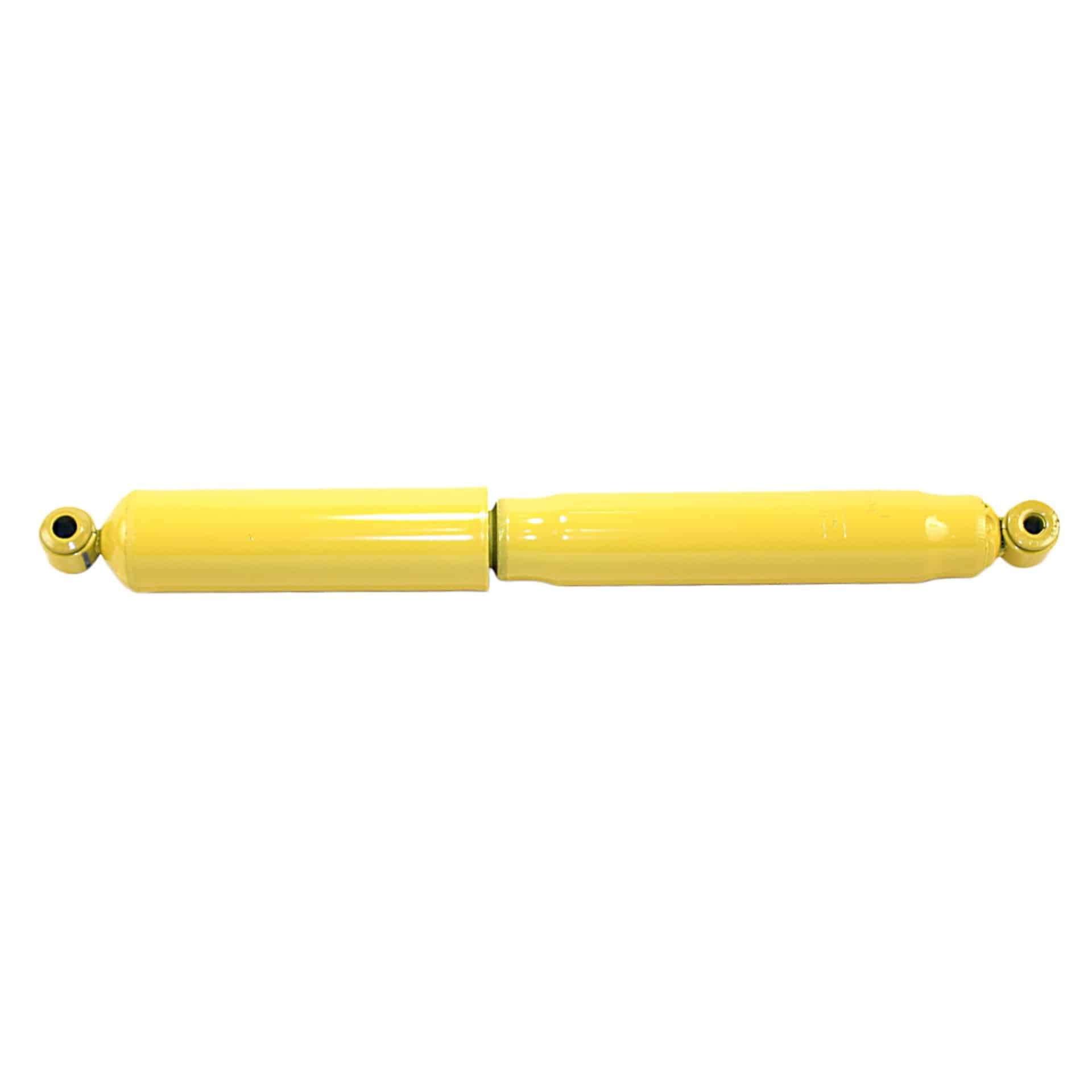

MON-34960 Gas-Magnum Rear Suspension Shock Absorber
Monroe Gas-Magnum 34960 Rear Suspension Shock Absorber for Chevrolet R3500
Features:
- LONGER SERVICE LIFE — Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- DESIGNED FOR TRUCKS AND VANS — Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST — Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE — Comes with Monroe?™s Limited Lifetime Warranty and exclusive Feel the Difference„? Guarantee
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, they work more efficiently with less effort.
Attributes:
| Upper Mount Code | LS47 |
| Travel Length | 8.75 |
| Extended Length | 581 |
| Extended Length | 22.875 |
| Compressed Length | 358.8 |
| Compressed Length | 14.125 |
| Part Description | Shock Absorber |
| 9792 | No |
| Parts Pack(s) | None |
| Travel Length | 222.3 |
| Upper Mount Type | Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL |
| Lower Mount Code | LS47 |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL |
| Includes Bump Stop | No |
| Dust Shield Material | Metal |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | No |
| Gas Charged | Yes |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Loop |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | C20 | 1975 to 1986 |
| Chevrolet | C30 Pickup | 1973 to 1974 |
| Chevrolet | C30 | 1975 to 1986 |
| Chevrolet | P30 Van | 1973 to 1974 |
| Chevrolet | P30 | 1975 to 1999 |
| Chevrolet | R20 | 1987 to 1988 |
| Chevrolet | R2500 | 1989 to 1989 |
| Chevrolet | R30 | 1987 to 1988 |
| Chevrolet | R3500 | 1989 to 1991 |
| GMC | C25/C2500 Pickup | 1973 to 1974 |
| GMC | C2500 | 1979 to 1986 |
| GMC | C25 | 1975 to 1978 |
| GMC | C35/C3500 Pickup | 1973 to 1974 |
| GMC | C3500 | 1979 to 1986 |
| GMC | C35 | 1975 to 1978 |
| GMC | P35/P3500 Van | 1973 to 1974 |
| GMC | P3500 | 1979 to 1999 |
| GMC | P35 | 1975 to 1978 |
| GMC | R2500 | 1987 to 1989 |
| GMC | R3500 | 1987 to 1991 |
