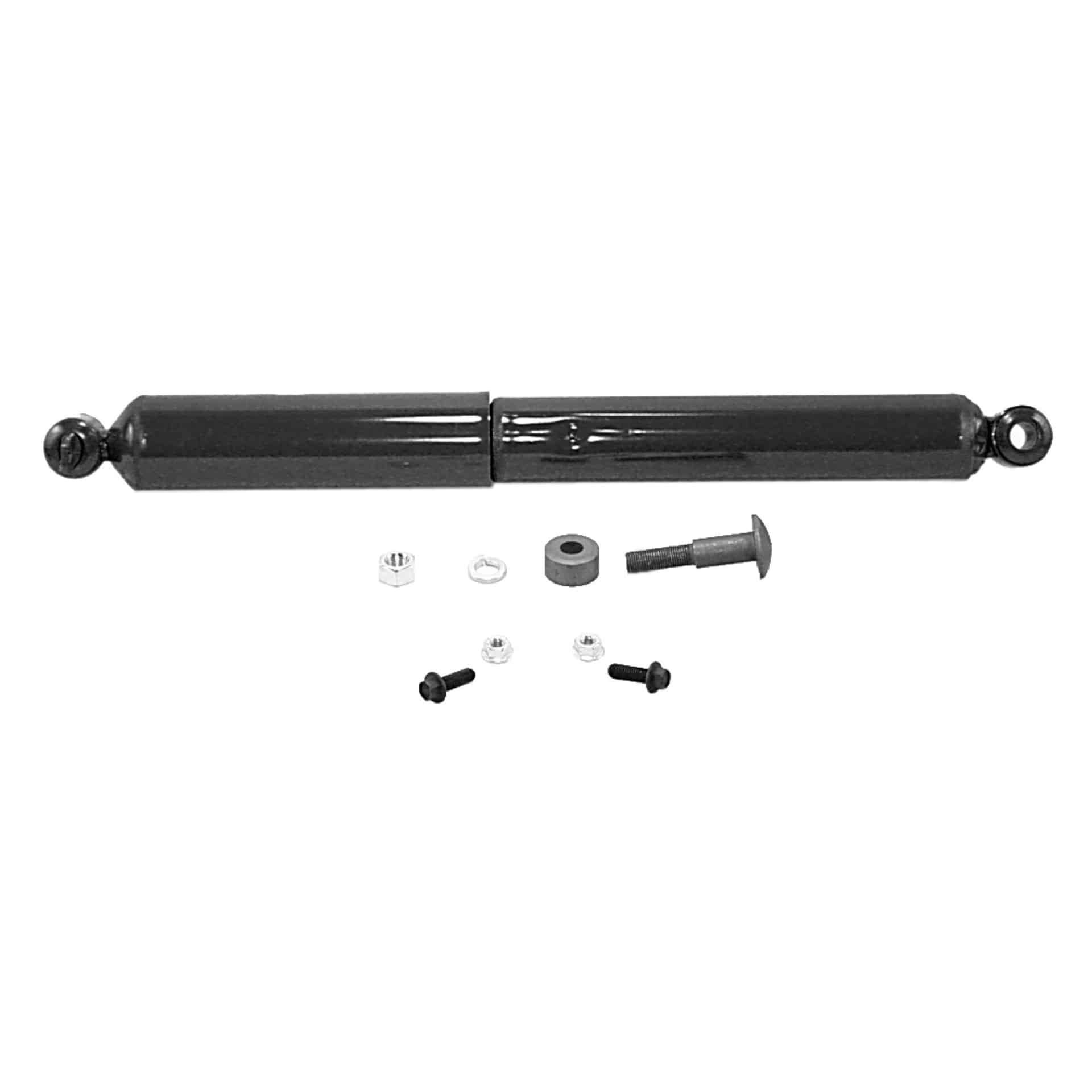

Monroe 550013 – 1 Pair Magnum Severe Service Rear Suspension Shock Absorbers

MON-550013 Magnum Severe Service Rear Suspension Shock Absorber

Monroe Magnum Severe Service 550013 Rear Suspension Shock Absorber for Chevrolet Caprice

Features:

CONTROL AND DURABILITY ?“ PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces for smooth operation
ENGINEERED FOR EMERGENCY AND FLEET VEHICLES — For hardworking first responder, municipal, fleet and jobsite vehicles and features 10-stage valving that adjusts to road extremes to help handle frequent stops, heavy loads and high miles
IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
STRONG AND DURABLE — Double welded, including arc welds up to 360-degrees, for durability while shouldered bushing and bonded bushing (on most applications) delivers quality
BUILT TO LAST — Heavy-duty nitrocarburized rod (on most applications) and sintered iron piston enhance durability for longer service life
LONGER SERVICE LIFE — Larger bore, bigger 2-in. reserve tube and 0.05-in. pressure tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction

Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube
Product Video – YouTube

Engineered for hardworking emergency, municipal, fleet and jobsite vehicles, Monroe® Magnum® Severe Service shocks feature enhanced components for superior stability and ride control in the toughest environments.

Attributes:

Travel Length	203.2
Lower Mount Type	Loop Bushing Mount – 5/8″ Bushing ID X 1.5/16″ Bushing OAL
Lower Mount Code	L1
Upper Mount Type	Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
Upper Mount Code	XP7
Parts Pack(s)	P00576,P00941
9792	No
Part Description	Shock Absorber
Shock Absorber Body End Measuring Point	Center of Loop
Shock Absorber Rod End Measuring Point	Center of Cross Pin
Travel Length	8
Extended Length	539.8
Extended Length	21.25
Compressed Length	336.5
Compressed Length	13.25
Includes Bump Stop	No
Gas Charged	Yes
Internal Rebound Bumper	Yes
Dust Shield Included	Yes
Dust Shield Material	Metal
