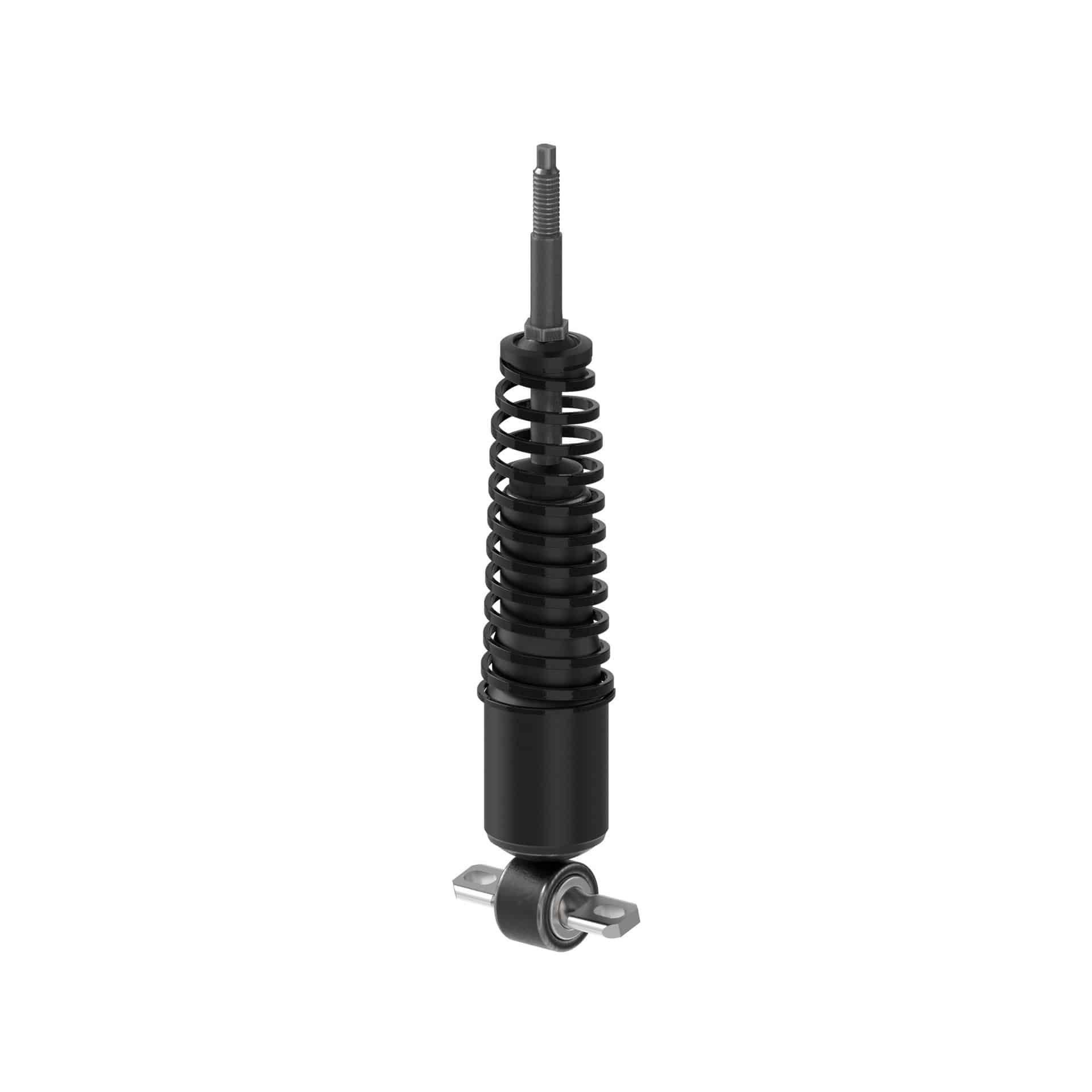

MON-58263 Load Adjusting Front Suspension Shock Absorber and Coil Spring Assembly Pk of 2
Monroe Load Adjusting 58263 Front Suspension Shock Absorber and Coil Spring Assembly Pk of 2 for Chevrolet Caprice
Features:
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.
Attributes:
| Part Description | Shock Absorber and Coil Spring Assembly |
| Compressed Length | 9.125 |
| Compressed Length | 231.8 |
| Extended Length | 13.75 |
| Extended Length | 349.3 |
| Travel Length | 4.625 |
| Travel Length | 117.5 |
| Body End Code | XP4 |
| Rod End Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Parts Pack(s) | P01134 |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Hydraulic Lockout | No |
| Dust Shield Material | Metal |
| Upper Mount Type | Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch |
| Lower Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/16″ Pin Length (Hole Center to Center) |
Vehicle Applications:
| Make | Model | Years |
| Buick | Electra | 1971 to 1989 |
| Buick | Estate Wagon | 1971 to 1983 |
| Buick | LeSabre | 1971 to 1990 |
| Buick | Riviera | 1971 to 1978 |
| Buick | Roadmaster | 1991 to 1996 |
| Cadillac | Brougham | 1987 to 1992 |
| Cadillac | Commercial Chassis | 1977 to 1996 |
| Cadillac | DeVille | 1977 to 1984 |
| Cadillac | Fleetwood | 1977 to 1996 |
| Chevrolet | Bel Air | 1965 to 1981 |
| Chevrolet | Biscayne | 1965 to 1972 |
| Chevrolet | Camaro | 1970 to 1981 |
| Chevrolet | Caprice | 1966 to 1996 |
| Chevrolet | Impala | 1965 to 1985 |
| Ford | Country Squire | 1987 to 1991 |
| Ford | Custom 500 | 1965 to 1977 |
| Ford | Custom | 1965 to 1972 |
| Ford | Galaxie 500 | 1965 to 1974 |
| Ford | Galaxie | 1965 to 1967 |
| Ford | Gran Torino | 1972 to 1976 |
| Ford | LTD Crown Victoria | 1987 to 1991 |
| Ford | LTD II | 1977 to 1979 |
| Ford | LTD | 1967 to 1986 |
| Ford | Ranchero | 1972 to 1979 |
| Ford | Thunderbird | 1967 to 1979 |
| Ford | Torino | 1972 to 1976 |
| Lincoln | Continental | 1970 to 1980 |
| Lincoln | Mark III | 1968 to 1971 |
| Lincoln | Mark IV | 1972 to 1976 |
| Lincoln | Mark V | 1977 to 1979 |
| Lincoln | Mark VI | 1980 to 1983 |
| Lincoln | Town Car | 1981 to 1991 |
| Mercury | Colony Park | 1965 to 1991 |
| Mercury | Cougar | 1974 to 1979 |
| Mercury | Cyclone | 1965 to 1967 |
| Mercury | Grand Marquis | 1975 to 1991 |
| Mercury | Marauder | 1965 to 1970 |
| Mercury | Marquis | 1967 to 1982 |
| Mercury | Montego | 1972 to 1976 |
| Mercury | Monterey | 1965 to 1974 |
| Mercury | Park Lane | 1966 to 1968 |
| Oldsmobile | 98 | 1971 to 1984 |
| Oldsmobile | Custom Cruiser | 1971 to 1992 |
| Oldsmobile | Delta 88 | 1971 to 1985 |
| Pontiac | Bonneville | 1971 to 1981 |
| Pontiac | Catalina | 1971 to 1981 |
| Pontiac | Firebird | 1970 to 1981 |
| Pontiac | Grand Safari | 1971 to 1978 |
| Pontiac | Grandville | 1971 to 1975 |
| Pontiac | Laurentian | 1971 to 1981 |
| Pontiac | Parisienne | 1971 to 1986 |
| Pontiac | Safari | 1987 to 1989 |
