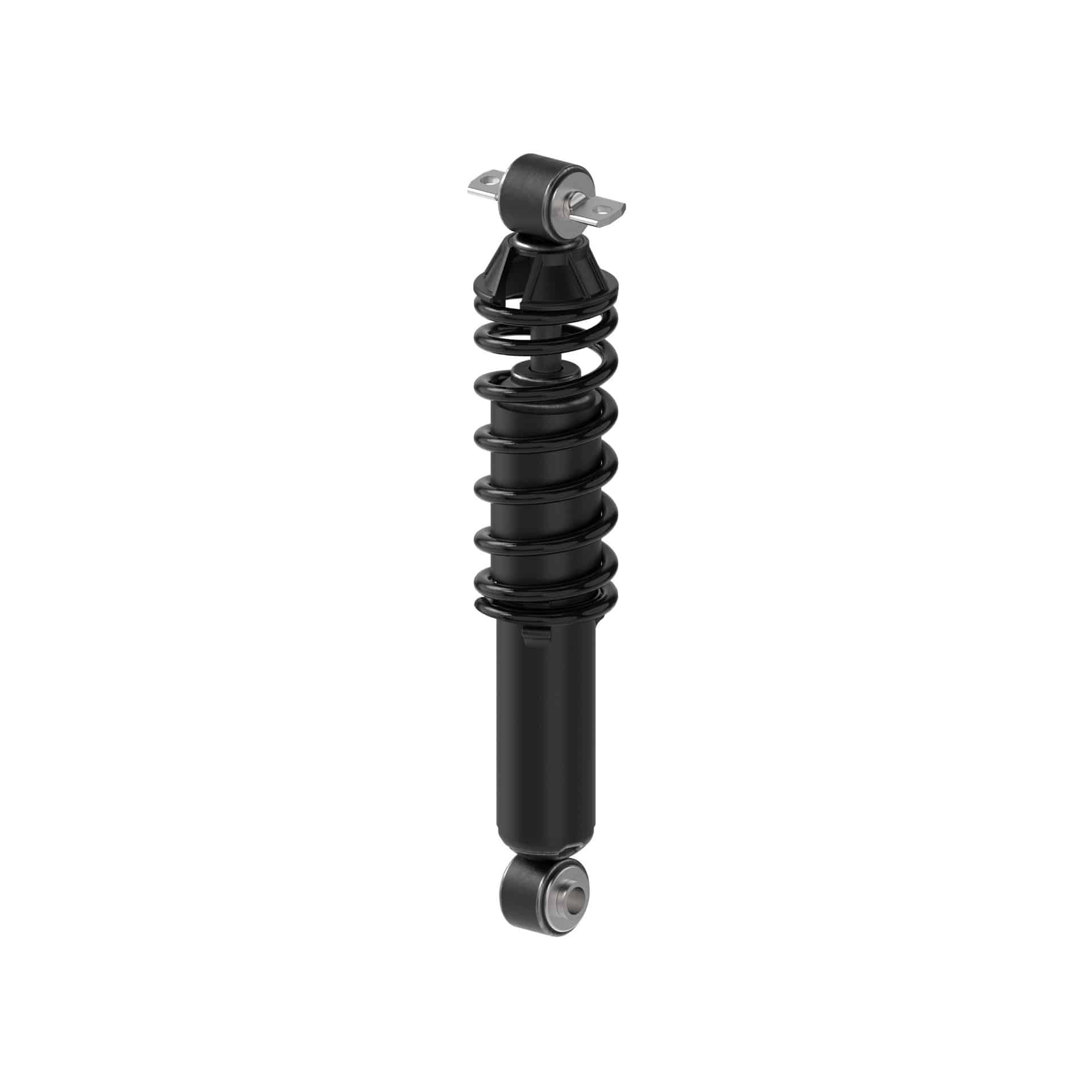

Monroe 58523 – Load Adjusting Rear Shock Absorber and Coil Spring Pack of 2

MON-58523 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Monroe Load Adjusting 58523 Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2 for Chevrolet S10

Features:

REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency

Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.

Attributes:

Upper Mount Type	Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
Travel Length	209.5
Travel Length	8.25
Internal Rebound Bumper	Yes
Includes Bump Stop	No
Dust Shield Included	Yes
Rod End Code	XP7
Body End Code	LS47
Part Description	Shock Absorber and Coil Spring Assembly
Parts Pack(s)	None
Shock Absorber Body End Measuring Point	Center of Loop
Shock Absorber Rod End Measuring Point	Center of Cross Pin
Hydraulic Lockout	No
Dust Shield Material	Metal
Compressed Length	14.5
Lower Mount Type	Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
Extended Length	577.9
Extended Length	22.75
Compressed Length	368.3

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1995 to 2005
Chevrolet	S10 Blazer	1983 to 1994
Chevrolet	S10	1982 to 2004
GMC	Jimmy	1992 to 2005
GMC	S15 Jimmy	1983 to 1991
GMC	S15	1982 to 1990
GMC	Sonoma	1991 to 2004
GMC	Syclone	1991 to 1991
GMC	Typhoon	1992 to 1993
Isuzu	Hombre	1996 to 2000
Oldsmobile	Bravada	1991 to 2001
