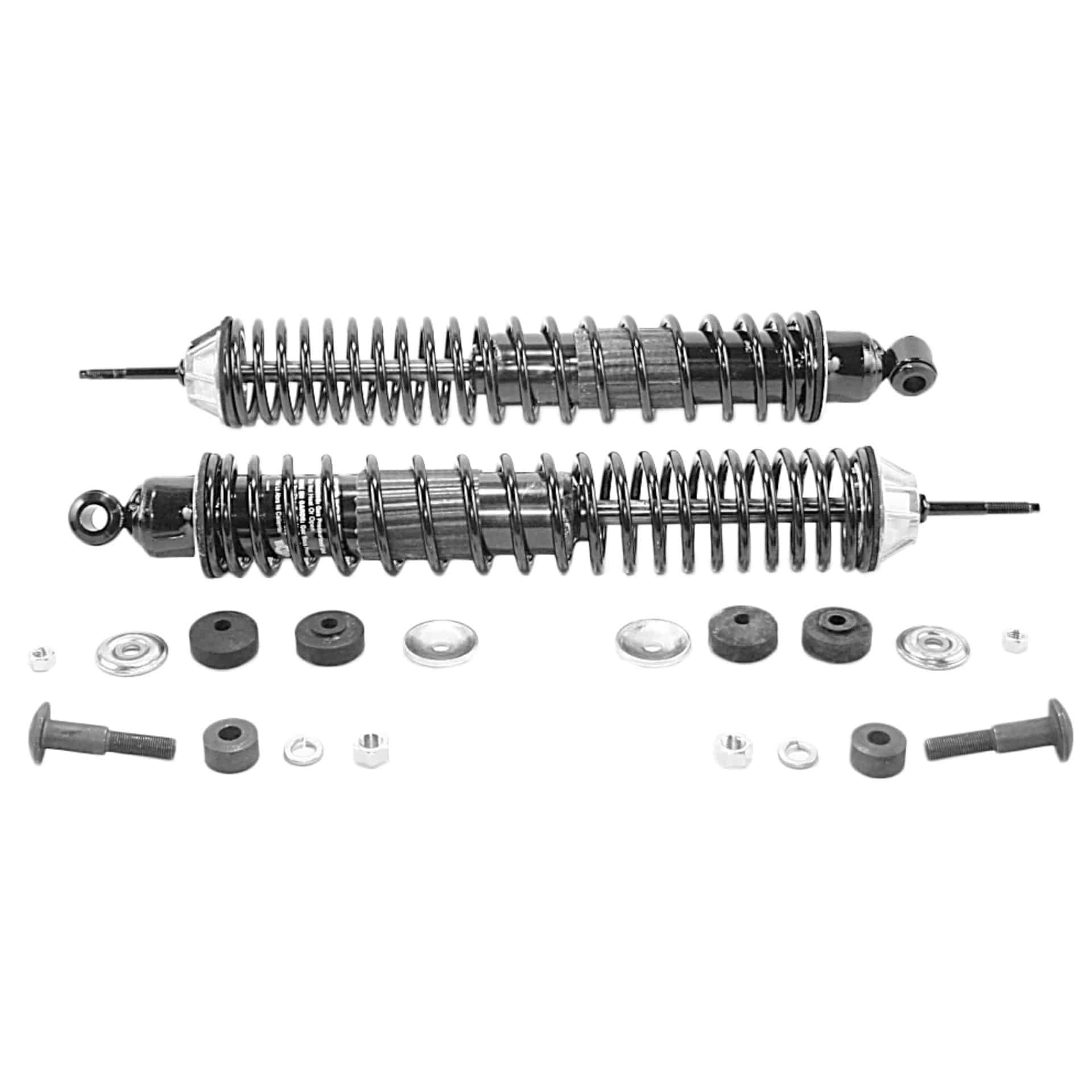

MON-58568 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2
Monroe Load Adjusting 58568 Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2 for Mercury Grand Marquis
Features:
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.
Attributes:
| Parts Pack(s) | P01136,P00576 |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Internal Rebound Bumper | Yes |
| Extended Length | 19.875 |
| Extended Length | 504.8 |
| Travel Length | 7.5 |
| Travel Length | 190.5 |
| Body End Code | L1/CP3 |
| Rod End Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame) |
| Upper Mount Type | Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch |
| Dust Shield Material | Metal |
| Compressed Length | 314.3 |
| Compressed Length | 12.375 |
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | Chevy II | 1962 to 1967 |
| Chevrolet | Corvette | 1953 to 1962 |
| Ford | Country Squire | 1987 to 1991 |
| Ford | Crown Victoria | 1992 to 2002 |
| Ford | F-100 | 1956 to 1960 |
| Ford | F-250 | 1956 to 1960 |
| Ford | Fairlane | 1966 to 1970 |
| Ford | Falcon | 1966 to 1970 |
| Ford | Gran Torino | 1972 to 1976 |
| Ford | Grand Marquis | 2001 to 2002 |
| Ford | LTD Crown Victoria | 1987 to 1991 |
| Ford | LTD II | 1977 to 1979 |
| Ford | LTD | 1979 to 1982 |
| Ford | Ranchero | 1966 to 1979 |
| Ford | Torino | 1968 to 1976 |
| Lincoln | Continental | 1980 to 1980 |
| Lincoln | Mark VI | 1980 to 1983 |
| Lincoln | Town Car | 1981 to 1989 |
| Mercury | Colony Park | 1987 to 1991 |
| Mercury | Comet | 1966 to 1967 |
| Mercury | Cougar | 1974 to 1979 |
| Mercury | Cyclone | 1968 to 1971 |
| Mercury | Grand Marquis | 1979 to 2002 |
| Mercury | Marquis | 1979 to 1982 |
| Mercury | Montego | 1968 to 1976 |
| Nissan | 410 | 1964 to 1965 |
| Nissan | 411 | 1964 to 1967 |
| Nissan | 510 | 1968 to 1973 |
| Opel | Kadett | 1968 to 1972 |
