Monroe 58574 – Load Adjusting Rear Shock Absorber and Coil Spring Pack of 2

£174.95 Inc VAT

- +

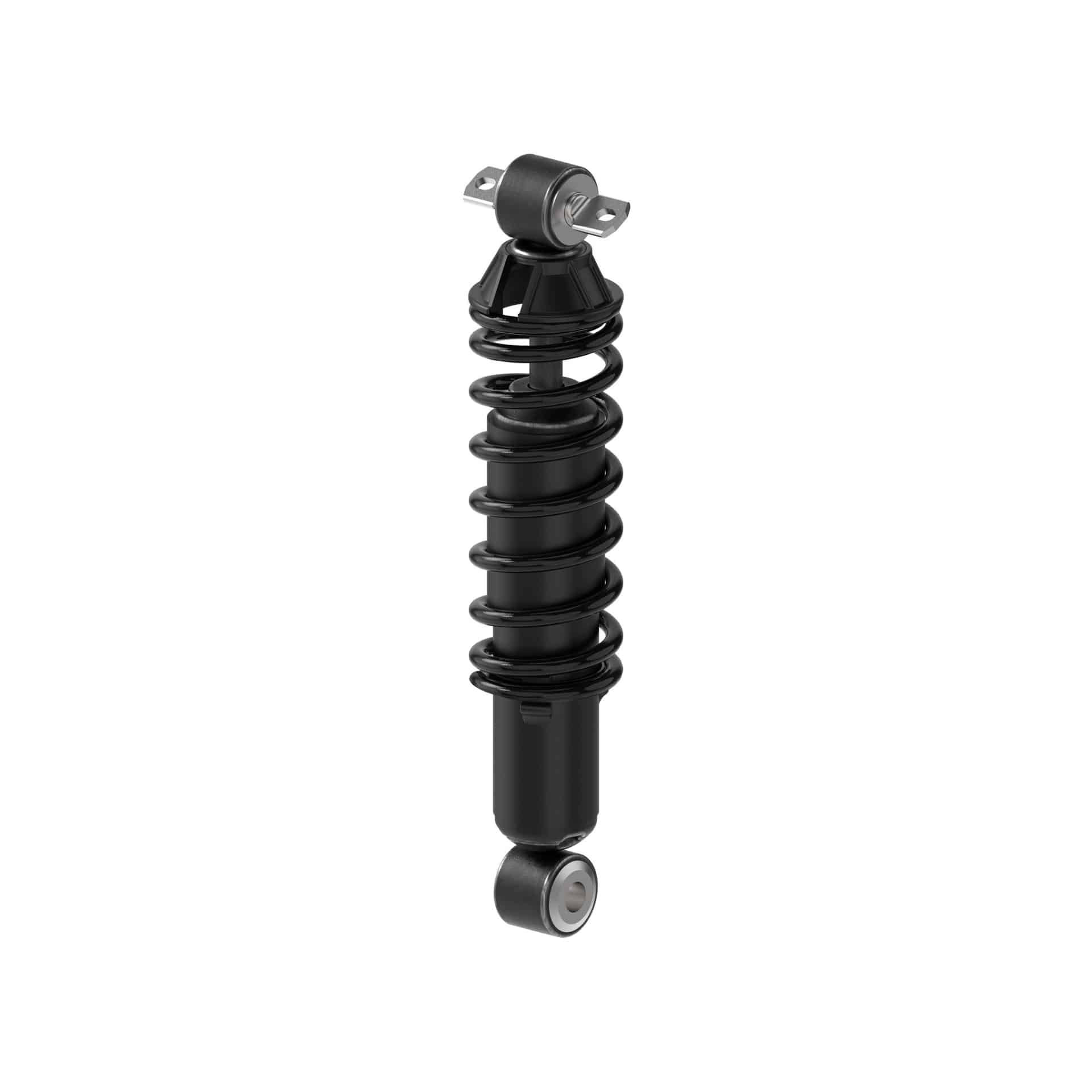

MON-58574 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Monroe Load Adjusting 58574 Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2 for Chevrolet Chevelle

Features:

  • IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
  • REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
  • LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
  • CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces



Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.



Attributes:

Includes Bump Stop No
Internal Rebound Bumper Yes
Upper Mount Type Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
Compressed Length 339.7
Part Description Shock Absorber and Coil Spring Assembly
Parts Pack(s) P00576,P00941
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Center of Cross Pin
Extended Length 21.25
Extended Length 539.8
Travel Length 7.875
Travel Length 200
Body End Code L1/CP3
Rod End Code XP7
Hydraulic Lockout No
Lower Mount Type Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame)
Compressed Length 13.375
Dust Shield Included Yes
Dust Shield Material Metal



Vehicle Applications:

Make Model Years
Buick Apollo 1973 to 1973
Buick Centurion 1971 to 1973
Buick Century 1973 to 1977
Buick Electra 1971 to 1989
Buick Estate Wagon 1977 to 1983
Buick LeSabre 1971 to 1990
Buick Regal 1973 to 1977
Buick Riviera 1971 to 1978
Buick Roadmaster 1991 to 1996
Buick Skylark 1964 to 1972
Buick Special 1964 to 1969
Buick Sportwagon 1970 to 1972
Cadillac Brougham 1987 to 1992
Cadillac Commercial Chassis 1983 to 1996
Cadillac DeVille 1977 to 1984
Cadillac Fleetwood 1977 to 1996
Chevrolet Bel Air 1965 to 1981
Chevrolet Biscayne 1965 to 1972
Chevrolet Caprice 1966 to 1996
Chevrolet Chevelle 1964 to 1973
Chevrolet Chevy II 1968 to 1968
Chevrolet El Camino 1964 to 1977
Chevrolet Impala 1971 to 1985
Chevrolet Malibu 1973 to 1983
Chevrolet Monte Carlo 1970 to 1977
Chevrolet Nova 1969 to 1973
GMC Sprint 1971 to 1977
Oldsmobile 442 1964 to 1971
Oldsmobile 98 1971 to 1984
Oldsmobile Custom Cruiser 1977 to 1992
Oldsmobile Cutlass Salon 1975 to 1977
Oldsmobile Cutlass Supreme 1967 to 1977
Oldsmobile Cutlass Tiara 1976 to 1976
Oldsmobile Cutlass 1964 to 1974
Oldsmobile Delta 88 1971 to 1985
Oldsmobile F85 1964 to 1972
Oldsmobile Toronado 1971 to 1978
Oldsmobile Vista Cruiser 1973 to 1975
Pontiac Bonneville 1963 to 1981
Pontiac Catalina 1963 to 1981
Pontiac GTO 1964 to 1973
Pontiac Grand Am 1973 to 1975
Pontiac Grand LeMans 1975 to 1977
Pontiac Grand Prix 1963 to 1977
Pontiac Grand Safari 1977 to 1978
Pontiac Grandville 1971 to 1975
Pontiac Laurentian 1971 to 1981
Pontiac LeMans 1970 to 1977
Pontiac Parisienne 1971 to 1986
Pontiac Safari 1987 to 1989
Pontiac Star Chief 1963 to 1964
Pontiac Tempest 1964 to 1970
Pontiac Ventura 1971 to 1974
Weight 8.29 kg
