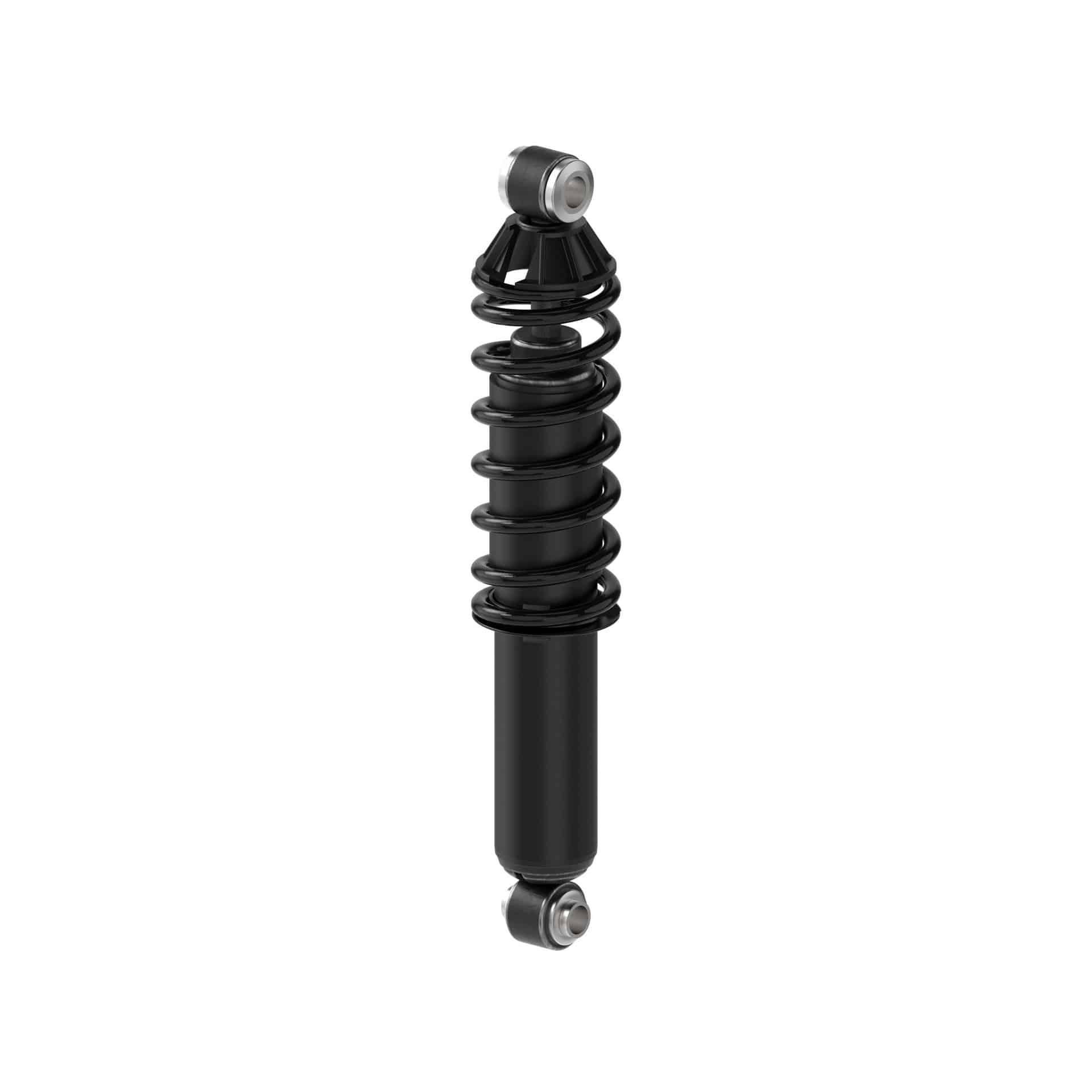

Monroe 58578 – Load Adjusting Rear Shock Absorber and Coil Spring Pack of 2

MON-58578 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Monroe Load Adjusting 58578 Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2 for Chevrolet C10

Features:

IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life

Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.

Attributes:

Shock Absorber Rod End Measuring Point	Center of Loop
Internal Rebound Bumper	No
Includes Bump Stop	No
Dust Shield Included	Yes
Rod End Code	L1/CP5
Body End Code	LS47
Travel Length	225.4
Travel Length	8.875
Extended Length	581
Extended Length	22.875
Compressed Length	355.6
Compressed Length	14
Hydraulic Lockout	No
Lower Mount Type	Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
Upper Mount Type	Loop Bushing and Cantilever Pin Mount – 5/8″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame)
Dust Shield Material	Metal
Part Description	Shock Absorber and Coil Spring Assembly
Parts Pack(s)	P00019
Shock Absorber Body End Measuring Point	Center of Loop

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1973 to 1991
Chevrolet	C10 Pickup	1973 to 1974
Chevrolet	C10 Suburban	1973 to 1986
Chevrolet	C10	1975 to 1986
Chevrolet	C20 Pickup	1973 to 1974
Chevrolet	C20 Suburban	1973 to 1986
Chevrolet	C20	1975 to 1986
Chevrolet	K10 Pickup	1973 to 1974
Chevrolet	K10 Suburban	1973 to 1986
Chevrolet	K10	1975 to 1986
Chevrolet	K20 Pickup	1973 to 1974
Chevrolet	K20 Suburban	1973 to 1986
Chevrolet	K20	1975 to 1986
Chevrolet	K5 Blazer	1975 to 1986
Chevrolet	P10 Van	1973 to 1974
Chevrolet	P10	1975 to 1980
Chevrolet	P20 Van	1973 to 1974
Chevrolet	P20	1975 to 1989
Chevrolet	R10 Suburban	1987 to 1988
Chevrolet	R10	1987 to 1987
Chevrolet	R1500 Suburban	1989 to 1991
Chevrolet	R20 Suburban	1987 to 1988
Chevrolet	R20	1987 to 1987
Chevrolet	R2500 Suburban	1989 to 1991
Chevrolet	V10	1987 to 1987
Chevrolet	V20	1987 to 1987
GMC	C15 Suburban	1975 to 1978
GMC	C15/C1500 Pickup	1973 to 1974
GMC	C15/C1500 Suburban	1973 to 1974
GMC	C1500 Suburban	1979 to 1986
GMC	C1500	1979 to 1986
GMC	C15	1975 to 1978
GMC	C25 Suburban	1975 to 1978
GMC	C25/C2500 Suburban	1973 to 1974
GMC	C2500 Suburban	1979 to 1986
GMC	C2500	1979 to 1986
GMC	C25	1975 to 1978
GMC	Jimmy	1973 to 1991
GMC	K15 Suburban	1975 to 1978
GMC	K15/K1500 Pickup	1973 to 1974
GMC	K15/K1500 Suburban	1973 to 1974
GMC	K1500 Suburban	1979 to 1986
GMC	K1500	1979 to 1986
GMC	K15	1975 to 1978
GMC	K25 Suburban	1975 to 1978
GMC	K25/K2500 Pickup	1973 to 1974
GMC	K25/K2500 Suburban	1973 to 1974
GMC	K2500 Suburban	1979 to 1986
GMC	K2500	1979 to 1986
GMC	K25	1975 to 1978
GMC	P15/P1500 Van	1973 to 1974
GMC	P1500	1979 to 1980
GMC	P15	1975 to 1978
GMC	P25/P2500 Van	1973 to 1974
GMC	P2500	1979 to 1989
GMC	P25	1975 to 1978
GMC	R1500 Suburban	1987 to 1991
GMC	R1500	1987 to 1987
GMC	R2500 Suburban	1987 to 1991
GMC	R2500	1987 to 1987
GMC	V1500	1987 to 1987
GMC	V2500	1987 to 1987
