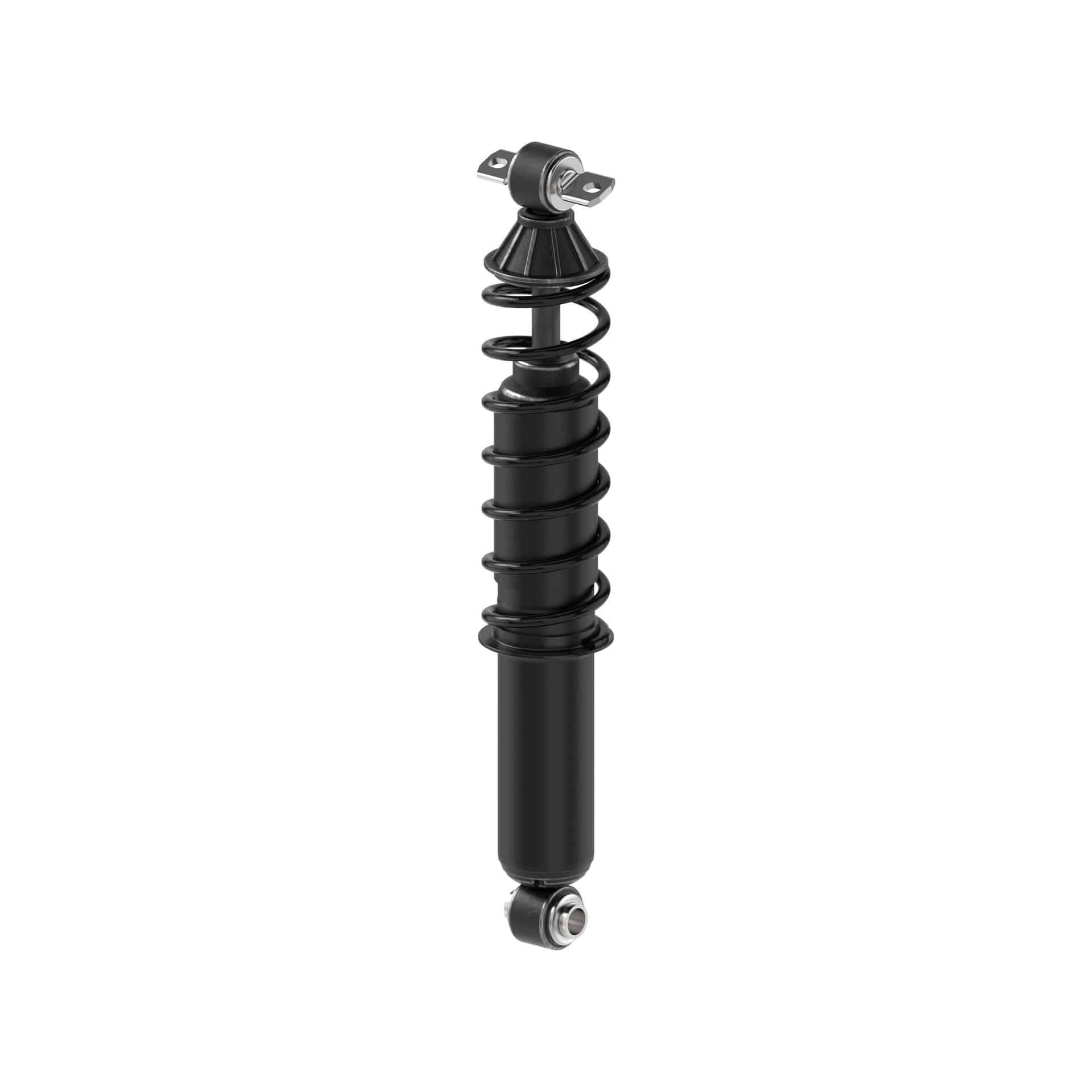

Monroe 58600 – Load Adjusting Rear Shock Absorber and Coil Spring Pack of 2

MON-58600 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Monroe Load Adjusting 58600 Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2 for Chevrolet K1500

Features:

LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade

Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.

Attributes:

Includes Bump Stop	No
Part Description	Shock Absorber and Coil Spring Assembly
Lower Mount Type	Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
Upper Mount Type	Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
Dust Shield Material	Metal
Hydraulic Lockout	No
Shock Absorber Rod End Measuring Point	Center of Cross Pin
Shock Absorber Body End Measuring Point	Center of Loop
Parts Pack(s)	None
Compressed Length	16.125
Compressed Length	409.6
Extended Length	26.75
Extended Length	679.4
Travel Length	10.625
Travel Length	269.9
Body End Code	LS47
Rod End Code	XP7
Dust Shield Included	Yes
Internal Rebound Bumper	Yes

Vehicle Applications:

Make	Model	Years
Chevrolet	C1500	1988 to 1999
Chevrolet	C2500	1988 to 2000
Chevrolet	K1500	1988 to 1999
Chevrolet	K2500	1988 to 2000
GMC	C1500	1988 to 1999
GMC	C2500	1988 to 2000
GMC	K1500	1988 to 1999
GMC	K2500	1988 to 2000
