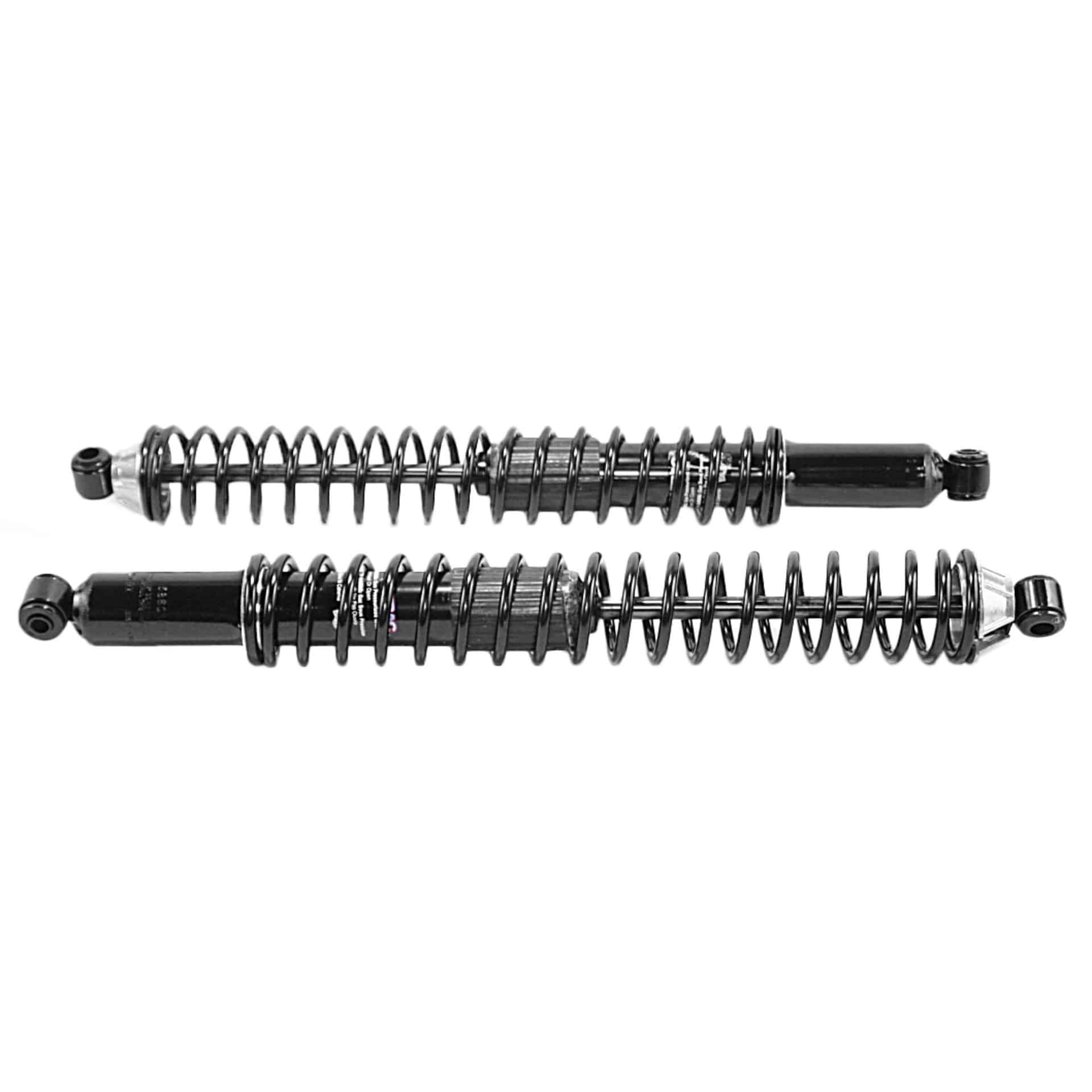

Monroe 58604 – Load Adjusting Rear Shock Absorber and Coil Spring Pack of 2

MON-58604 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Monroe Load Adjusting 58604 Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2 for Ford F-150

Features:

REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade

Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.

Attributes:

Shock Absorber Body End Measuring Point	Center of Loop
Parts Pack(s)	None
Part Description	Shock Absorber and Coil Spring Assembly
Compressed Length	15.75
Compressed Length	400
Extended Length	26.375
Extended Length	669.9
Travel Length	10.625
Travel Length	269.9
Body End Code	LS26
Rod End Code	L1
Dust Shield Included	Yes
Includes Bump Stop	No
Internal Rebound Bumper	No
Lower Mount Type	Loop Bushing and Sleeve Mount – 12MM Sleeve ID X 1.1/2″ Sleeve OAL
Upper Mount Type	Loop Bushing Mount – 5/8″ Bushing ID X 1.5/16″ Bushing OAL
Dust Shield Material	Metal
Hydraulic Lockout	No
Shock Absorber Rod End Measuring Point	Center of Loop
