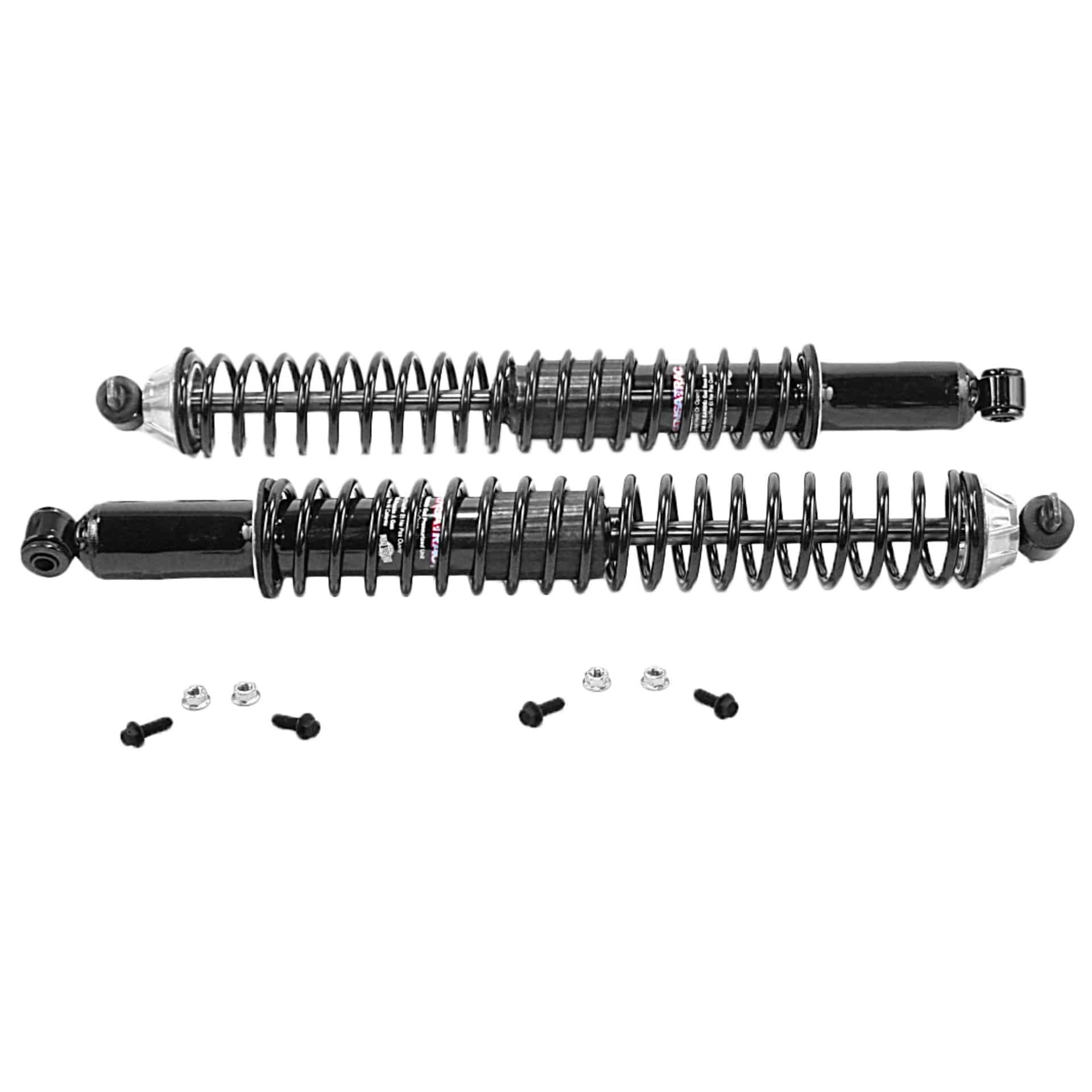

Monroe 58617 – Load Adjusting Rear Shock Absorber and Coil Spring Pack of 2

MON-58617 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Monroe Load Adjusting 58617 Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2 for Ford Explorer

Features:

IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life

Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.

Attributes:

Shock Absorber Rod End Measuring Point	Center of Cross Pin
Upper Mount Type	Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
Lower Mount Type	Loop Bushing and Sleeve Mount – 12MM Sleeve ID X 1.1/2″ Sleeve OAL
Hydraulic Lockout	No
Dust Shield Material	Metal
Internal Rebound Bumper	Yes
Includes Bump Stop	No
Dust Shield Included	Yes
Rod End Code	XP7
Body End Code	LS26
Travel Length	244.5
Travel Length	9.625
Extended Length	638.2
Extended Length	25.125
Compressed Length	393.7
Compressed Length	15.5
Shock Absorber Body End Measuring Point	Center of Loop
Parts Pack(s)	P00941
Part Description	Shock Absorber and Coil Spring Assembly

Vehicle Applications:

Make	Model	Years
Ford	Explorer Sport Trac	2001 to 2005
Ford	Explorer Sport	2001 to 2003
Ford	Explorer	1991 to 2001
Mazda	Navajo	1991 to 1994
Mercury	Mountaineer	1997 to 2000
