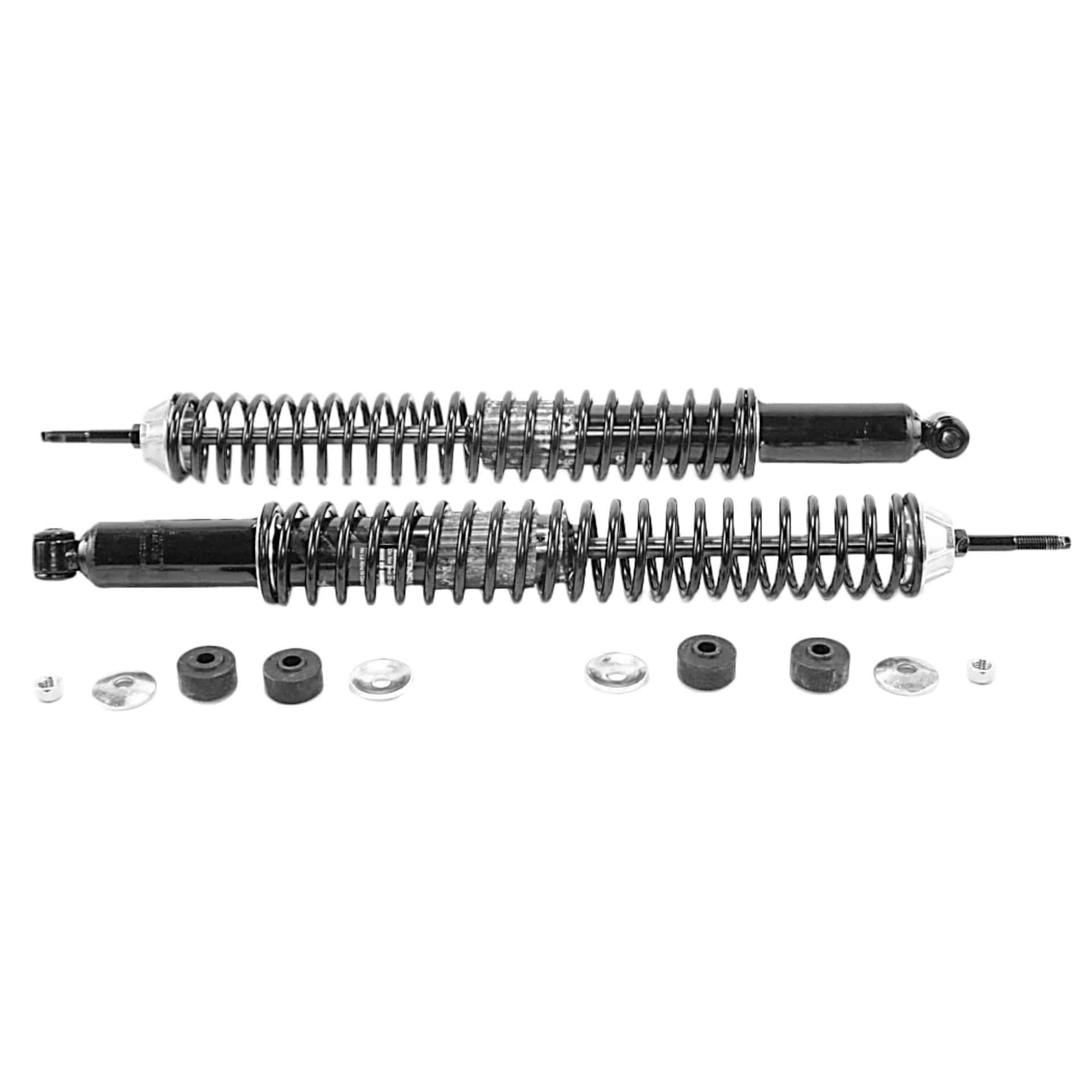

MON-58629 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2
Monroe Load Adjusting 58629 Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2 for Ford F-150
Features:
- LONGER SERVICE LIFE — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- REDUCES SAG UNDER LOAD — Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner’s manual)
- EXCEPTIONAL HANDLING — Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
Ideal for light trucks that that tow or carry varying loads, Monroe load adjusting shocks include a heavy gauge calibrated spring that adjusts to road and weight conditions to provide extra control when operating conditions get more demanding.
Attributes:
| Dust Shield Included | Yes |
| Internal Rebound Bumper | Yes |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Hydraulic Lockout | No |
| Dust Shield Material | Metal |
| Upper Mount Type | Stem Mount – 2.5/8″ Stem Length X 1/2″-13 Thread Pitch |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 12MM Sleeve ID X 1.1/2″ Sleeve OAL |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Parts Pack(s) | P01167 |
| Compressed Length | 16 |
| Compressed Length | 406.4 |
| Extended Length | 26.375 |
| Extended Length | 669.9 |
| Travel Length | 10.375 |
| Travel Length | 263.5 |
| Body End Code | LS26 |
| Rod End Code | S5 |
| Includes Bump Stop | No |
Vehicle Applications:
| Make | Model | Years |
| Ford | F-150 Heritage | 2004 to 2004 |
| Ford | F-150 | 1997 to 2003 |
