MON-65431 Magnum Front; Rear Suspension Shock Absorber

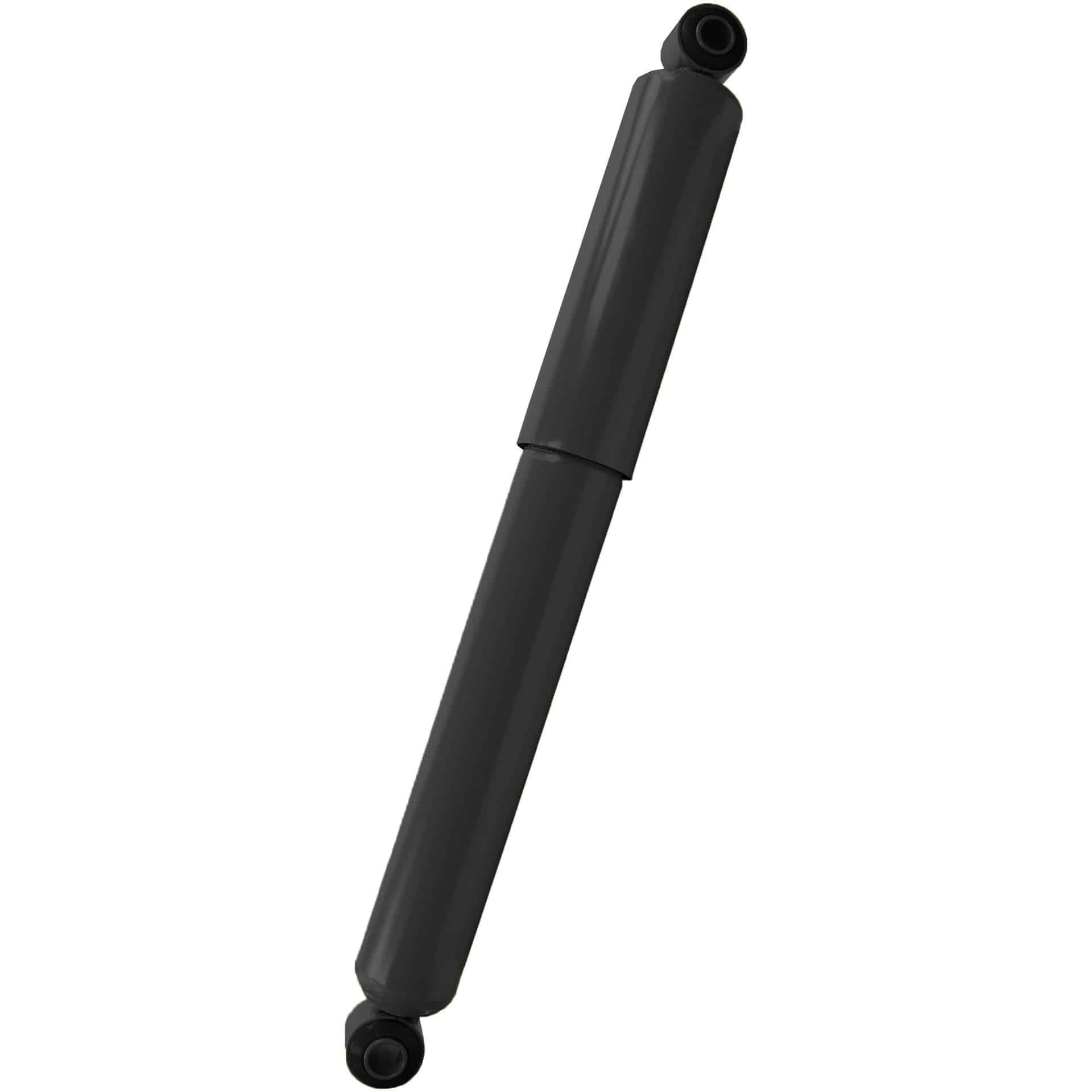

Monroe Magnum 65431 Front; Rear Suspension Shock Absorber
Features:
- REDUCED NOISE, VIBRATION AND HARSHNESS — Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- LONGER SERVICE LIFE — Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- BUILT TO LAST — Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- STRONG AND DURABLE — Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- EXCEPTIONAL HANDLING — 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- CONSISTENT RIDE — All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
- FOR HARDWORKING COMMERCIAL VEHICLES — Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE — Comes with Monroe?™s 90-day Risk Free Ride Offer and Limited Commercial Warranty
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today?™s heavy truck suspension systems.
Attributes:
| Compressed Length | 388.9 |
| Compressed Length | 15.31 |
| Includes Bump Stop | No |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 3/4″ Sleeve ID X 1.3/4″ Sleeve OAL |
| Lower Mount Code | LS54 |
| Upper Mount Type | Loop Bushing and Sleeve Mount – 3/4″ Sleeve ID X 1.3/4″ Sleeve OAL |
| Upper Mount Code | LS54 |
| Dust Shield Material | Metal |
| Dust Shield Included | Yes |
| Finish | Painted |
| Color | Black |
| Parts Pack(s) | None |
| 9786 | 69.1 |
| 9786 | 2.72 |
| 9801 | 44.5 |
| 9801 | 1.75 |
| 9792 | Yes |
| Part Description | Shock Absorber |
| Adjustable Damping | No |
| 3085 | Twin Tube |
| Shaft Diameter | 18 |
| Body Diameter | 2.38 |
| Body Diameter | 60.5 |
| Internal Rebound Bumper | No |
| Gas Charged | Yes |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Travel Length | 228.7 |
| Travel Length | 9.003 |
| Extended Length | 617.5 |
| Extended Length | 24.3125 |
Vehicle Applications:
| Make | Model | Years |
| to |
