Monroe 65552 – 1 Pair Magnum Rear Suspension Shock Absorbers

MON-65552 Magnum Rear Suspension Shock Absorber

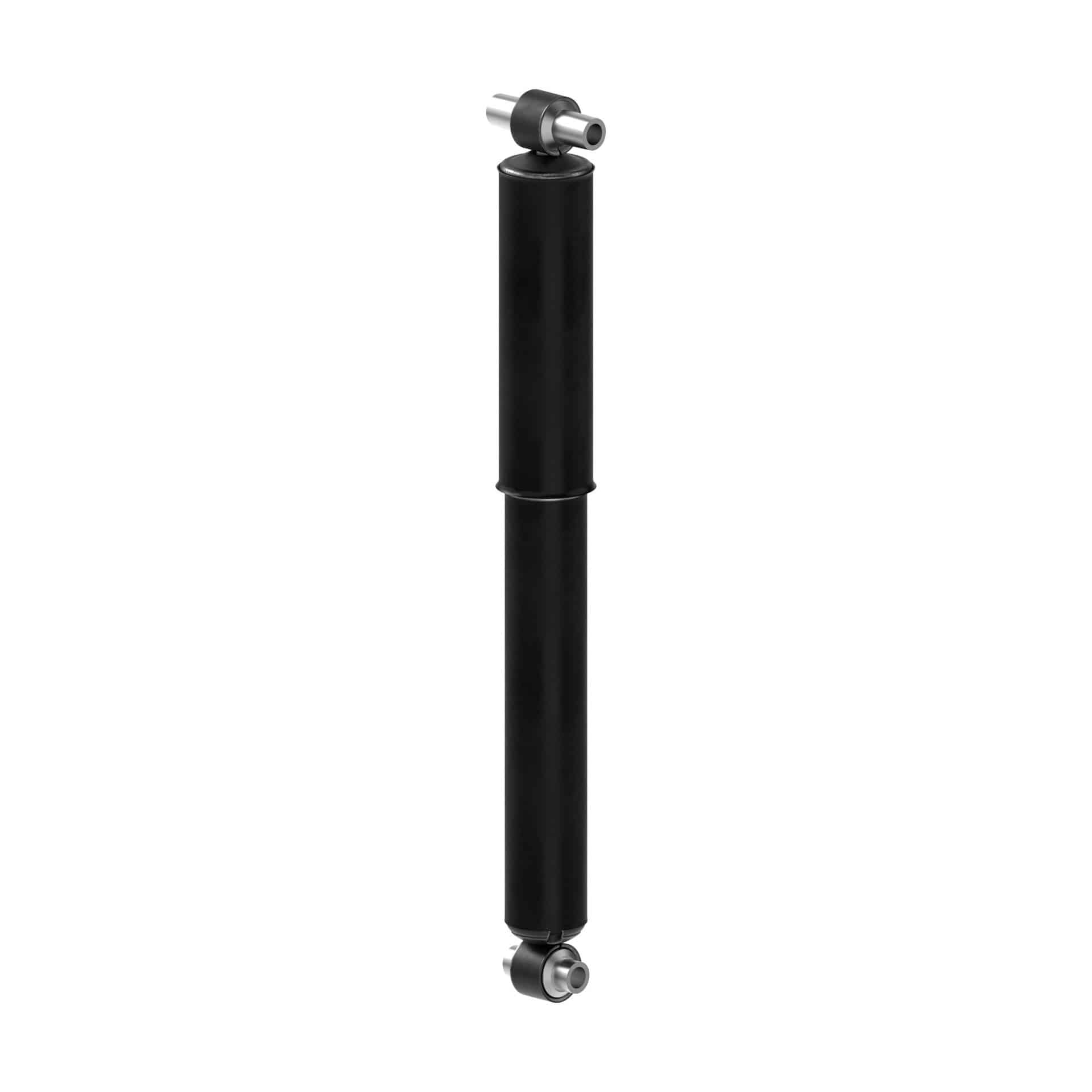

Monroe Magnum 65552 Rear Suspension Shock Absorber

Features:

CONSISTENT RIDE — All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
FOR HARDWORKING COMMERCIAL VEHICLES — Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
BUY WITH CONFIDENCE — Comes with Monroe?™s 90-day Risk Free Ride Offer and Limited Commercial Warranty
IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
REDUCED NOISE, VIBRATION AND HARSHNESS — Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
LONGER SERVICE LIFE — Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
BUILT TO LAST — Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
STRONG AND DURABLE — Shouldered bushing and bonded bushing with sleeve helps prevent walkout for improved quality (most applications); resistance arc welds, and/or arc welds up to 360° for durability
EXCEPTIONAL HANDLING — 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)

Product Video – YouTube
Product Video – YouTube

The Monroe® Magnum® shock absorber for class 6-8 vehicles is a gas-charged, large-bore shock specifically designed for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today?™s heavy truck suspension systems. Its extra-large piston bore is engineered to handle the demands of high mileage and severe use. When combined, the gas charge and large bore provide the consistent control necessary for demanding truck suspensions.

Attributes:

Internal Rebound Bumper	No
Lower Mount Type	Loop Bushing and Sleeve Mount – 5/8″-16mm Sleeve ID X 2 9/16″ Sleeve OAL
Lower Mount Code	LS62
Upper Mount Type	Loop Bushing and Sleeve Mount – 5/8″-16mm Sleeve ID X 4″ Sleeve OAL
Upper Mount Code	LS61
Parts Pack(s)	None
9792	Yes
Includes Bump Stop	No
Dust Shield Included	Yes
Body Diameter	2.38
Body Diameter	60.5
Travel Length	9.52
Extended Length	628.1
Extended Length	24.73
Compressed Length	395.2
Compressed Length	15.56
Shock Absorber Body End Measuring Point	Center of Loop
Shock Absorber Rod End Measuring Point	Center of Loop
Travel Length	241.8
