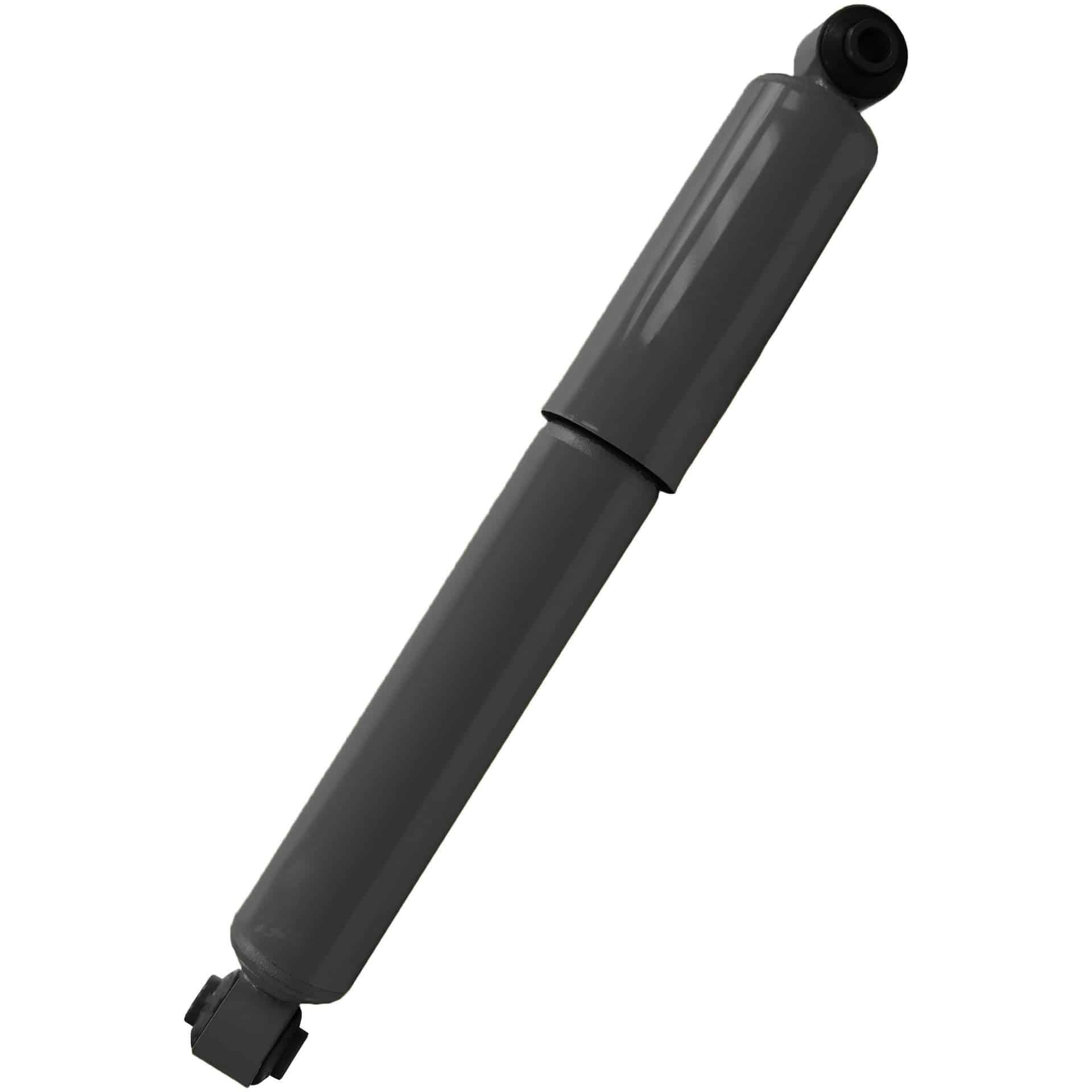

MON-66422 Magnum Front Suspension Shock Absorber
Monroe Magnum 66422 Front Suspension Shock Absorber
Features:
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- FOR HARDWORKING COMMERCIAL VEHICLES — Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- CONSISTENT RIDE — All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING — 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE — Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST — Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
- LONGER SERVICE LIFE — Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS — Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
- BUY WITH CONFIDENCE — Comes with Monroe?™s 90-day Risk Free Ride Offer and Limited Commercial Warranty
The Monroe® Magnum® shock absorber for class 3-6 vehicles is gas-charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Attributes:
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | No |
| Gas Charged | Yes |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Travel Length | 178.6 |
| Travel Length | 7.032 |
| Extended Length | 515.9 |
| Extended Length | 20.3125 |
| Compressed Length | 337.3 |
| Compressed Length | 13.2813 |
| Part Description | Shock Absorber |
| 9792 | Yes |
| Parts Pack(s) | None |
| Upper Mount Code | LS53 |
| Upper Mount Type | Loop Bushing and Sleeve Mount – 5/8″ Sleeve ID X 2″ Sleeve OAL |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 5/8″-16MM Sleeve ID X 2″ Sleeve OAL |
| Lower Mount Code | LS53 |
Vehicle Applications:
| Make | Model | Years |
| to |
