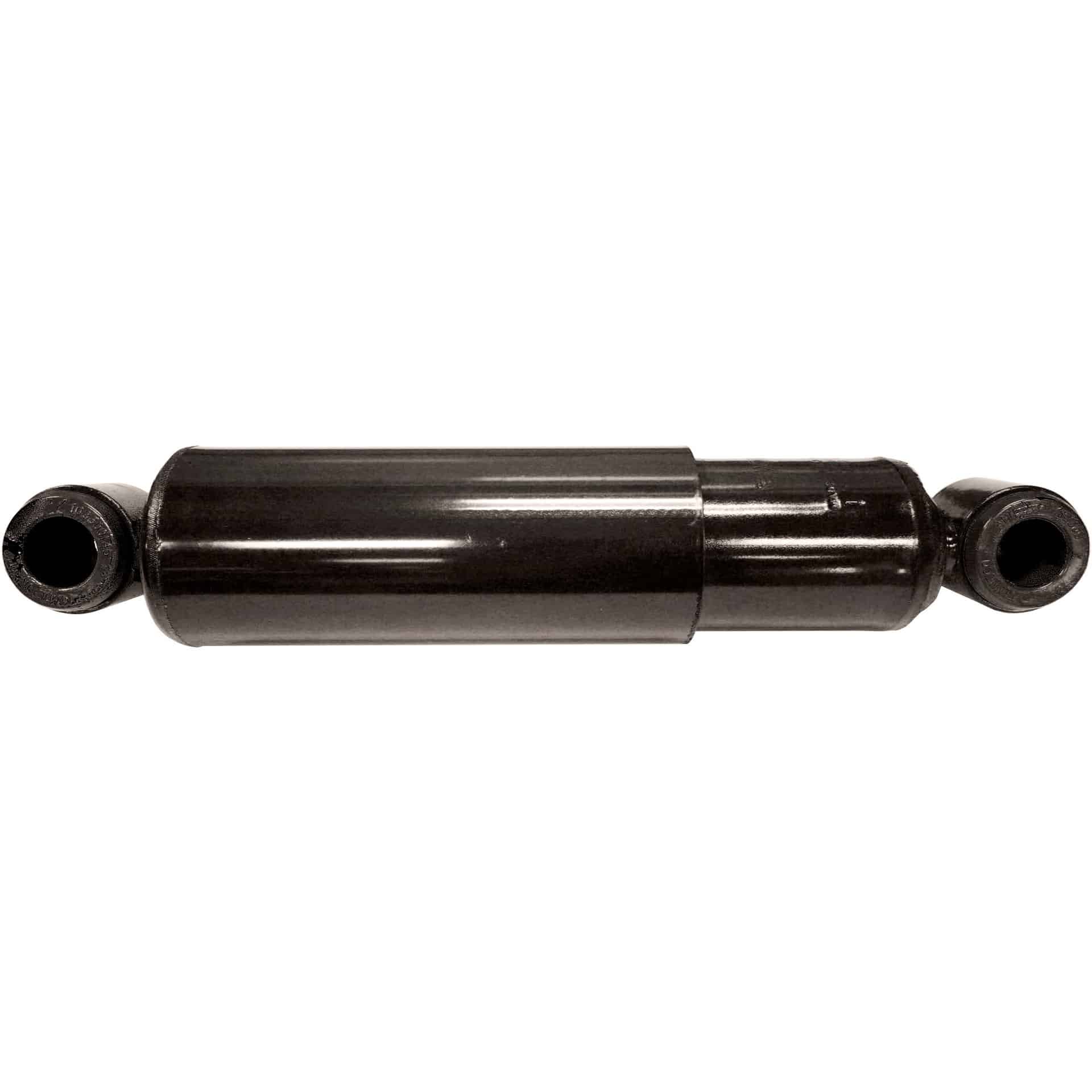

Monroe 74025 – 1 Pair Magnum Rear; Front Shock Absorbers

£111.95 Inc VAT

- +

MON-74025 Magnum Rear; Front Suspension Shock Absorber

Monroe Magnum 74025 Rear; Front Suspension Shock Absorber

Features:

  • LONGER SERVICE LIFE — Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • BUILT TO LAST — Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
  • STRONG AND DURABLE — Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • EXCEPTIONAL HANDLING — 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
  • CONSISTENT RIDE — All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4-in. reserve tube holds more fluid to improve performance (when required)
  • FOR HARDWORKING TRANSIT BUSES — Designed to handle the demands of high mileage and severe use transit buses
  • BUY WITH CONFIDENCE — Comes with Monroe?™s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • REDUCED NOISE, VIBRATION AND HARSHNESS — Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions



Tough Monroe® Magnum® shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.



Attributes:

Shock Absorber Rod End Measuring Point Center of Loop
Shaft Diameter 18
Finish Painted
Color Black
Internal Rebound Bumper No
Gas Charged No
Shock Absorber Body End Measuring Point Center of Loop
3085 Twin Tube
Travel Length 226.1
Travel Length 8.9
Extended Length 622.8
Extended Length 24.52
Compressed Length 396.7
Compressed Length 15.62
Includes Bump Stop No
Dust Shield Material Metal
Dust Shield Included Yes
9786 80
Parts Pack(s) None
Upper Mount Code L4
Upper Mount Type Loop Bushing Mount – 1″ Bushing ID X 1.3/4″ Bushing OAL
Lower Mount Code L4
Lower Mount Type Loop Bushing Mount – 1″ Bushing ID X 1.3/4″ Bushing OAL
9786 3.15
9801 44.5
9801 1.75
9792 Yes
Part Description Shock Absorber
Adjustable Damping No



Vehicle Applications:

Make Model Years
to
Weight 0.5 kg
