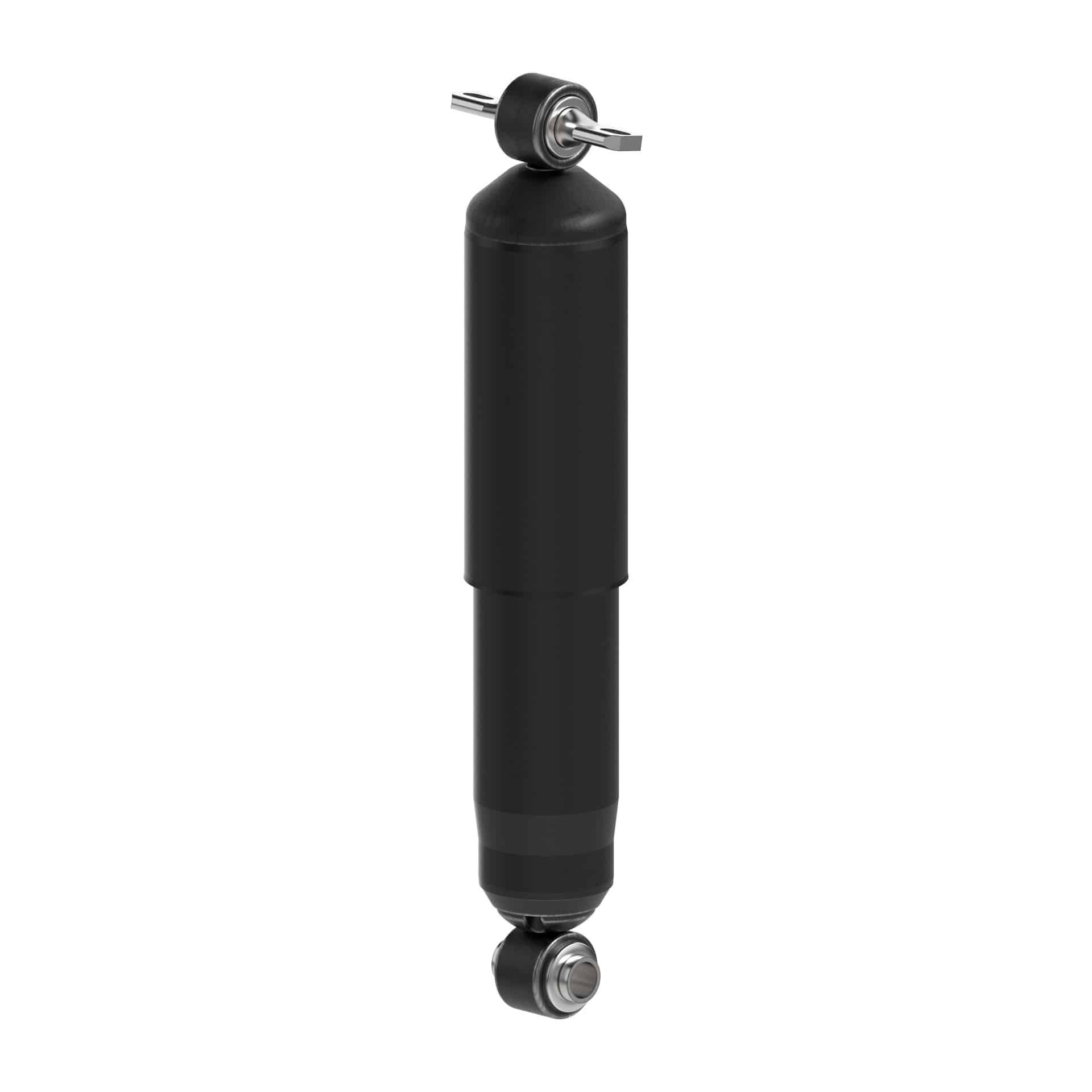

MON-911228 Reflex Rear Suspension Shock Absorber
Monroe Reflex 911228 Rear Suspension Shock Absorber for Chevrolet Colorado
Features:
- CONTROL AND DURABILITY — Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- IMPROVES STABILITY — ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
- EXCEPTIONAL HANDLING — Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONSISTENT RIDE — OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
- IMPROVES PERFORMANCE — Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- BUILT TO LAST — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE — Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference„? Guarantee
Ideal for vehicles with a higher center of gravity, Monroe® Reflex® light truck shock absorbers feature ASD valving technology that automatically adjusts the unit to absorb the impact, helping to reduce vehicle roll and dive.
Attributes:
| Dust Shield Material | Metal |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Compressed Length | 13.375 |
| Compressed Length | 339.7 |
| Includes Bump Stop | No |
| Extended Length | 21 |
| Extended Length | 533.4 |
| Dust Shield Included | Yes |
| Upper Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center) |
| Upper Mount Code | XP7 |
| Parts Pack(s) | None |
| 9792 | No |
| Part Description | Shock Absorber |
| Travel Length | 7.625 |
| Internal Rebound Bumper | No |
| Gas Charged | Yes |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Travel Length | 193.7 |
| Lower Mount Code | LS47 |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | Colorado | 2004 to 2012 |
| GMC | Canyon | 2004 to 2012 |
| Isuzu | i-280 | 2006 to 2006 |
| Isuzu | i-290 | 2007 to 2008 |
