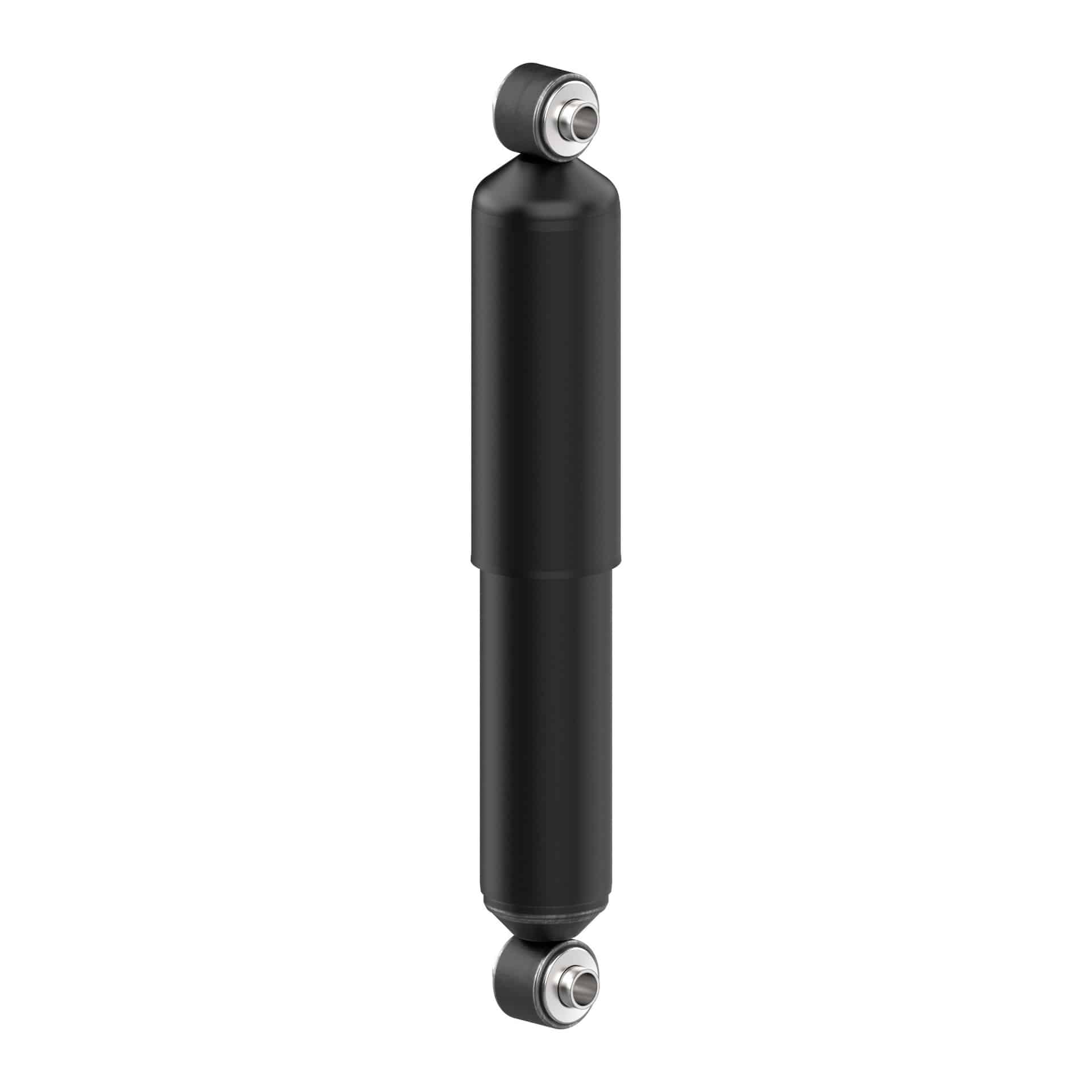

MON-911258 Reflex Rear Suspension Shock Absorber
Monroe Reflex 911258 Rear Suspension Shock Absorber for Chevrolet Equinox
Features:
- BUY WITH CONFIDENCE — Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference„? Guarantee
- BUILT TO LAST — Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- IMPROVES PERFORMANCE — Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- CONTROL AND DURABILITY — Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE — OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
- EXCEPTIONAL HANDLING — Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- IMPROVES STABILITY — ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
Ideal for vehicles with a higher center of gravity, Monroe® Reflex® light truck shock absorbers feature ASD valving technology that automatically adjusts the unit to absorb the impact, helping to reduce vehicle roll and dive.
Attributes:
| Compressed Length | 13.625 |
| Compressed Length | 346.1 |
| Extended Length | 21.75 |
| Dust Shield Material | Metal |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 1/2″ Sleeve ID X 1.11/16″ Sleeve OAL |
| Lower Mount Code | LS40 |
| 9792 | No |
| Part Description | Shock Absorber |
| Upper Mount Type | Loop Bushing and Sleeve Mount – 1/2″ Sleeve ID X 1.11/16″ Sleeve OAL |
| Upper Mount Code | LS40 |
| Gas Charged | Yes |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Travel Length | 206.4 |
| Travel Length | 8.125 |
| Extended Length | 552.4 |
| Parts Pack(s) | None |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Dust Shield Included | Yes |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | Captiva Sport | 2008 to 2013 |
| Chevrolet | Equinox | 2005 to 2017 |
| GMC | Terrain | 2010 to 2017 |
| Pontiac | Torrent | 2006 to 2009 |
| Saturn | Vue | 2002 to 2010 |
| Suzuki | XL-7 | 2007 to 2009 |
