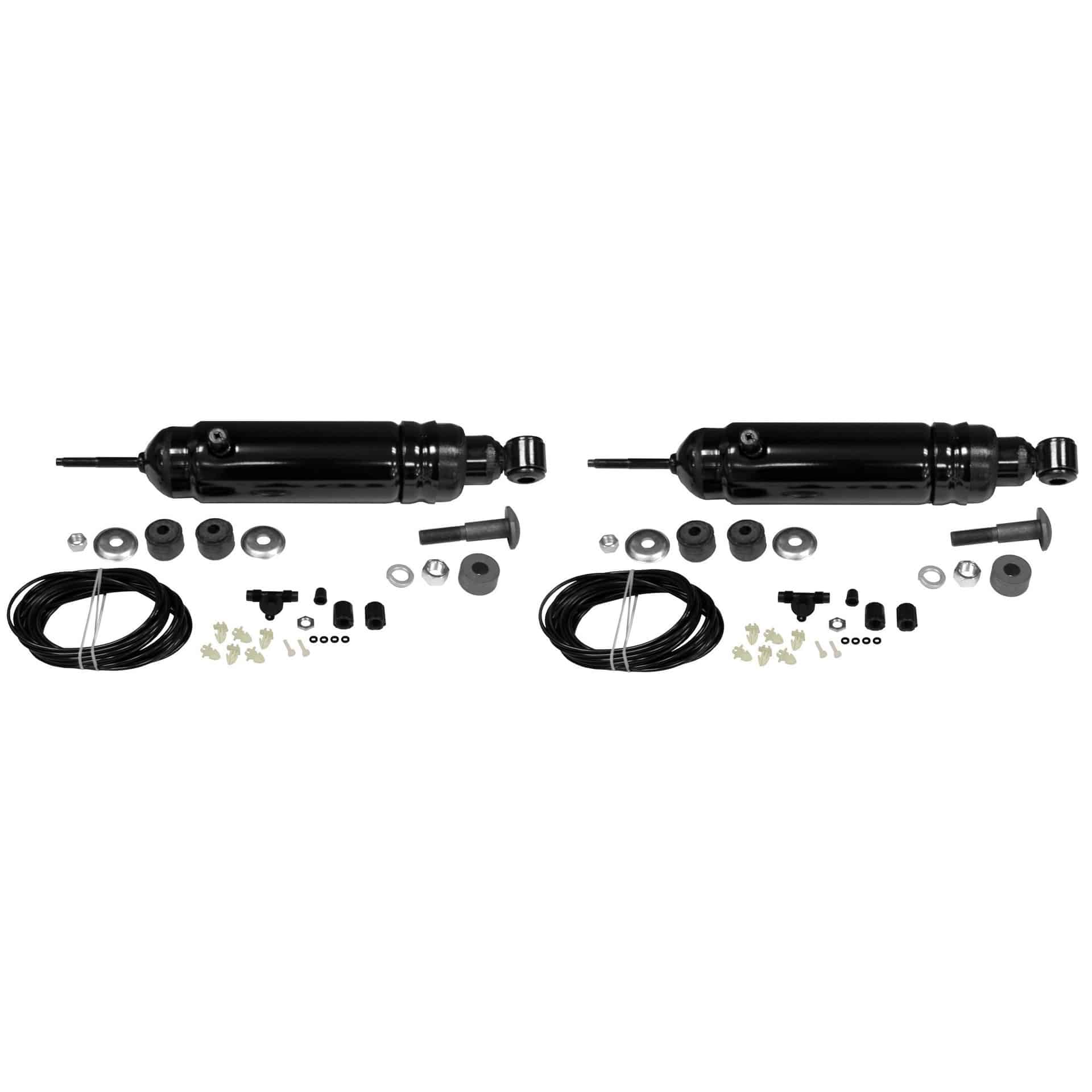

MON-MA700 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA700 Air Adjustable Air Shock Absorber Pack of 2 for Ford LTD
Features:
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Dust Shield Included | Yes |
| Internal Rebound Bumper | No |
| Includes Bump Stop | Yes |
| Body End Code | L1/CP3 |
| Parts Pack(s) | P00576,P01134 |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame) |
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Upper Mount Type | Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch |
| Part Description | Air Shock Absorber |
| Extended Length | 542.9 |
| Travel Length | 8.625 |
| Travel Length | 219.1 |
| Dust Shield Material | Rubber |
| Compressed Length | 12.75 |
| Compressed Length | 323.8 |
| Extended Length | 21.375 |
| Upper Mount Code | S4 |
Vehicle Applications:
| Make | Model | Years |
| American Motors | Ambassador | 1958 to 1969 |
| American Motors | Eagle | 1980 to 1988 |
| American Motors | Marlin | 1965 to 1967 |
| American Motors | Rambler | 1958 to 1969 |
| American Motors | Rebel | 1958 to 1969 |
| Buick | Invicta | 1959 to 1960 |
| Buick | LeSabre | 1959 to 1960 |
| Cadillac | Eldorado | 1953 to 1954 |
| Cadillac | Series 60 Fleetwood | 1952 to 1954 |
| Cadillac | Series 62 | 1952 to 1954 |
| Cadillac | Series 75 Fleetwood | 1952 to 1954 |
| Chevrolet | Bel Air | 1953 to 1957 |
| Chevrolet | Fleetline Truck | 1949 to 1952 |
| Chevrolet | Fleetline | 1949 to 1952 |
| Chevrolet | One-Fifty Series | 1953 to 1957 |
| Chevrolet | Two-Ten Series | 1953 to 1957 |
| Ford | Custom 500 | 1965 to 1977 |
| Ford | Custom | 1965 to 1972 |
| Ford | Galaxie 500 | 1965 to 1974 |
| Ford | Galaxie | 1965 to 1967 |
| Ford | LTD | 1967 to 1978 |
| Ford | Thunderbird | 1967 to 1971 |
| Lincoln | Continental | 1970 to 1979 |
| Lincoln | Mark III | 1968 to 1971 |
| Mercury | Colony Park | 1965 to 1974 |
| Mercury | Cyclone | 1965 to 1967 |
| Mercury | Grand Marquis | 1975 to 1978 |
| Mercury | Marauder | 1965 to 1970 |
| Mercury | Marquis | 1967 to 1978 |
| Mercury | Monterey | 1965 to 1974 |
| Mercury | Park Lane | 1966 to 1968 |
| Nash | Rambler | 1956 to 1957 |
