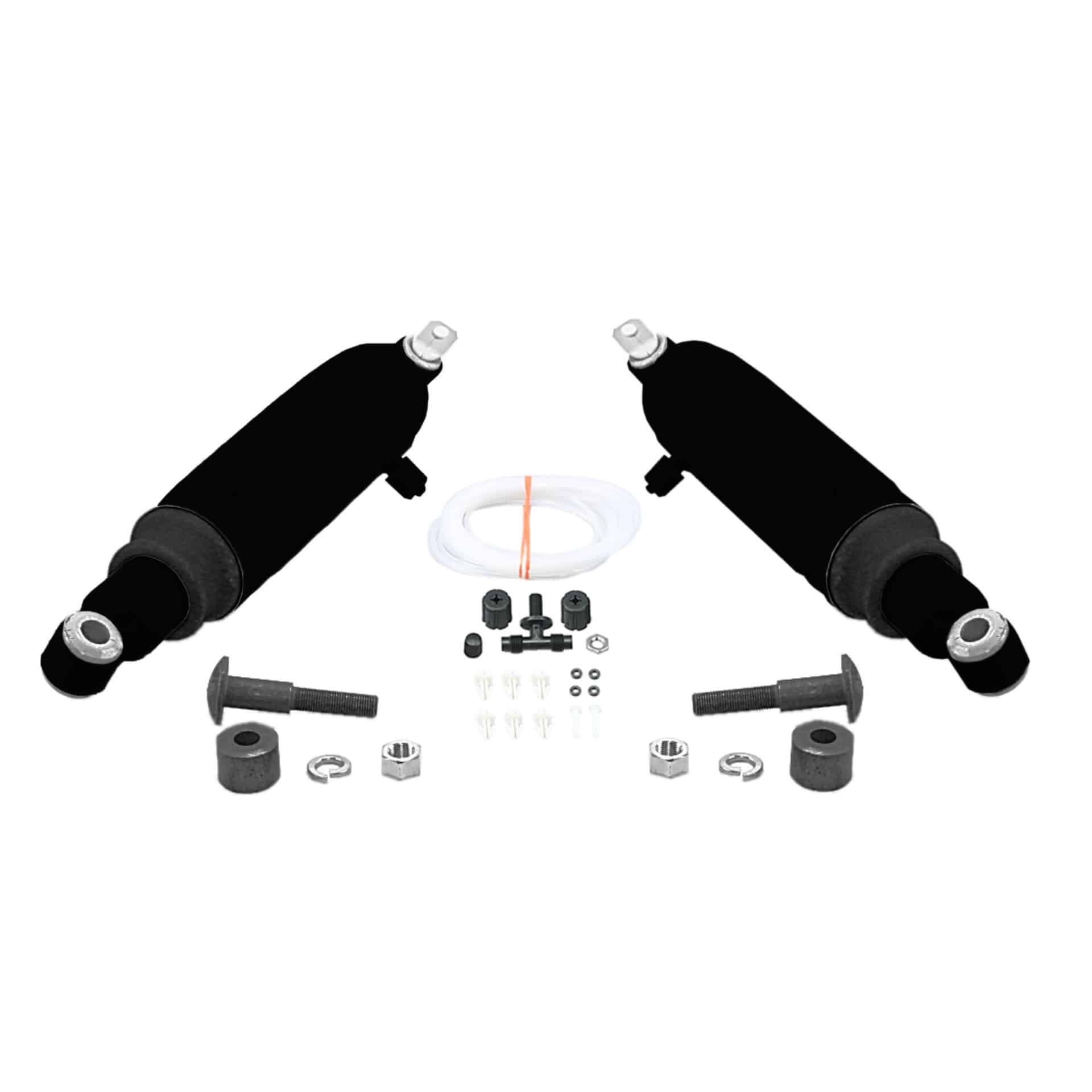

Monroe MA702 – Max-Air Air Adjustable Air Shock Absorber Pack of 2

£188.95 Inc VAT

- +

MON-MA702 Max-Air Air Adjustable Air Shock Absorber Pack of 2

Monroe Max-Air MA702 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet Bel Air

Features:

  • CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
  • EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
  • EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
  • BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
  • MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)



Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)



Attributes:

Body End Code L1/CP4
Upper Mount Type Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
Dust Shield Material Rubber
Includes Bump Stop Yes
Internal Rebound Bumper No
Dust Shield Included Yes
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Center of Cross Pin
Hydraulic Lockout No
Lower Mount Type Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 1/2″ Stud Length (Center of Loop to Frame)
Part Description Air Shock Absorber
Parts Pack(s) (2) P00072
Upper Mount Code XP7
Travel Length 206.4
Travel Length 8.125
Extended Length 527.1
Extended Length 20.75
Compressed Length 320.7
Compressed Length 12.625



Vehicle Applications:

Make Model Years
Buick Skylark 1964 to 1967
Buick Special 1964 to 1967
Chevrolet Bel Air 1965 to 1970
Chevrolet Biscayne 1965 to 1970
Chevrolet Caprice 1966 to 1970
Chevrolet Chevelle 1964 to 1967
Chevrolet El Camino 1964 to 1967
Oldsmobile 442 1964 to 1971
Oldsmobile Cutlass Supreme 1967 to 1967
Oldsmobile Cutlass 1964 to 1967
Oldsmobile F85 1964 to 1967
Pontiac Bonneville 1963 to 1964
Pontiac Catalina 1963 to 1964
Pontiac GTO 1964 to 1967
Pontiac Grand Prix 1963 to 1964
Pontiac Star Chief 1963 to 1964
Pontiac Tempest 1964 to 1967
Weight 5.29 kg
