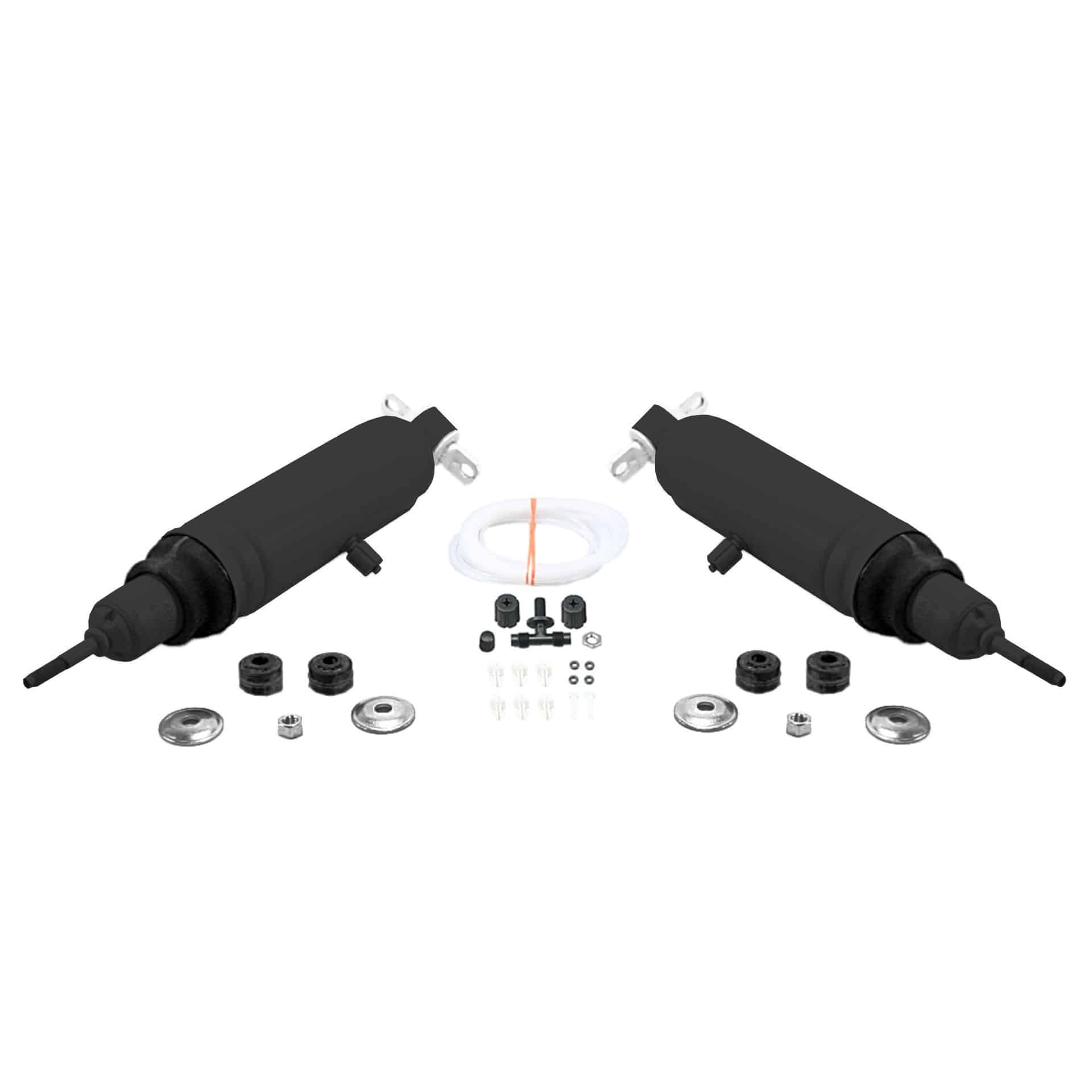

MON-MA708 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA708 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet Camaro
Features:
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Travel Length | 7.625 |
| Body End Code | S4 |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Dust Shield Included | Yes |
| Travel Length | 193.7 |
| Upper Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center) |
| Dust Shield Material | Rubber |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Hydraulic Lockout | No |
| Lower Mount Type | Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch |
| Part Description | Air Shock Absorber |
| Parts Pack(s) | (2) P01137 |
| Upper Mount Code | XP7 |
| Extended Length | 504.8 |
| Extended Length | 19.875 |
| Compressed Length | 311.2 |
| Compressed Length | 12.25 |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | Camaro | 1970 to 1981 |
| Pontiac | Firebird | 1970 to 1981 |
