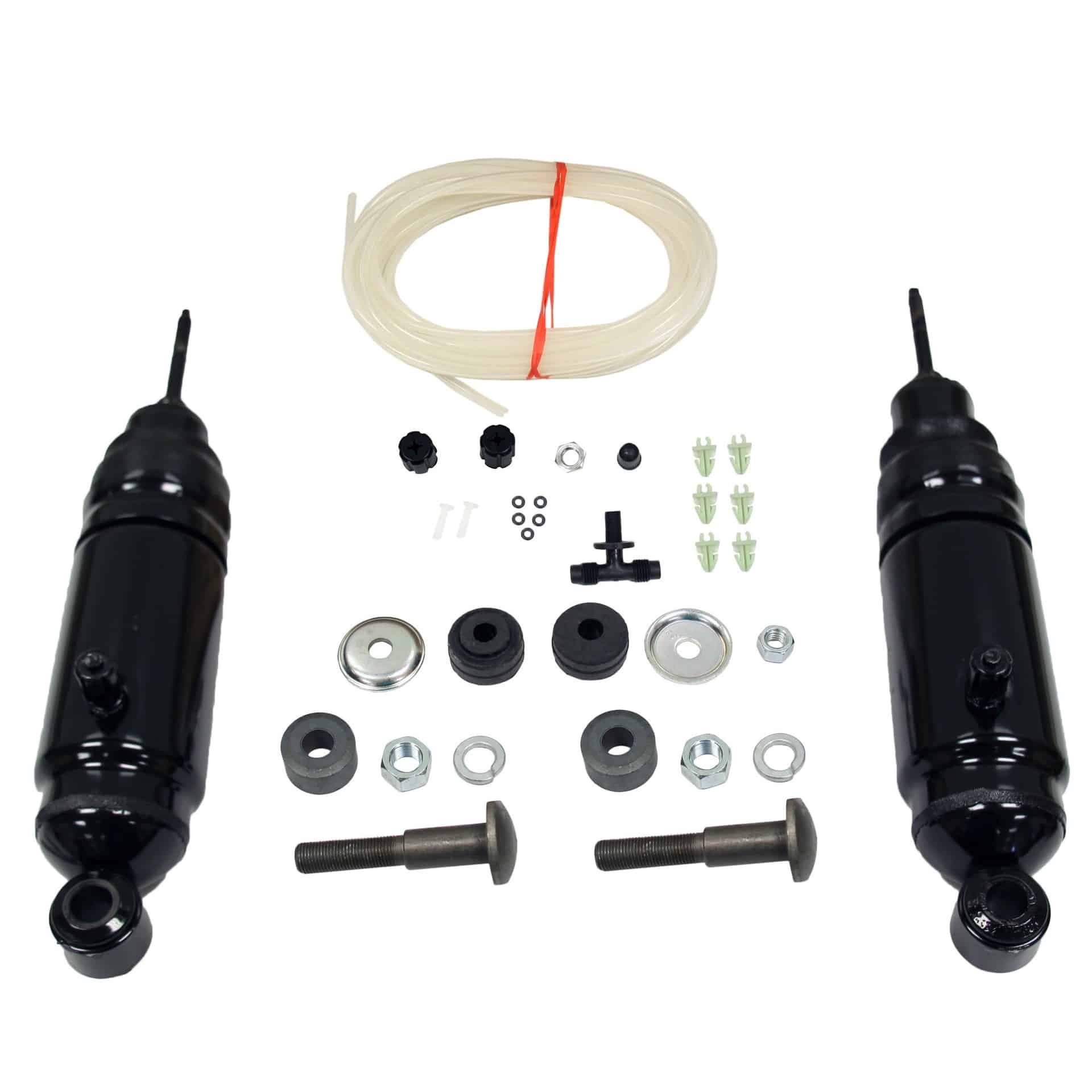

MON-MA709 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA709 Air Adjustable Air Shock Absorber Pack of 2 for Ford Maverick
Features:
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Parts Pack(s) | P00576,P01135 |
| Upper Mount Code | L1/CP1 |
| Part Description | Air Shock Absorber |
| Internal Rebound Bumper | No |
| Includes Bump Stop | Yes |
| Body End Code | S4 |
| Dust Shield Included | Yes |
| Lower Mount Type | Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch |
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Dust Shield Material | Rubber |
| Upper Mount Type | Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 1/16″ Stud Length (Center of Loop to Frame) |
| Compressed Length | 10.75 |
| Travel Length | 168.3 |
| Travel Length | 6.625 |
| Compressed Length | 273.1 |
| Extended Length | 17.375 |
| Extended Length | 441.3 |
Vehicle Applications:
| Make | Model | Years |
| Ford | Granada | 1975 to 1980 |
| Ford | Maverick | 1970 to 1977 |
| Lincoln | Versailles | 1977 to 1980 |
| Mercury | Comet | 1971 to 1977 |
| Mercury | Monarch | 1975 to 1980 |
