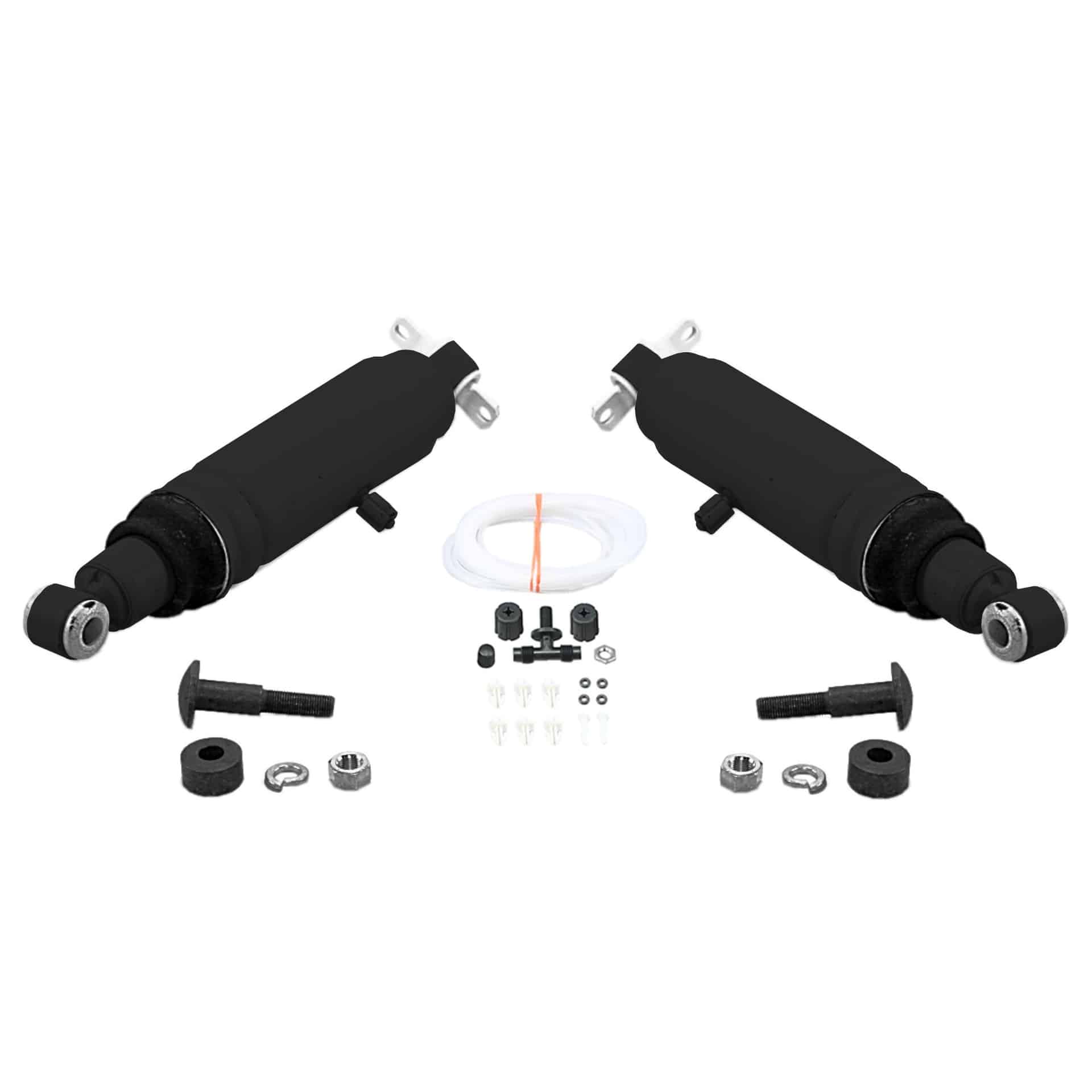

Monroe MA717 – Max-Air Air Adjustable Air Shock Absorber Pack of 2

£176.95 Inc VAT

- +

MON-MA717 Max-Air Air Adjustable Air Shock Absorber Pack of 2

Monroe Max-Air MA717 Air Adjustable Air Shock Absorber Pack of 2 for Pontiac Grand Prix

Features:

  • CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
  • MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
  • EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
  • EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
  • BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation



Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)



Attributes:

Body End Code L1/CP3
Hydraulic Lockout No
Compressed Length 12.75
Upper Mount Type Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
Dust Shield Material Rubber
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Center of Cross Pin
Part Description Air Shock Absorber
Parts Pack(s) (2) P00576
Upper Mount Code XP7
Lower Mount Type Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame)
Compressed Length 323.8
Extended Length 20.875
Extended Length 530.2
Travel Length 8.125
Travel Length 206.4
Dust Shield Included Yes
Internal Rebound Bumper No
Includes Bump Stop Yes



Vehicle Applications:

Make Model Years
Buick Century 1973 to 1977
Buick Electra 1982 to 1989
Buick Estate Wagon 1977 to 1979
Buick LeSabre 1986 to 1990
Buick Regal 1973 to 1977
Buick Roadmaster 1991 to 1996
Chevrolet Caprice 1977 to 1996
Chevrolet Chevelle 1973 to 1973
Chevrolet Impala 1977 to 1982
Chevrolet Malibu 1973 to 1977
Chevrolet Monte Carlo 1973 to 1977
Oldsmobile Custom Cruiser 1977 to 1992
Oldsmobile Cutlass Salon 1975 to 1977
Oldsmobile Cutlass Supreme 1973 to 1977
Oldsmobile Cutlass Tiara 1976 to 1976
Oldsmobile Cutlass 1973 to 1977
Pontiac Bonneville 1977 to 1981
Pontiac Catalina 1977 to 1981
Pontiac GTO 1973 to 1973
Pontiac Grand Am 1973 to 1975
Pontiac Grand LeMans 1975 to 1977
Pontiac Grand Prix 1973 to 1977
Pontiac Grand Safari 1977 to 1978
Pontiac Laurentian 1980 to 1981
Pontiac LeMans 1973 to 1977
Pontiac Parisienne 1980 to 1986
Pontiac Safari 1987 to 1989
Weight 5.06 kg
