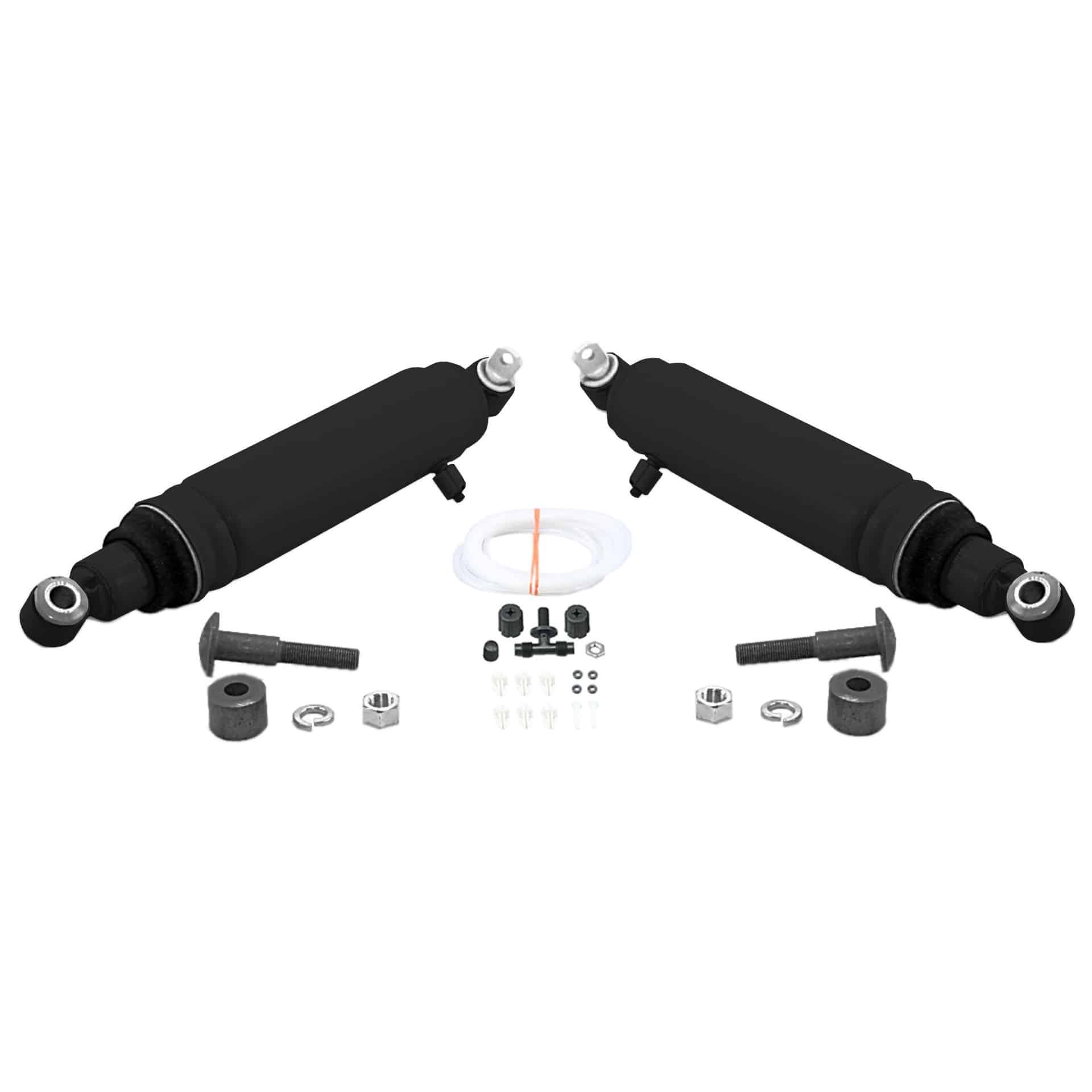

MON-MA719 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA719 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet Impala
Features:
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Hydraulic Lockout | No |
| Body End Code | L1/CP3 |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | No |
| Dust Shield Included | Yes |
| Travel Length | 235 |
| Travel Length | 9.25 |
| Extended Length | 603.3 |
| Extended Length | 23.75 |
| Compressed Length | 368.3 |
| Compressed Length | 14.5 |
| Upper Mount Code | XP7 |
| Parts Pack(s) | (2) P00576 |
| Part Description | Air Shock Absorber |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame) |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Dust Shield Material | Rubber |
| Upper Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center) |
Vehicle Applications:
| Make | Model | Years |
| Buick | Electra | 1965 to 1970 |
| Buick | Estate Wagon | 1970 to 1970 |
| Buick | LeSabre | 1965 to 1970 |
| Buick | Wildcat | 1965 to 1970 |
| Cadillac | Calais | 1971 to 1976 |
| Cadillac | DeVille | 1971 to 1976 |
| Cadillac | Fleetwood | 1971 to 1976 |
| Chevrolet | Impala | 1965 to 1970 |
| Oldsmobile | 98 | 1965 to 1970 |
| Oldsmobile | Delmont 88 | 1967 to 1968 |
| Oldsmobile | Delta 88 | 1965 to 1970 |
| Oldsmobile | Jetstar 88 | 1965 to 1966 |
| Oldsmobile | Starfire | 1965 to 1966 |
| Pontiac | Bonneville | 1965 to 1970 |
| Pontiac | Catalina | 1965 to 1970 |
| Pontiac | Executive | 1967 to 1970 |
| Pontiac | Grand Prix | 1965 to 1968 |
| Pontiac | Star Chief | 1965 to 1966 |
