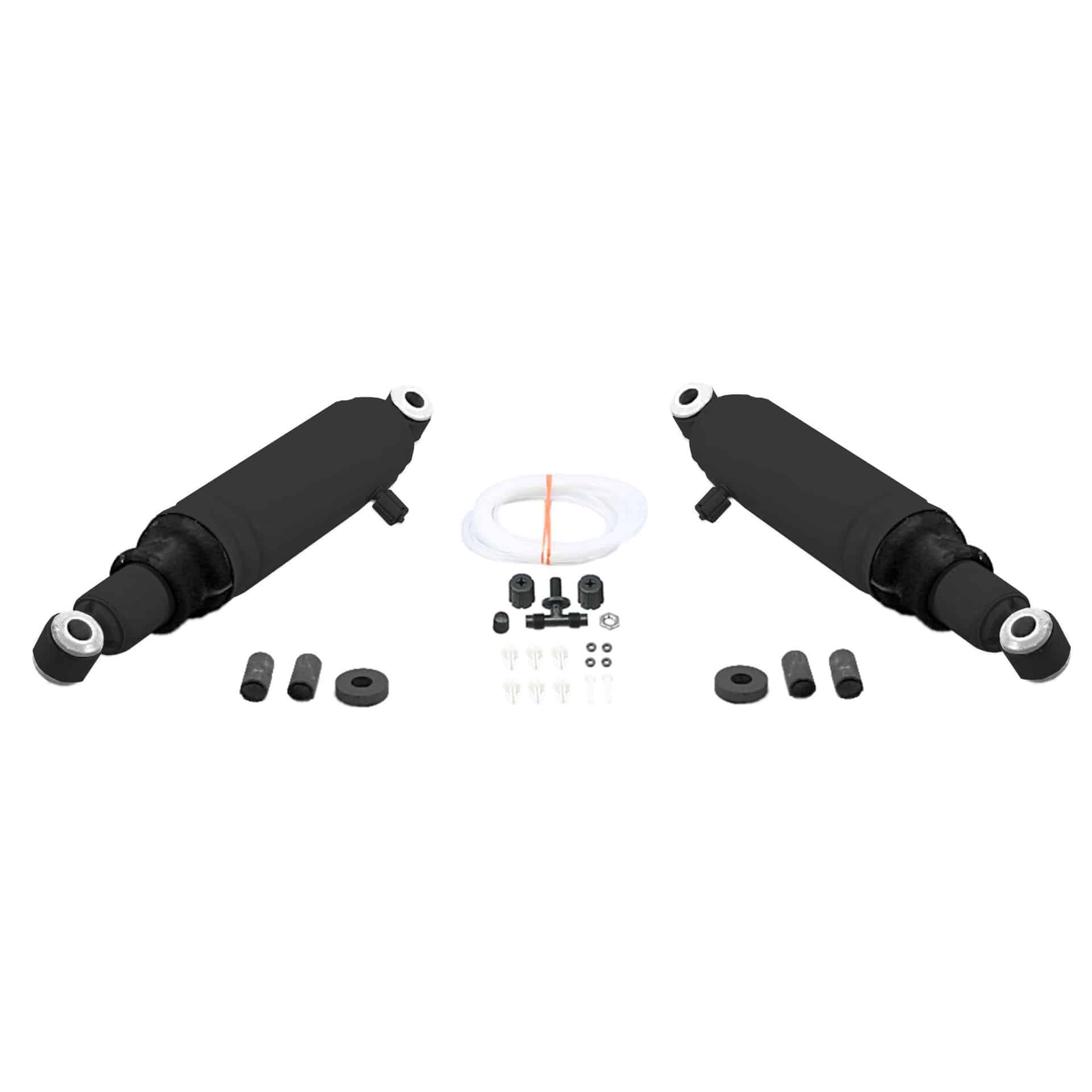

MON-MA728 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA728 Air Adjustable Air Shock Absorber Pack of 2 for Isuzu Pickup
Features:
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Includes Bump Stop | No |
| Extended Length | 23.375 |
| Compressed Length | 362 |
| Travel Length | 9.125 |
| Body End Code | L1/CP3 |
| Part Description | Air Shock Absorber |
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Dust Shield Material | Rubber |
| Upper Mount Code | L1/CP5 |
| Parts Pack(s) | (2) P00572,(4) P00576 |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame) |
| Extended Length | 593.7 |
| Upper Mount Type | Loop Bushing and Cantilever Pin Mount – 5/8″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame) |
| Travel Length | 231.8 |
| Compressed Length | 14.25 |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | No |
Vehicle Applications:
| Make | Model | Years |
| Cadillac | Calais | 1965 to 1970 |
| Cadillac | DeVille | 1965 to 1970 |
| Cadillac | Eldorado | 1965 to 1966 |
| Cadillac | Fleetwood | 1966 to 1970 |
| Isuzu | Pickup | 1981 to 1995 |
| Toyota | Land Cruiser | 1971 to 1987 |
