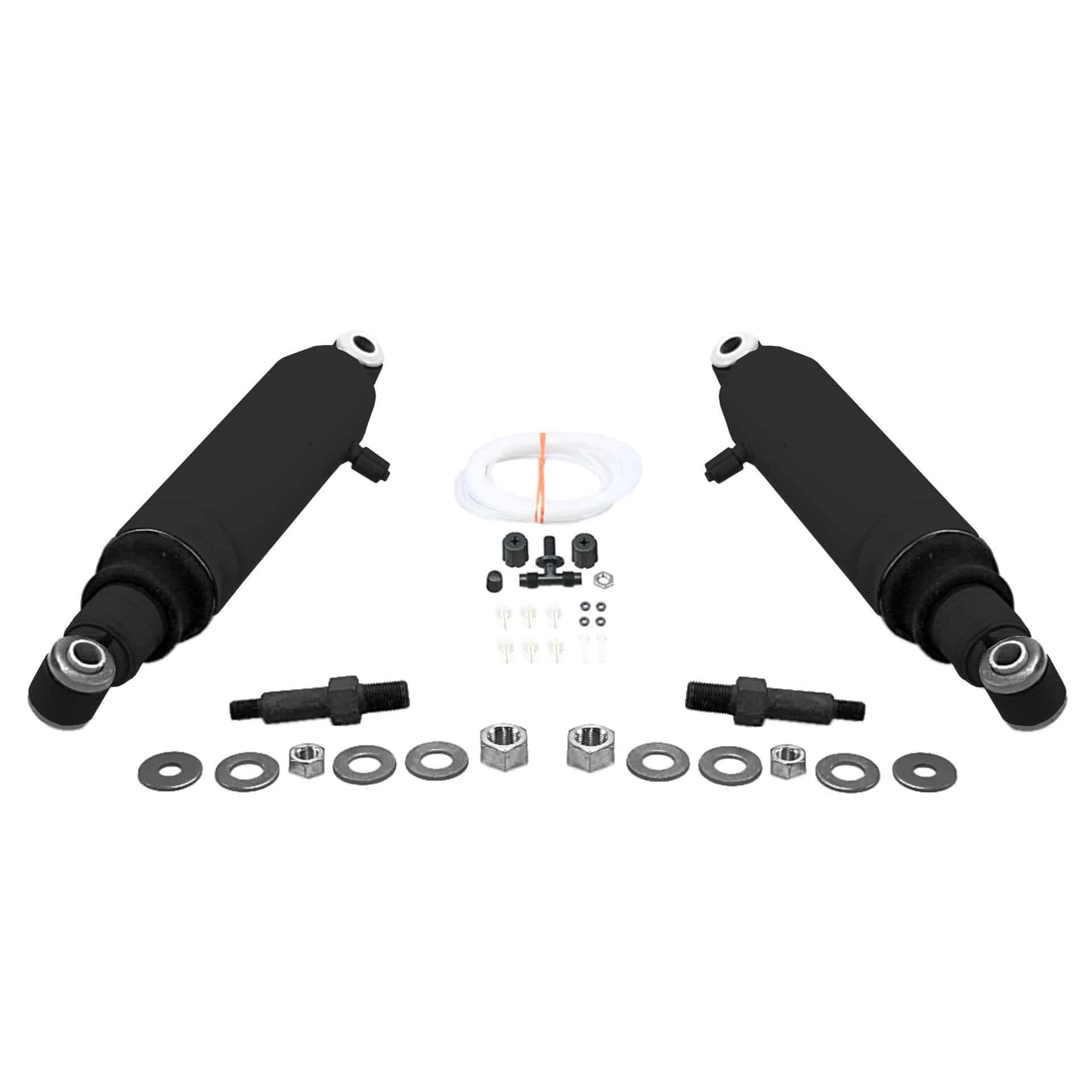

Monroe MA743 – Max-Air Air Adjustable Air Shock Absorber Pack of 2

£184.95 Inc VAT

- +

MON-MA743 Max-Air Air Adjustable Air Shock Absorber Pack of 2

Monroe Max-Air MA743 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet C10

Features:

  • MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
  • EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
  • EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
  • BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
  • CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction



Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)



Attributes:

Includes Bump Stop Yes
Body End Code LS47
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Dust Shield Material Rubber
Travel Length 228.6
Travel Length 9
Extended Length 584.2
Extended Length 23
Compressed Length 355.6
Compressed Length 14
Upper Mount Code L1/CP5
Parts Pack(s) (2) P00019
Part Description Air Shock Absorber
Upper Mount Type Loop Bushing and Cantilever Pin Mount – 5/8″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame)
Lower Mount Type Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
Hydraulic Lockout No
Dust Shield Included Yes
Internal Rebound Bumper No



Vehicle Applications:

Make Model Years
Chevrolet Blazer 1973 to 1974
Chevrolet C10 Pickup 1973 to 1974
Chevrolet C10 Suburban 1973 to 1986
Chevrolet C10 1975 to 1986
Chevrolet C20 Pickup 1973 to 1974
Chevrolet C20 Suburban 1973 to 1986
Chevrolet C20 1975 to 1986
Chevrolet K10 Pickup 1973 to 1974
Chevrolet K10 Suburban 1973 to 1986
Chevrolet K10 1975 to 1986
Chevrolet K20 Pickup 1973 to 1974
Chevrolet K20 Suburban 1973 to 1986
Chevrolet K20 1975 to 1986
Chevrolet K5 Blazer 1975 to 1982
Chevrolet P10 Van 1973 to 1974
Chevrolet P10 1975 to 1980
Chevrolet P20 Van 1973 to 1974
Chevrolet P20 1975 to 1989
Chevrolet R10 Suburban 1987 to 1988
Chevrolet R10 1987 to 1987
Chevrolet R1500 Suburban 1989 to 1991
Chevrolet R20 Suburban 1987 to 1988
Chevrolet R20 1987 to 1987
Chevrolet R2500 Suburban 1989 to 1991
Chevrolet V10 Suburban 1987 to 1988
Chevrolet V10 1987 to 1987
Chevrolet V1500 Suburban 1989 to 1991
Chevrolet V20 Suburban 1987 to 1988
Chevrolet V20 1987 to 1987
Chevrolet V2500 Suburban 1989 to 1991
GMC C15 Suburban 1975 to 1978
GMC C15/C1500 Pickup 1973 to 1974
GMC C15/C1500 Suburban 1973 to 1974
GMC C1500 Suburban 1979 to 1986
GMC C1500 1979 to 1986
GMC C15 1975 to 1978
GMC C25 Suburban 1975 to 1978
GMC C25/C2500 Suburban 1973 to 1974
GMC C2500 Suburban 1979 to 1986
GMC C2500 1979 to 1986
GMC C25 1975 to 1978
GMC Jimmy 1973 to 1982
GMC K15 Suburban 1975 to 1978
GMC K15/K1500 Pickup 1973 to 1974
GMC K15/K1500 Suburban 1973 to 1974
GMC K1500 Suburban 1979 to 1986
GMC K1500 1979 to 1986
GMC K15 1975 to 1978
GMC K25 Suburban 1975 to 1978
GMC K25/K2500 Pickup 1973 to 1974
GMC K25/K2500 Suburban 1973 to 1974
GMC K2500 Suburban 1979 to 1986
GMC K2500 1979 to 1986
GMC K25 1975 to 1978
GMC P15/P1500 Van 1973 to 1974
GMC P1500 1979 to 1980
GMC P15 1975 to 1978
GMC P25/P2500 Van 1973 to 1974
GMC P2500 1979 to 1989
GMC P25 1975 to 1978
GMC R1500 Suburban 1987 to 1991
GMC R1500 1987 to 1987
GMC R2500 Suburban 1987 to 1991
GMC R2500 1987 to 1987
GMC V1500 Suburban 1987 to 1991
GMC V1500 1987 to 1987
GMC V2500 Suburban 1987 to 1991
GMC V2500 1987 to 1987
Weight 5.62 kg
