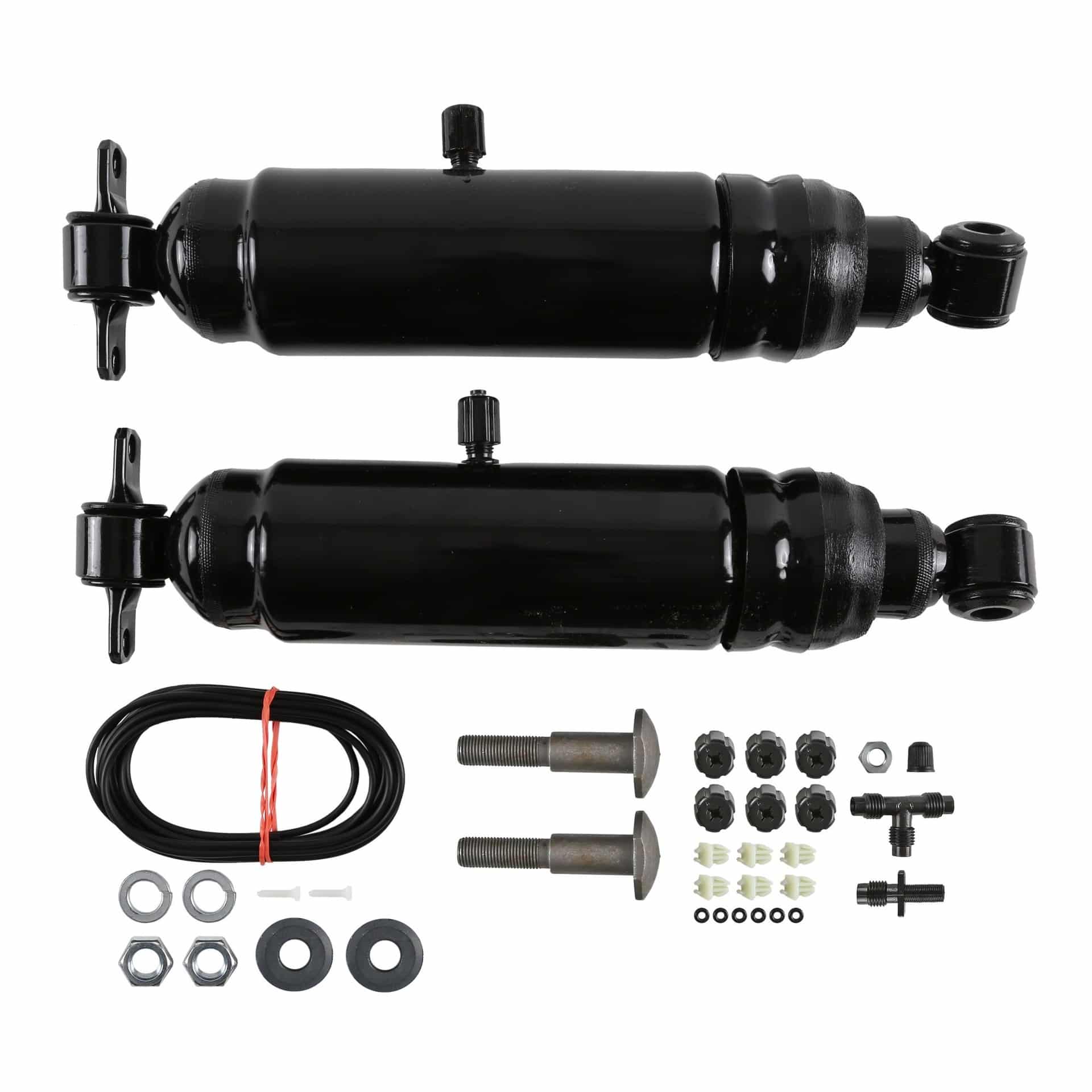

MON-MA751 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA751 Air Adjustable Air Shock Absorber Pack of 2 for Oldsmobile Delta 88
Features:
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Upper Mount Code | XP7 |
| Upper Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center) |
| Compressed Length | 330.2 |
| Extended Length | 20.625 |
| Extended Length | 523.9 |
| Travel Length | 7.625 |
| Travel Length | 193.7 |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | No |
| Includes Bump Stop | Yes |
| Body End Code | L1/CP3 |
| Dust Shield Material | Rubber |
| Compressed Length | 13 |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Hydraulic Lockout | No |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 5/16″ Stud Length (Center of Loop to Frame) |
| Part Description | Air Shock Absorber |
| Parts Pack(s) | (2) P00576 |
Vehicle Applications:
| Make | Model | Years |
| Buick | Centurion | 1971 to 1973 |
| Buick | Electra | 1971 to 1984 |
| Buick | LeSabre | 1971 to 1985 |
| Buick | Riviera | 1971 to 1978 |
| Cadillac | Commercial Chassis | 1983 to 1984 |
| Cadillac | DeVille | 1977 to 1984 |
| Cadillac | Eldorado | 1971 to 1978 |
| Cadillac | Fleetwood | 1977 to 1986 |
| Chevrolet | Bel Air | 1971 to 1981 |
| Chevrolet | Caprice | 1971 to 1981 |
| Chevrolet | Impala | 1971 to 1985 |
| Oldsmobile | 98 | 1971 to 1984 |
| Oldsmobile | Delta 88 | 1971 to 1985 |
| Oldsmobile | Toronado | 1971 to 1978 |
| Pontiac | Bonneville | 1971 to 1981 |
| Pontiac | Catalina | 1971 to 1981 |
| Pontiac | Grandville | 1971 to 1975 |
| Pontiac | Laurentian | 1971 to 1981 |
| Pontiac | Parisienne | 1971 to 1986 |
