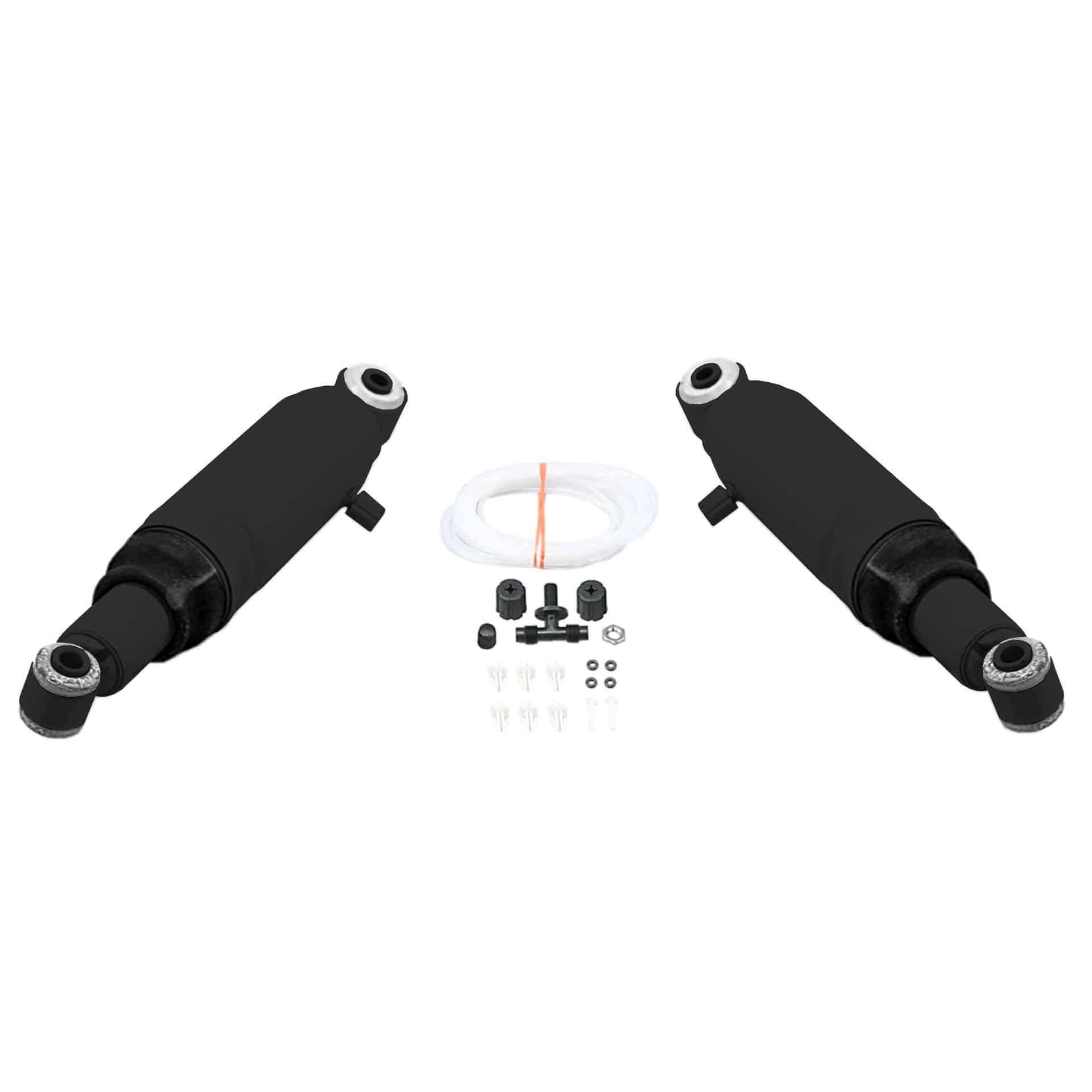

MON-MA758 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA758 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet Astro
Features:
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Dust Shield Material | Rubber |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Hydraulic Lockout | No |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 12MM Sleeve ID X 1.11/16″ Sleeve OAL |
| Parts Pack(s) | None |
| Compressed Length | 14.125 |
| Compressed Length | 358.8 |
| Extended Length | 23 |
| Extended Length | 584.2 |
| Travel Length | 8.875 |
| Travel Length | 225.4 |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | No |
| Includes Bump Stop | Yes |
| Body End Code | LS74 |
| Upper Mount Code | LS74 |
| Part Description | Air Shock Absorber |
| Upper Mount Type | Loop Bushing and Sleeve Mount – 12MM Sleeve ID X 42.86MM Sleeve OAL |
| Shock Absorber Body End Measuring Point | Center of Loop |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | Astro | 1985 to 2005 |
| GMC | Safari | 1985 to 2005 |
