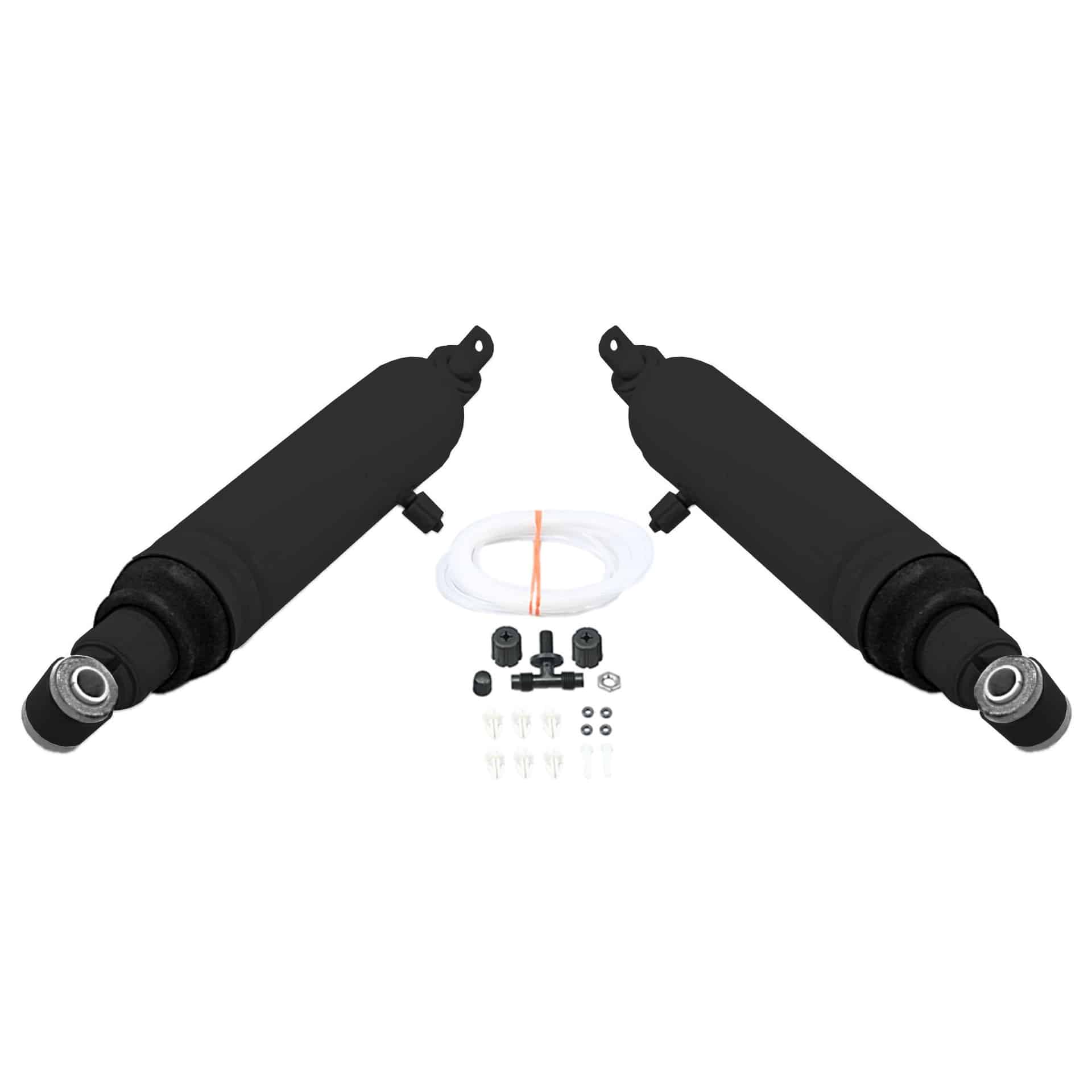

MON-MA759 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Monroe Max-Air MA759 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet S10
Features:
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Lower Mount Type | Loop Bushing and Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL |
| Compressed Length | 14.625 |
| Compressed Length | 371.5 |
| Extended Length | 24 |
| Extended Length | 609.6 |
| Travel Length | 9.375 |
| Travel Length | 238.1 |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | Yes |
| Includes Bump Stop | Yes |
| Body End Code | LS47 |
| Upper Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center) |
| Dust Shield Material | Rubber |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Hydraulic Lockout | No |
| Part Description | Air Shock Absorber |
| Parts Pack(s) | None |
| Upper Mount Code | XP7 |
Vehicle Applications:
| Make | Model | Years |
| Chevrolet | Blazer | 1995 to 2005 |
| Chevrolet | S10 Blazer | 1983 to 1994 |
| Chevrolet | S10 | 1982 to 2004 |
| GMC | Jimmy | 1992 to 2005 |
| GMC | S15 Jimmy | 1983 to 1991 |
| GMC | S15 | 1982 to 1990 |
| GMC | Sonoma | 1991 to 2004 |
| GMC | Syclone | 1991 to 1991 |
| GMC | Typhoon | 1992 to 1993 |
| Isuzu | Hombre | 1996 to 2000 |
| Oldsmobile | Bravada | 1991 to 2001 |
