MON-MA762 Max-Air Air Adjustable Air Shock Absorber Pack of 2

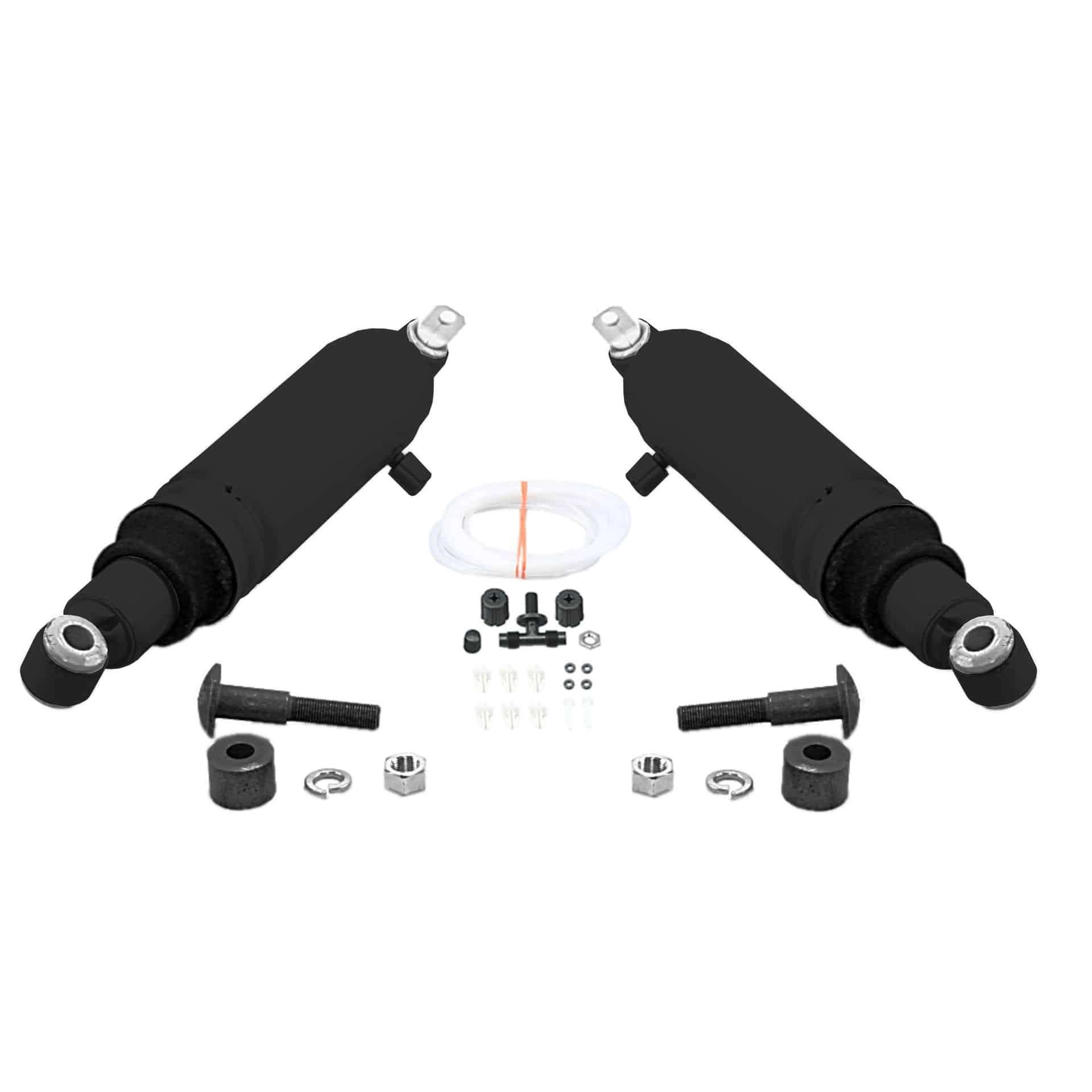

Monroe Max-Air MA762 Air Adjustable Air Shock Absorber Pack of 2 for Chevrolet Chevelle
Features:
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- BUILT TO LAST — Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- EXCEPTIONAL HANDLING — Full-displaced valving on compression and extension cycles for a smooth ride
- EASY TO ADJUST — Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- MAINTAIN RIDE HEIGHT UNDER LOAD — Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner’s manual)
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner’s manual.)
Attributes:
| Upper Mount Type | Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center) |
| Dust Shield Material | Rubber |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Hydraulic Lockout | No |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount – 1/2″ Stud Diameter X 1 1/2″ Stud Length (Center of Loop to Frame) |
| Part Description | Air Shock Absorber |
| Travel Length | 203.2 |
| Travel Length | 8 |
| Extended Length | 523.9 |
| Extended Length | 20.625 |
| Compressed Length | 320.7 |
| Compressed Length | 12.625 |
| Upper Mount Code | XP7 |
| Body End Code | L1/CP4 |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | No |
| Dust Shield Included | Yes |
| Parts Pack(s) | (2) P00072 |
Vehicle Applications:
| Make | Model | Years |
| Buick | Century | 1973 to 1977 |
| Buick | Skylark | 1968 to 1972 |
| Buick | Special | 1968 to 1969 |
| Buick | Sportwagon | 1970 to 1972 |
| Chevrolet | Chevelle | 1968 to 1973 |
| Chevrolet | El Camino | 1968 to 1977 |
| Chevrolet | Malibu | 1973 to 1977 |
| Chevrolet | Monte Carlo | 1970 to 1972 |
| GMC | Sprint | 1971 to 1977 |
| Oldsmobile | Cutlass Supreme | 1968 to 1977 |
| Oldsmobile | Cutlass | 1968 to 1977 |
| Oldsmobile | F85 | 1968 to 1972 |
| Oldsmobile | Vista Cruiser | 1973 to 1975 |
| Pontiac | GTO | 1968 to 1972 |
| Pontiac | Grand LeMans | 1975 to 1977 |
| Pontiac | Grand Prix | 1969 to 1972 |
| Pontiac | LeMans | 1970 to 1977 |
| Pontiac | Tempest | 1968 to 1970 |
| Pontiac | Ventura | 1974 to 1974 |
